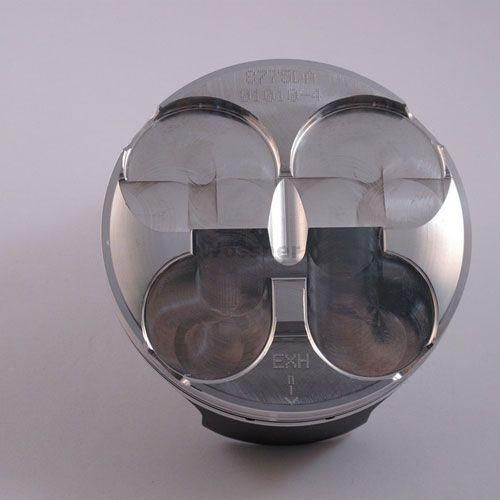

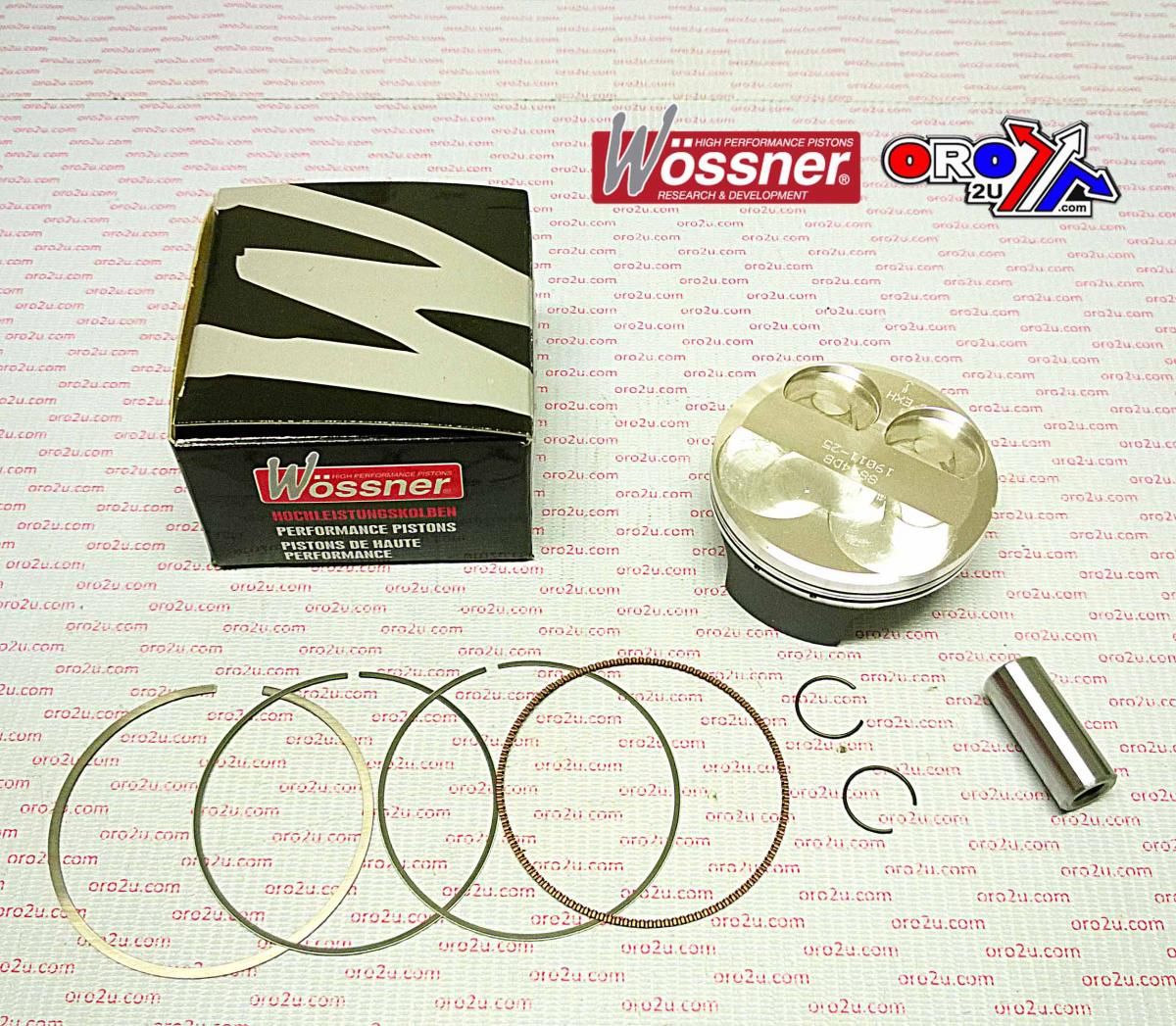

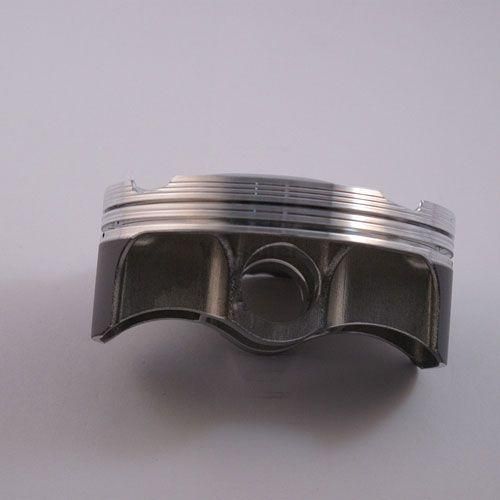

PISTON KIT 11-14 KX250F 77mm A, 8814DA WOSSNER KAWASAKI 13001-0125

This Wossner forged piston kit features a 77mm bore size (76.96mm actual) and is a standard replacement for Kawasaki KX250F models from 2011 to 2014. Manufactured in Germany, the piston is designed with a two-ring configuration and an elliptical shape that promotes even load distribution under thermal expansion. It ensures effective heat transfer and long-term durability in high-performance environments.

Features

• Forged piston construction with two-ring design for durability and strength

• Elliptical profile ensures even thrust load distribution during operation

• Engineered for efficient heat transfer from combustion chamber to cylinder walls

• Manufactured in Germany

Specifications

• Bore Size: 77mm (actual 76.96mm)

• Displacement: 249 cm³

• Stroke: 53.60 mm

• Clearance: 0.04 mm

• Compression Ratio (Wossner): OEM

• Compression Ratio (OEM): 13.50:1

• Dome Volume: -2.80 cm³

• Compression Height: 19.60 mm

• Lock Part Number: CW16

• Pin Part Number: WP070

• Ring Set Part Number: 770XAS-2

Cross-Reference OEM Part Numbers

• 13001-0125

• 40019M07700

Vehicle Fitments

• 2011 Kawasaki KX250F

• 2012 Kawasaki KX250F

• 2013 Kawasaki KX250F

• 2014 Kawasaki KX250F
