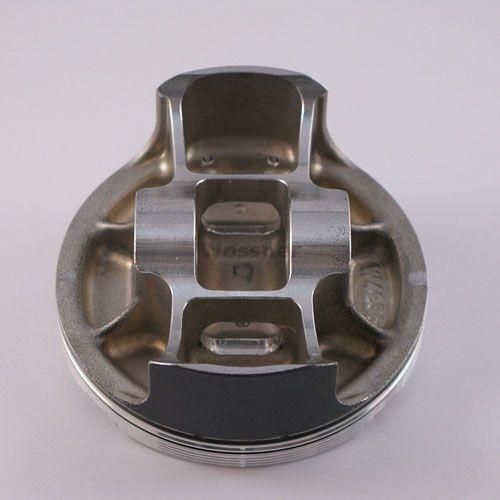

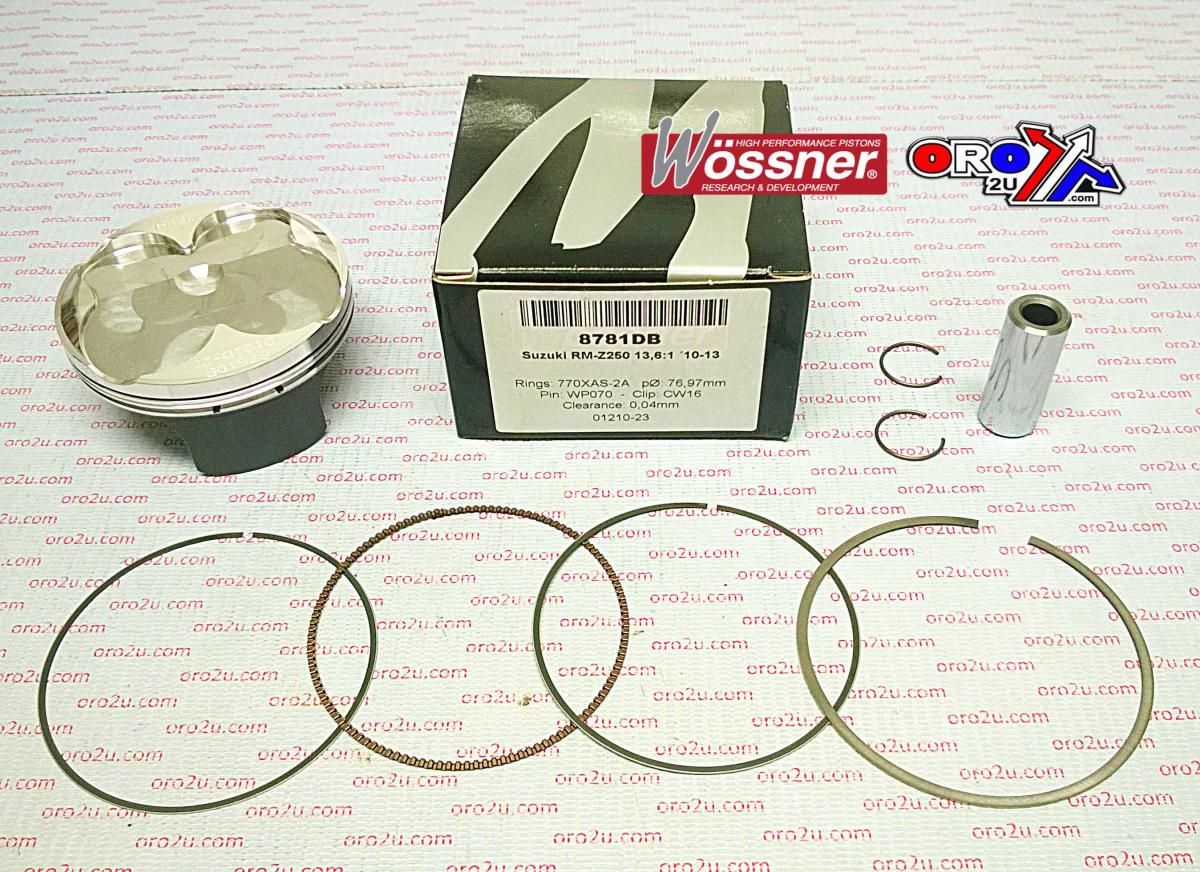

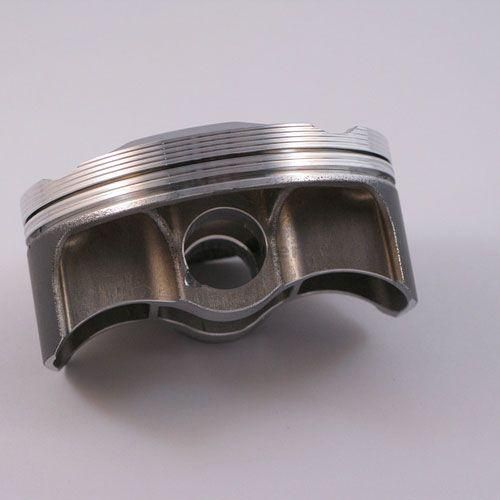

PISTON KIT 10-22 RMZ250 77mm B, WOSSNER SUZUKI 8781DB

Piston kit 77.01mm BORE 76.97 Wossner 8781DB (+0.01MM)

SUZUKI
RX-Z250 2010 – 2022,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W951.B.WO (oro2u.com) Wossner Piston Suzuki RM-Z250 77.01 mm Bore (PN# 8781DB)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-S
RM-Z250 2010-13

Display (cm3) 249
Hub stroke (mm) 53.80
Clearance (mm) 0.04
Wossner compression Ratio: 13.60:1
OEM Compression ratio: 13.50:1
Dome volume (cm3) -2.60
Compression height (mm) 19.60
Theorectical weight (G)
