| Size | 96mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 96.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

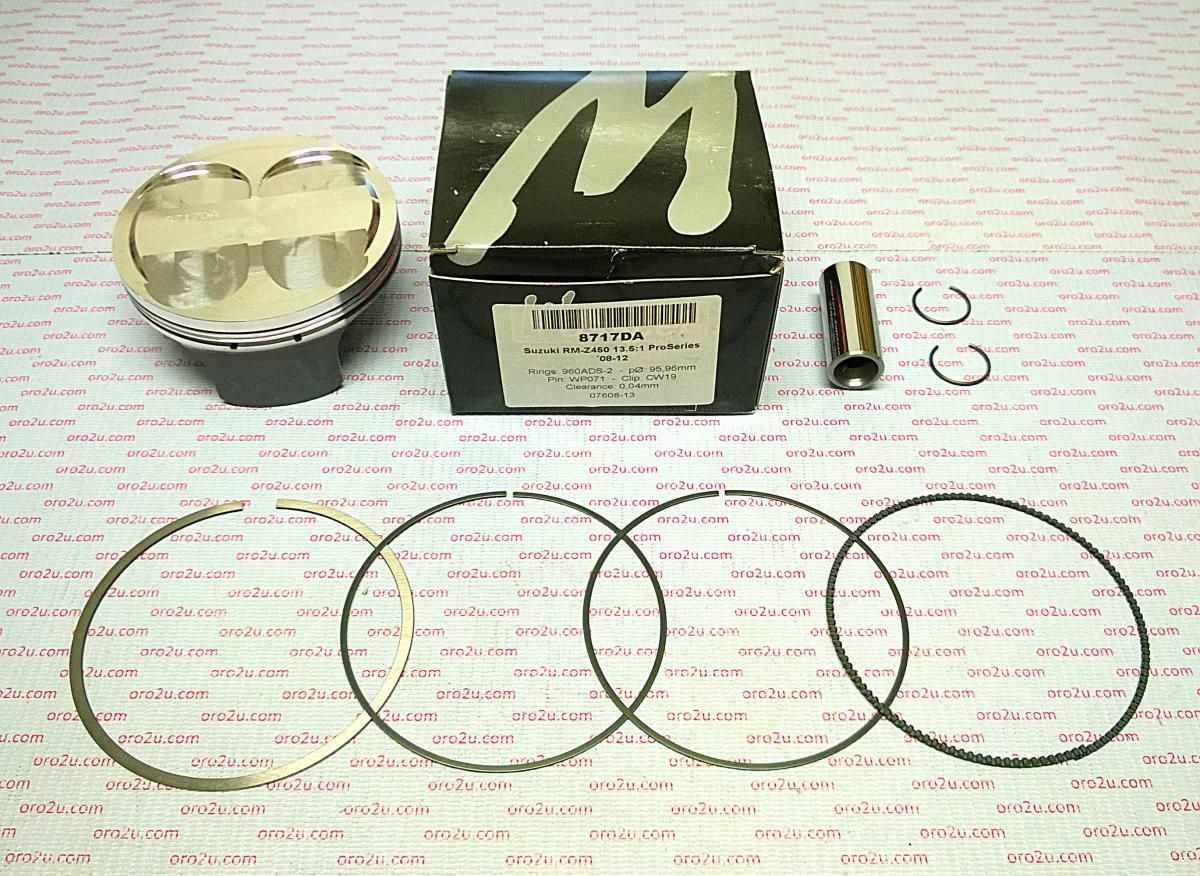

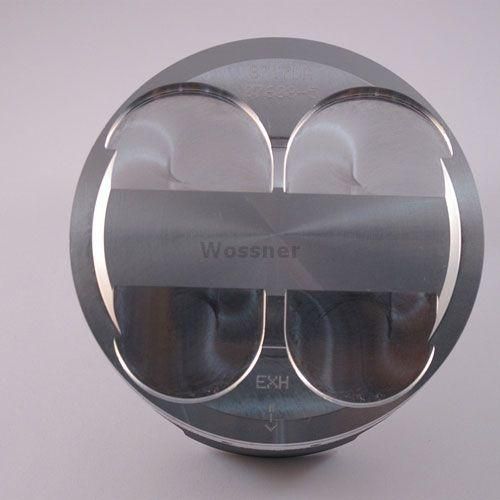

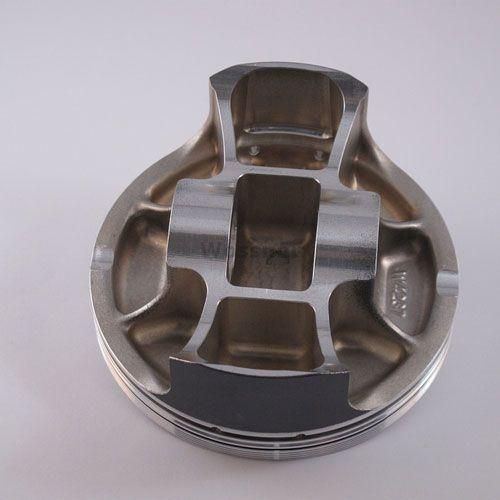

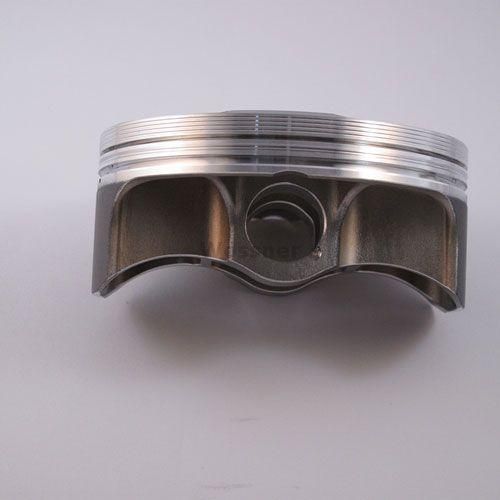

PISTON KIT 08-12 RMZ450 96 HC, FORGED WOSSNER 8717DB
Wossner forged high-compression piston kit with a 96.01mm bore (95.97mm) for Suzuki RM-Z450 (2008-2011). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.
Features
- High-compression forged piston for increased performance
- Two-ring design for reduced friction and improved efficiency
- Optimized heat transfer for enhanced durability
- Elliptical design ensures uniform bearing surface under heat expansion
- Even thrust load distribution to prevent piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 96.01mm (95.97mm)
- Compression Ratio: 13.5:1
- Part Number: 8717DB
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4013
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.2:1
- OEM Compression Ratio: 12.2:1
- Dome Volume: +3.40 cm³
- Compression Height: 23.10mm
Vehicle Fitments
- Suzuki RM-Z450 (2008-2011)
