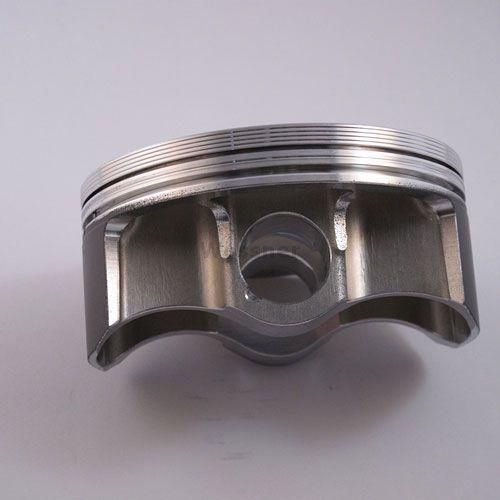

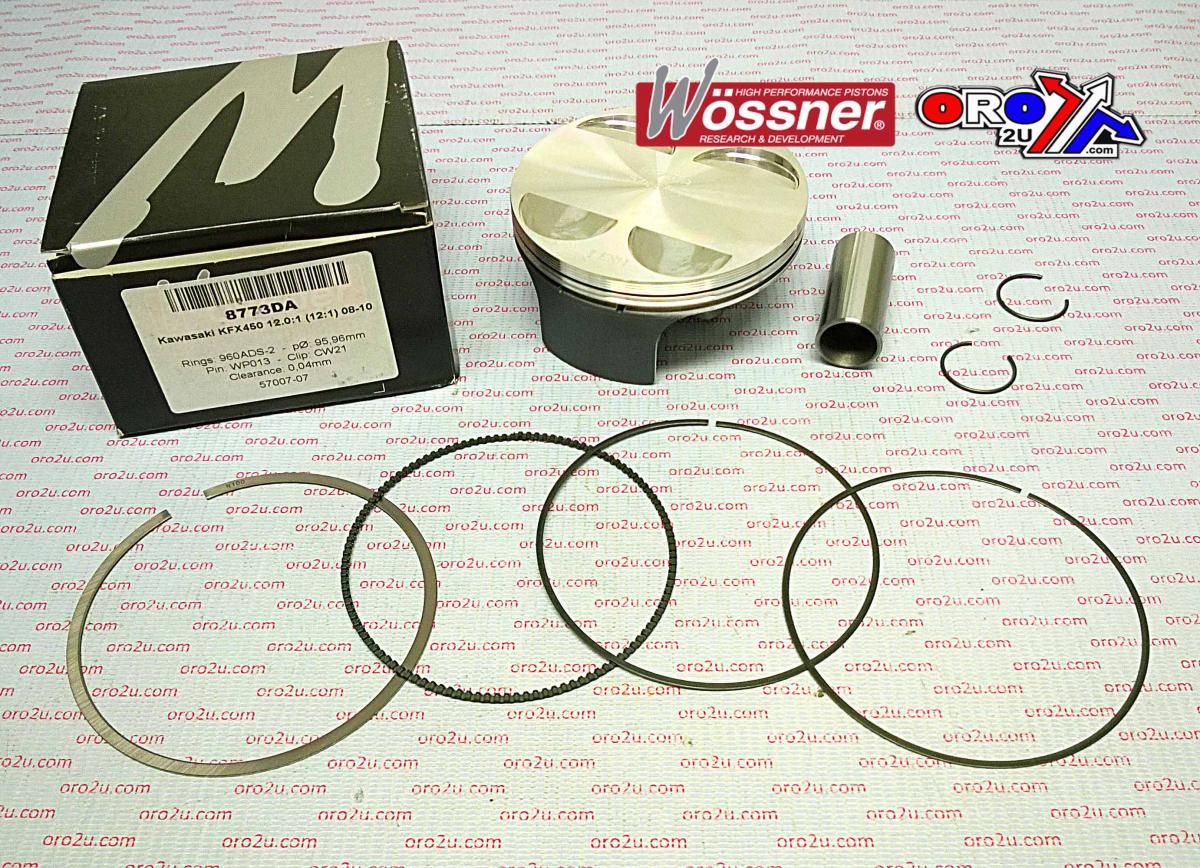

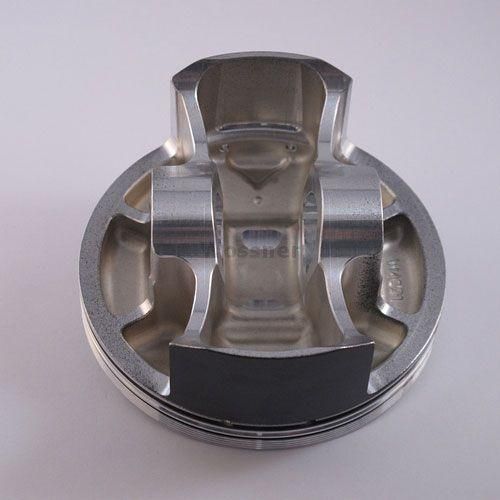

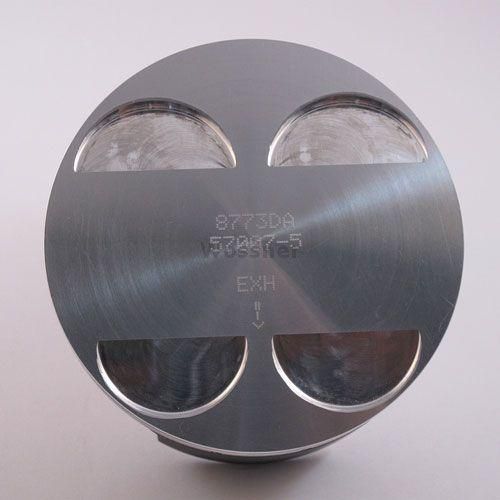

PISTON KIT 08-12 KFX450 96mm, WOSSNER 8773DA KAWASAKI 13001-0079

Wossner forged pistons provide high strength and thermal efficiency, using an elliptical design to ensure uniform expansion and effective load distribution under operating temperatures. This piston kit features a 96.00mm bore (95.96mm actual size) and is built for Kawasaki KFX450R ATVs from 2008 to 2015.

Features

• Forged construction for durability and strength
• Elliptical design supports even heat expansion
• Designed for efficient heat transfer
• Made in Germany

Specifications

• Bore Size: 96.00mm (actual 95.96mm)
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM (12.50:1)
• Dome Volume: -2.10 cm³
• Compression Height: 26.10mm

Cross-Reference OEM Part Numbers

• 13001-0079
• 4973M09600

Vehicle Fitments

• Kawasaki KFX450R 2008–2015
