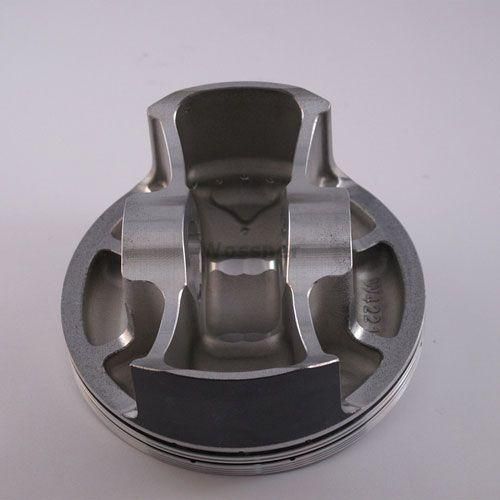

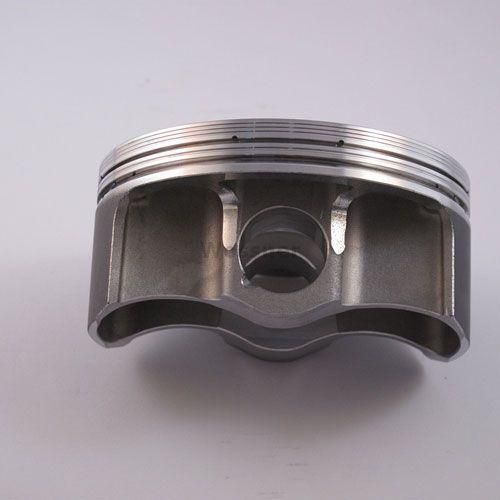

PISTON KIT 08-12 KFX450 96.00, FORGED WOSSNER 8709DA

Wossner Pro Series high-compression forged piston kit designed for Kawasaki KFX450R (2008-2015). Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• High-compression Pro Series forged piston
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 96.00mm
• Actual Bore Diameter: 95.96mm
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 14.00:1
• OEM Compression Ratio: 12.50:1
• Dome Volume: +2.10 cm³
• Compression Height: 26.40mm
• Lock Part Number: CW21
• Pin Part Number: WP051
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4019

Vehicle Fitments

• Kawasaki KFX450R (2008-2015)
