| Size | 76mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 76.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

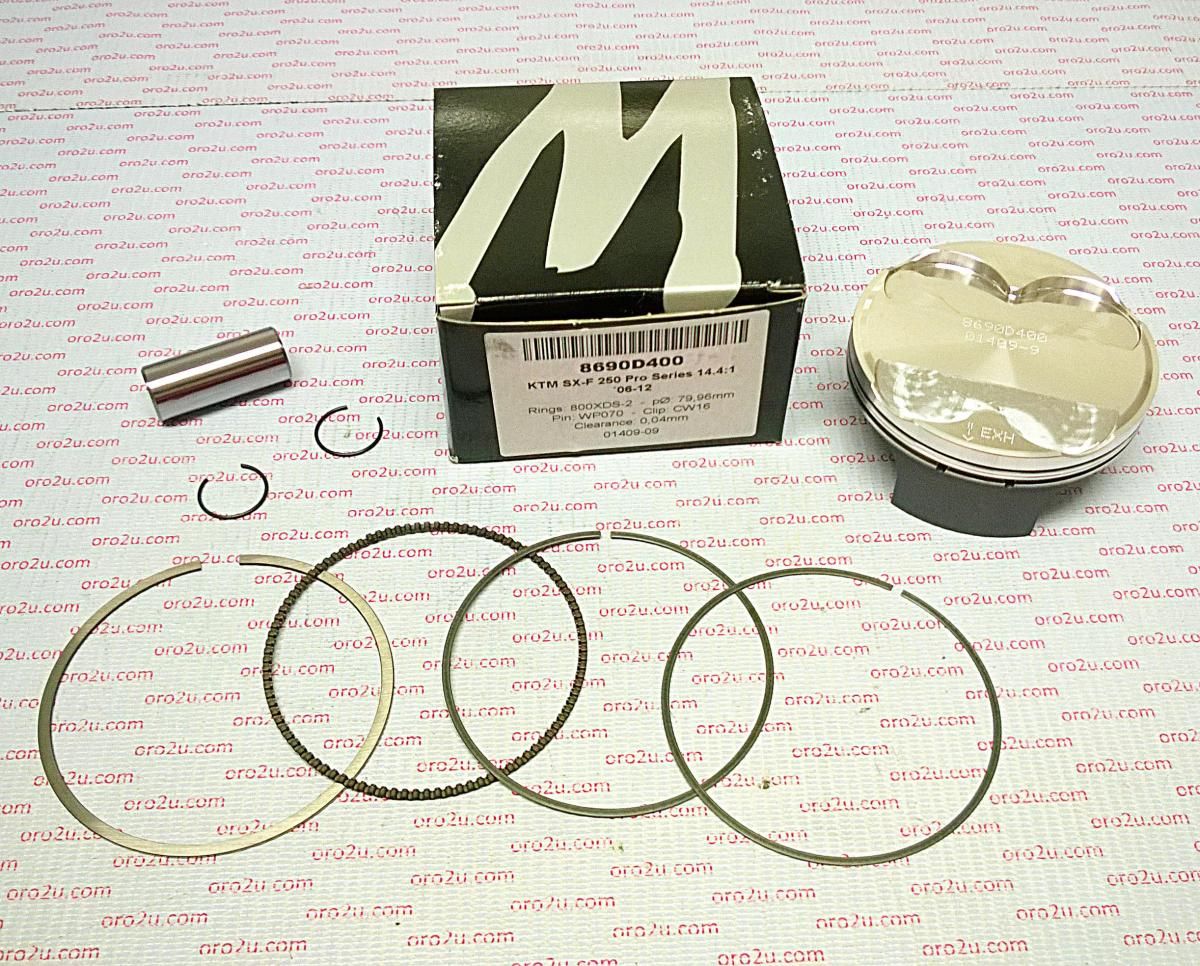

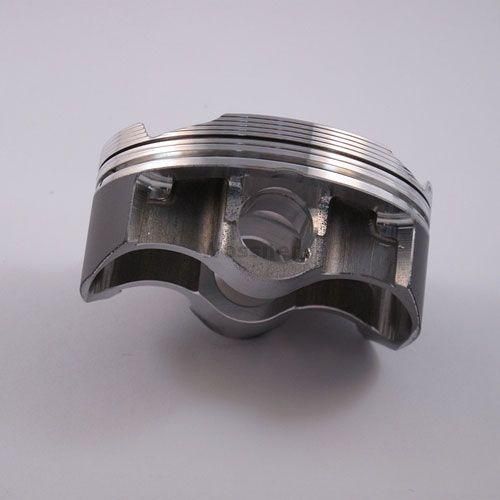

PISTON KIT 06-12 SXF250 76 HC, WOSSNER 8690DB KTM SX-F
Wossner forged piston kit designed for high-performance applications, offering superior strength and optimized heat transfer. The elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for precision and durability.
Features
- Forged piston for enhanced strength and durability
- Optimized heat transfer to cylinder walls for improved performance
- Elliptical design for even thrust load distribution
- Manufactured in Germany
Specifications
- Bore Size: 76.01mm
- Actual Bore: 75.97mm
- Display (cm³): 249
- Stroke (mm): 54.80
- Clearance (mm): 0.04
- Wossner Compression Ratio: 14.40:1
- OEM Compression Ratio: 13.20:1
- Dome Volume (cm³): +2.30
- Compression Height (mm): 19.50
- Theoretical Weight: N/A
- Lock Part Number: CW16
- Pin Part Number: WP059
- Ring Set Part Number: 760XAS
- Rod Part Number: P4003
- Part Number: 56-W4734+00B.WO
Vehicle Fitments
- KTM SX-F 250 2006-2010
- Husaberg FE 250 2013
