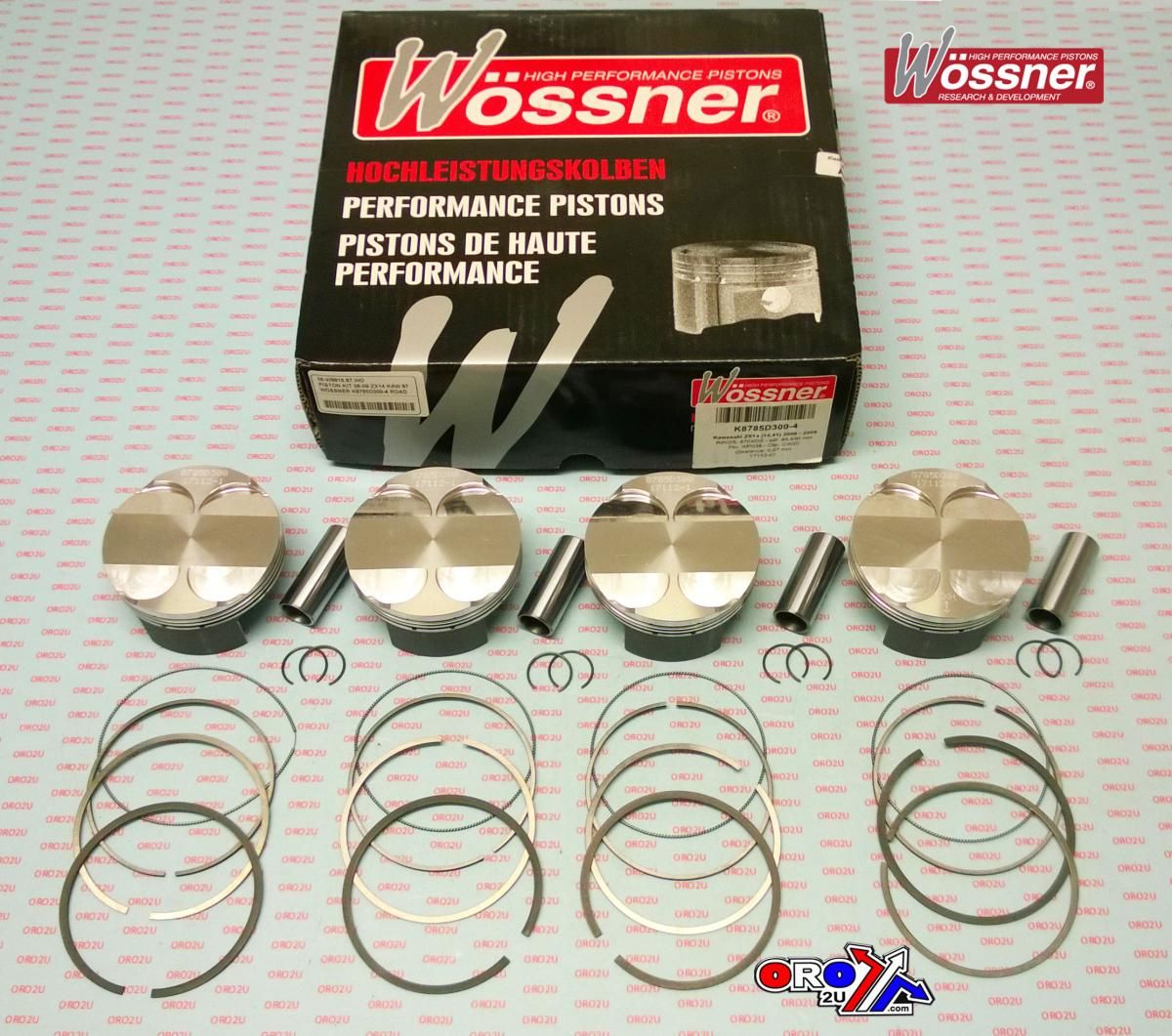

PISTON KIT 06-09 ZX14 T KAW, WOSSNER K8780D300-4 ROAD, KAWASAKI

Piston kit 86mm BORE 85.93 Wossner K8780D300-4   (+3mm)

KAWASAKI
ZX14 2006 – 2009,


• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Hard teflon skirt coating for perfect fit and conformability to your cylinder bore.

Part No. 56-W9816.87.WOT (oro2u.com)
KAWASAKI 2006 – 2009 ZX14 TURBO K8780D300-4 WOSSNER PISTON, 87(mm),

Display (cm3) 1352
Hub stroke (mm) 61.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -18.00
Compression height (mm) 24.50
Theorectical weight (G)
