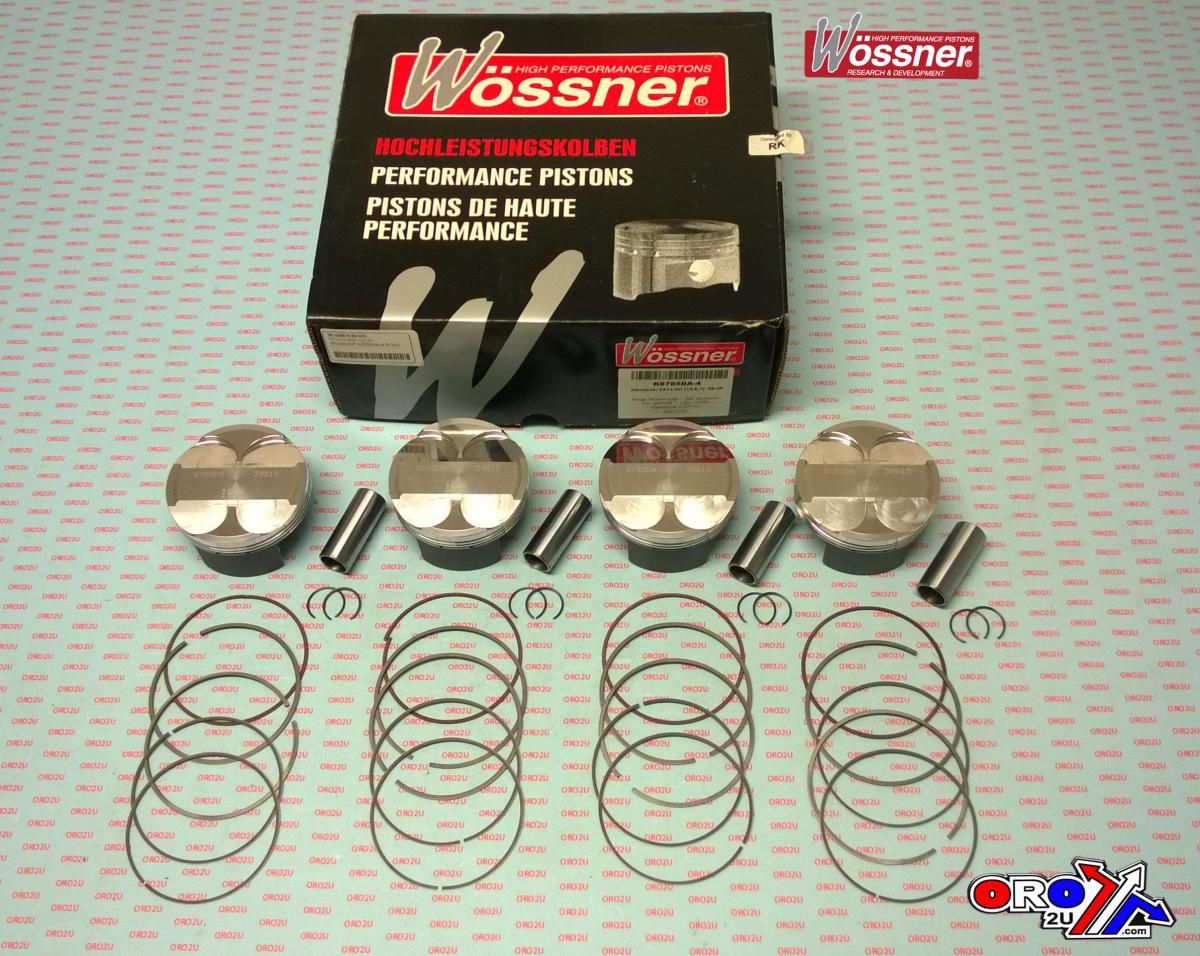

PISTON KIT 06-09 ZX14 KAW 84, WOSSNER K8785DA-4 ROAD, KAWASAKI

This Wossner piston kit with an 84mm bore is a standard replacement for Kawasaki ZX14 models from 2006 to 2009, including Pro Series configurations. Forged in Germany, the pistons are engineered for high strength and optimal heat dissipation. Featuring a high-compression flat top design, the elliptical profile ensures even load distribution and reduces the risk of piston collapse during high-performance use.

Features

• Forged construction for maximum durability and strength

• Designed for efficient combustion heat transfer to cylinder walls

• Elliptical shape maintains uniform bearing surface under heat expansion

• Evenly distributes thrust loads to prevent localised pressure points

• High-compression flat top design

• Manufactured in Germany

Specifications

• Bore: 84mm (Standard)

• Actual bore: 83.93mm

• Display volume: 1198 / 1257 cm³

• Stroke: 61.00mm

• Clearance: 0.07mm

• Wossner compression ratio: 13.50:1

• OEM compression ratio: 12.00:1

• Dome volume: -2.40 cm³

• Compression height: 24.50mm

Cross-Reference OEM Part Numbers

• 56-W9816.84.WO

• K8785DA-4

Vehicle Fitments

• Kawasaki ZX14 (2006–2009) (Pro Series)
