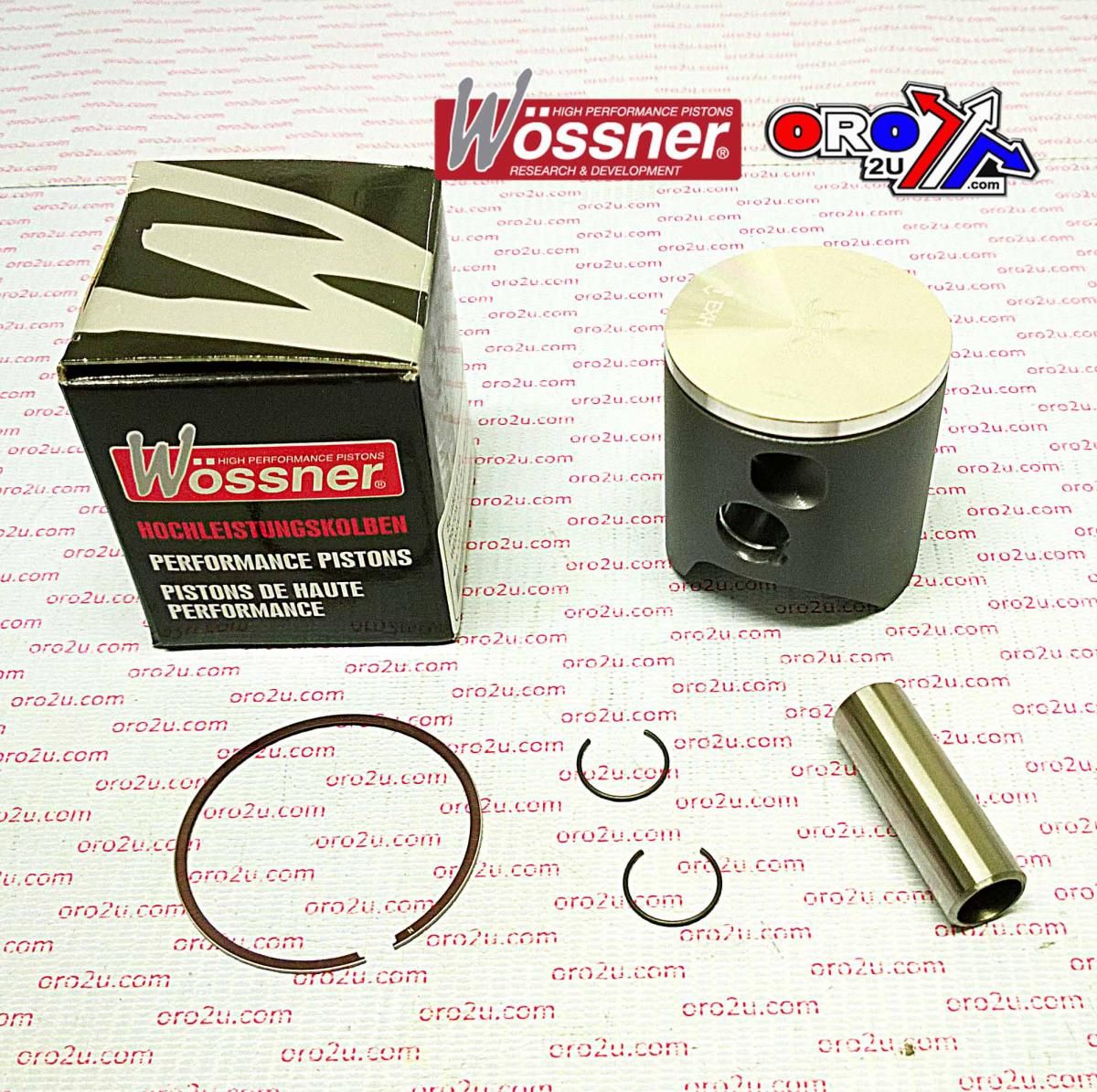

PISTON KIT 04-10 RM125 54.00 C, WOSSNER 8098DC SUZUKI MX

The Wossner 8098DC piston kit is a +0.02 oversize forged piston designed for Suzuki RM125 models from 2004 to 2012. With a 54.02mm bore and 53.97mm piston diameter, this piston offers increased durability and efficient heat dissipation under the stresses of two-stroke operation. Its elliptical geometry allows for uniform bearing surface contact during thermal expansion, reducing localised stress and preventing piston deformation. This high-precision piston is manufactured in Germany to exacting performance standards.

Features

• Forged construction enhances strength and long-term reliability

• Engineered for optimal heat transfer from combustion to cylinder walls

• Elliptical design distributes pressure evenly, minimising piston wear and collapse

• Precision-manufactured in Germany for consistent performance

Specifications

• Bore: 54.02 mm

• Piston Diameter: 53.97 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.50 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5400

• Rod Part Number: P2016

Vehicle Fitments

• Suzuki RM125 2004 – 2012
