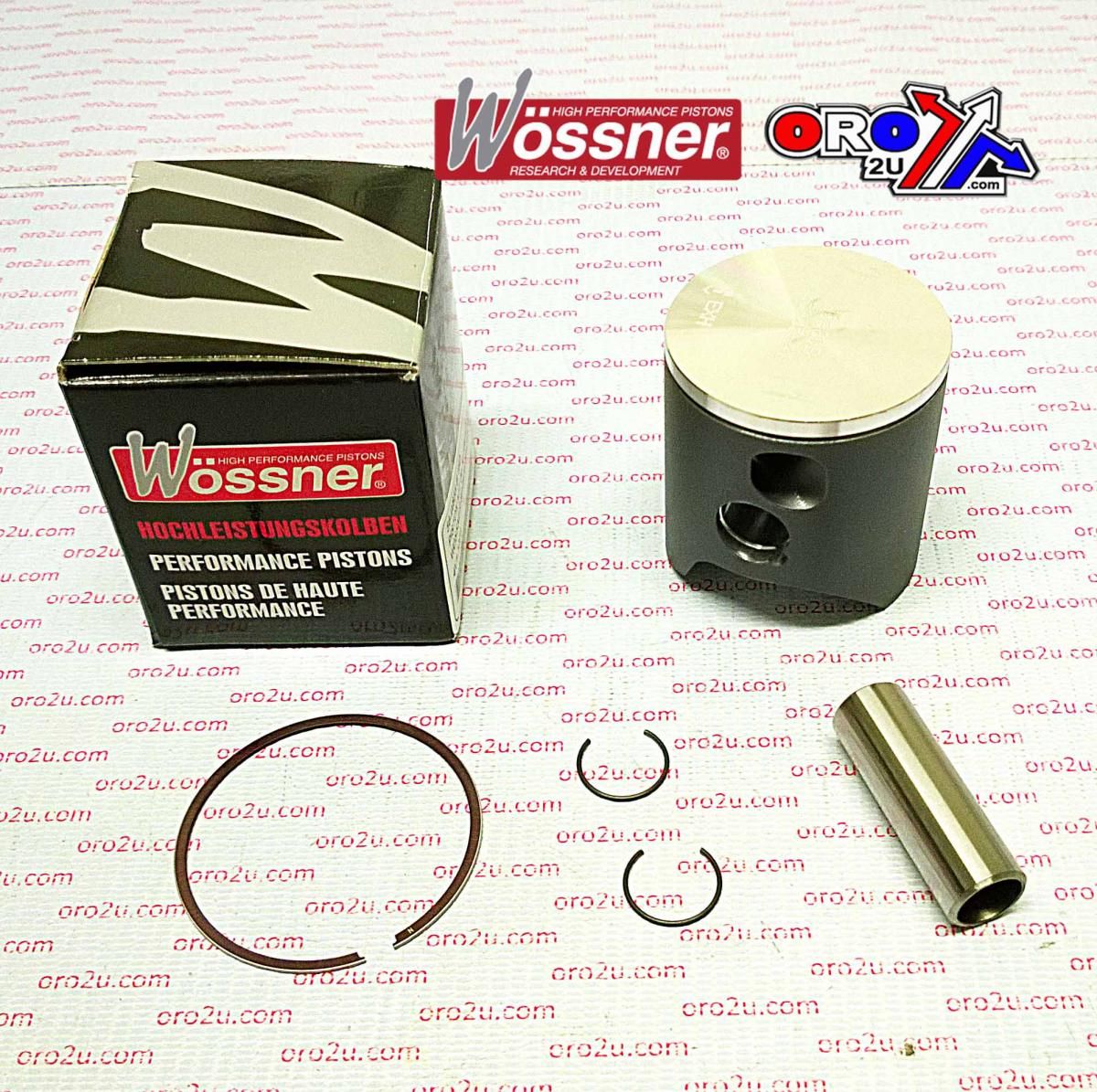

PISTON KIT 04-10 RM125 54.00 A, WOSSNER 8098DA SUZUKI MX 12110-36E31-0F0

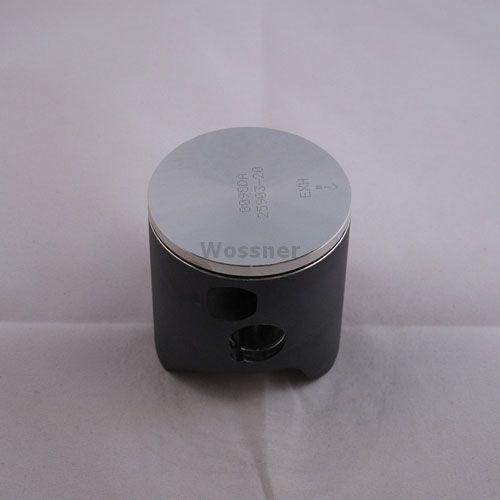

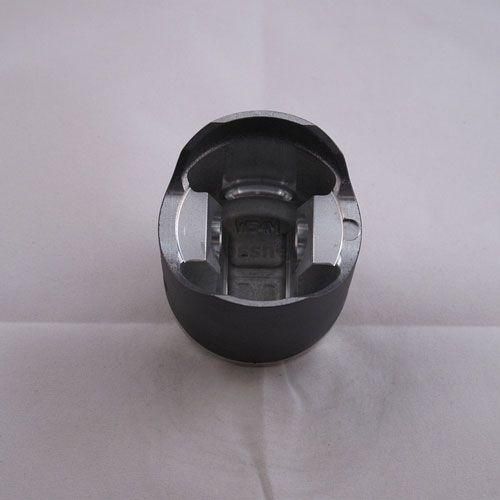

The Wossner 8098DA piston kit is a standard-size forged piston specifically designed for Suzuki RM125 models from 2004 to 2012. With a 54.00mm bore and a 53.95mm piston diameter, this piston delivers high strength and consistent thermal performance for two-stroke engines. Its elliptical shape enables even expansion and load distribution, minimising wear and preventing piston collapse. Precision-manufactured in Germany, this component ensures long-lasting reliability and performance under demanding conditions.

Features

• Forged piston construction for superior durability and strength

• Engineered for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical design distributes thrust loads evenly to reduce localised stress

• Manufactured in Germany with high-precision standards

Specifications

• Bore: 54.00 mm

• Piston Diameter: 53.95 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.50 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5400

• Rod Part Number: P2016

Cross-Reference OEM Part Numbers

• 12110-36E31-0F0

• 09104823

• 835M05400

• 12101-36821

• 12110-36F00-0F0

• 12141-36F00

• 12151-01B41

• 09381-15001

Vehicle Fitments

• Suzuki RM125 2004 – 2012
