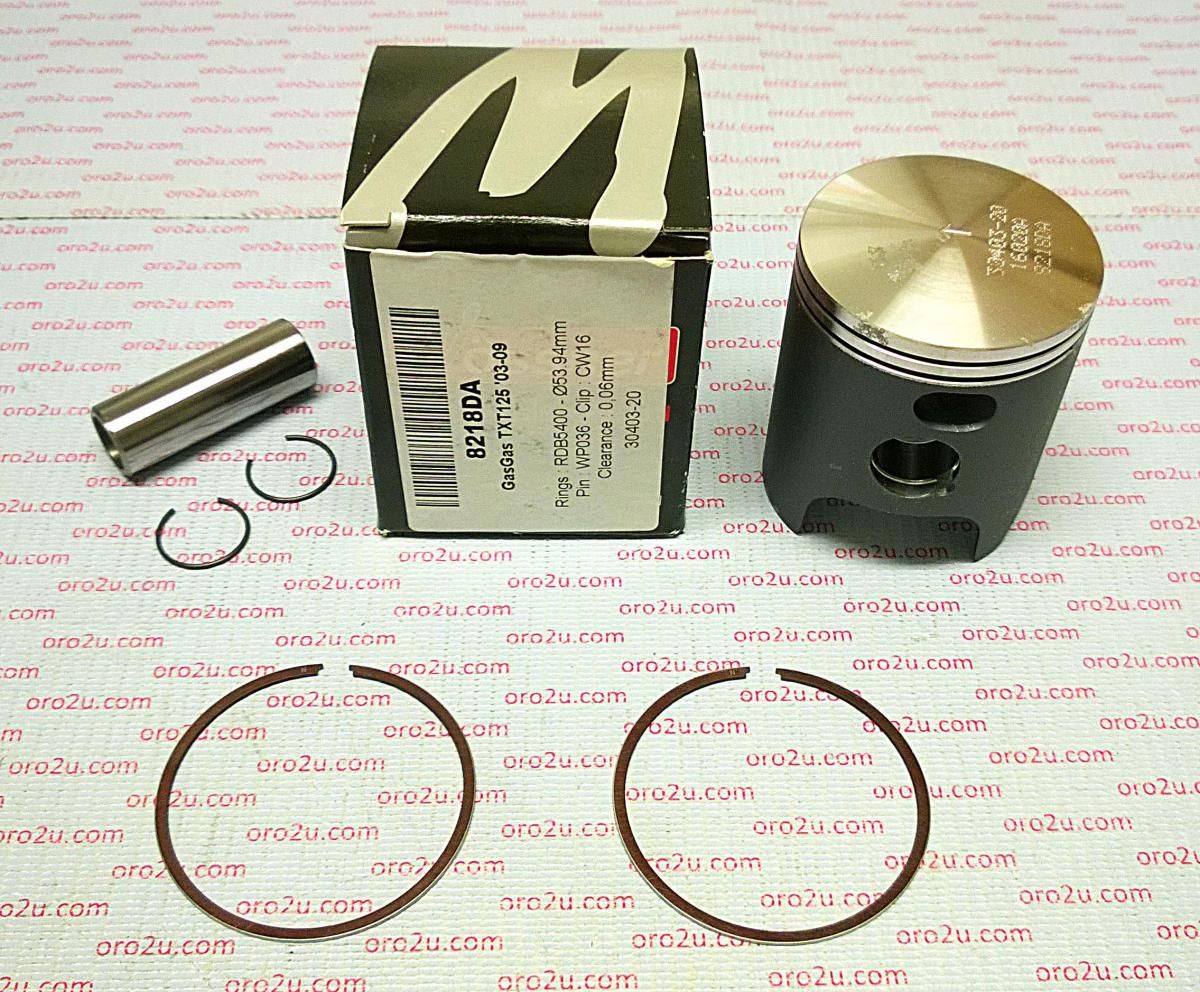

PISTON KIT 03-09 TXT125 GASGAS, FORGED WOSSNER 8218DA

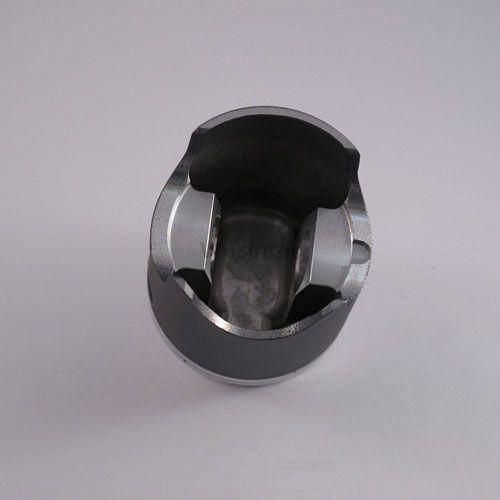

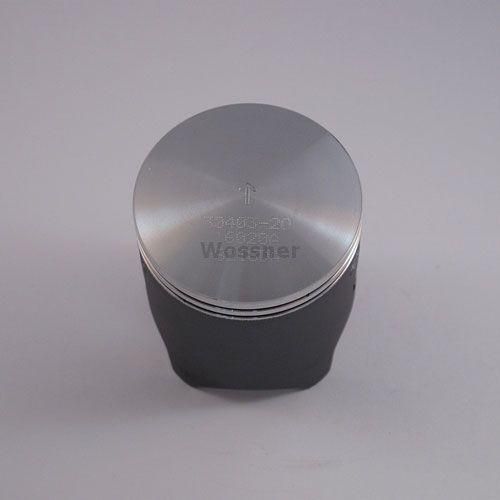

Wossner forged piston kit with a 54.00mm bore and 53.95mm diameter, designed for Gas Gas TXT 125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 54.00mm
• Diameter: 53.95mm
• Display (cm³): 124
• Stroke (mm): 54.50
• Clearance (mm): 0.05
• Compression Ratio: 2-Stroke
• Compression Height (mm): 29.50

Cross-Reference OEM Part Numbers

• Wossner Piston Gas Gas TXT (PN# 8218DA)
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5400 x 2

Vehicle Fitments

• Gas Gas TXT 125 (2003-2009)
