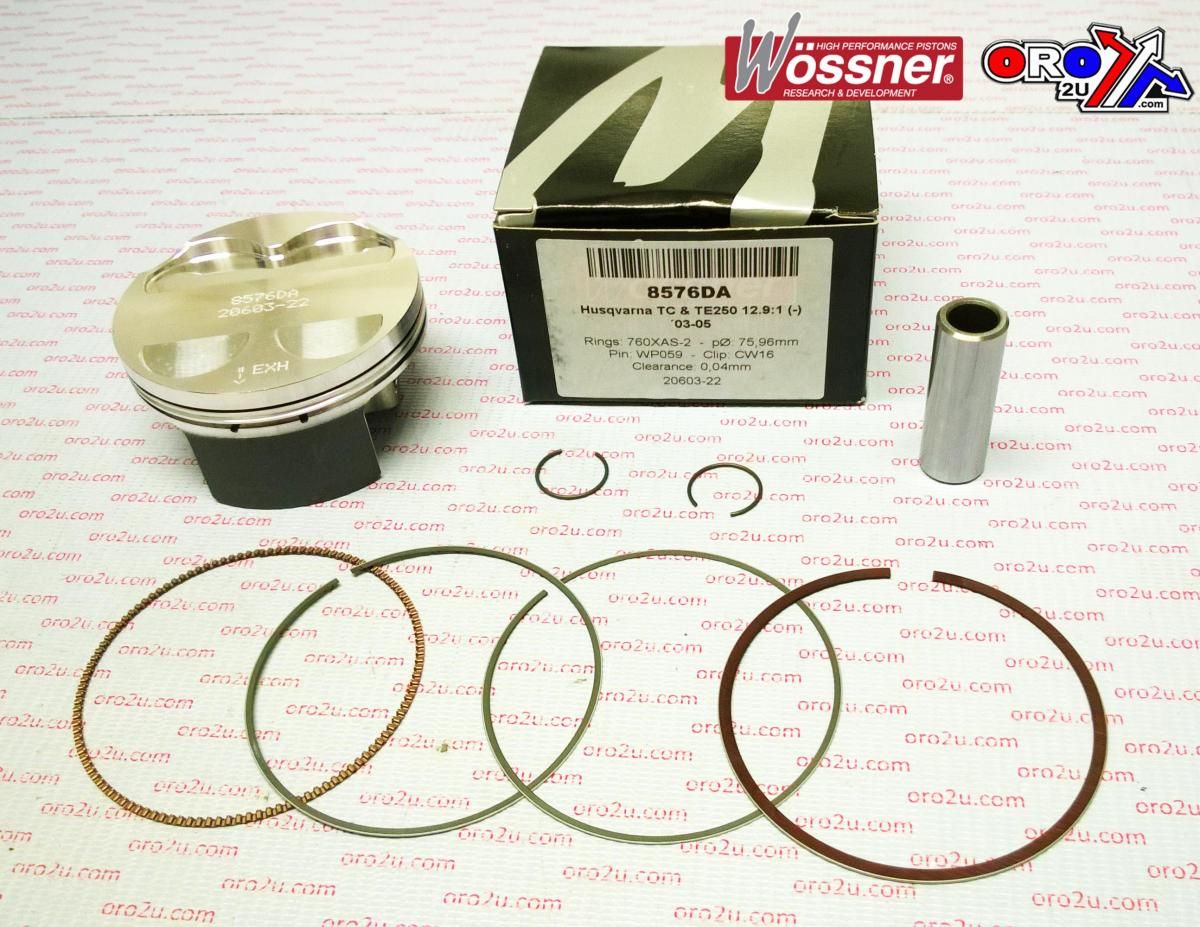

PISTON KIT 02-05 TC TE 250 76, WOSSNER 8576DC HUSQVARNA

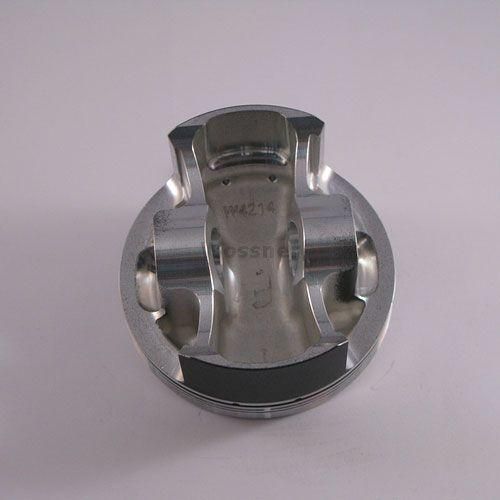

Wossner 76.00mm (75.98mm) forged piston kit is designed for Husqvarna TE 250 and TC 610 models from 2002 to 2005. Engineered for strength and precision, this piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. It features a hard Teflon skirt coating for improved fit and conformability to the cylinder bore. Manufactured in Germany, it meets high-quality standards for reliable performance.

Features

• Wossner forged piston for superior strength and durability
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for uniform bearing surface and reduced localized pressure
• Hard Teflon skirt coating for enhanced fit and conformability
• Precision-engineered to prevent piston collapse

Specifications

• Bore Size: 76.00mm (75.98mm)
• Oversize: +0.02mm
• Displacement: 249cc
• Stroke: 55.00mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.50:1
• Dome Volume: -3.10cm³
• Compression Height: 23.50mm
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 760XAS
• Theoretical Weight: Not specified

Vehicle Fitments

• Husqvarna TE 250 (2002-2005)
• Husqvarna TC 610 (2002-2005)
