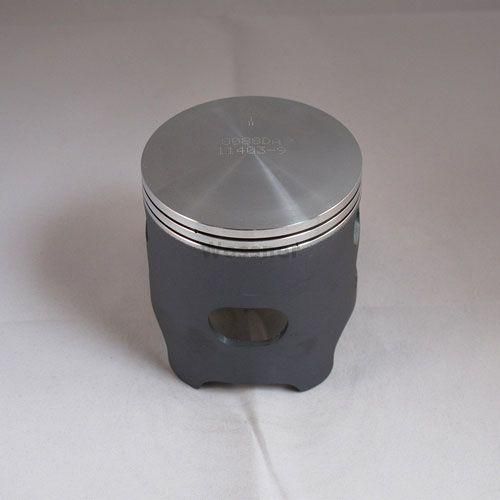

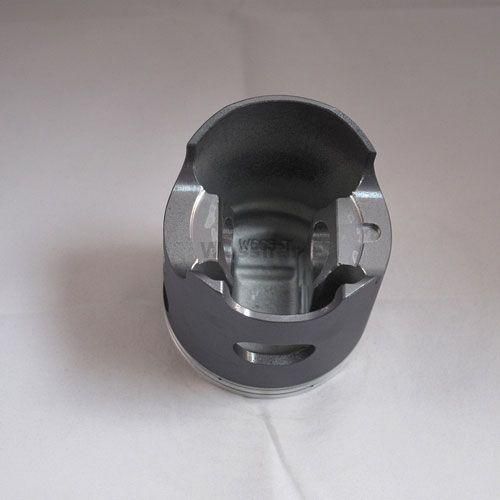

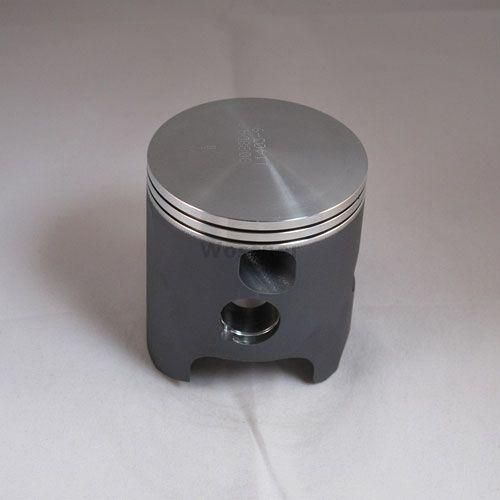

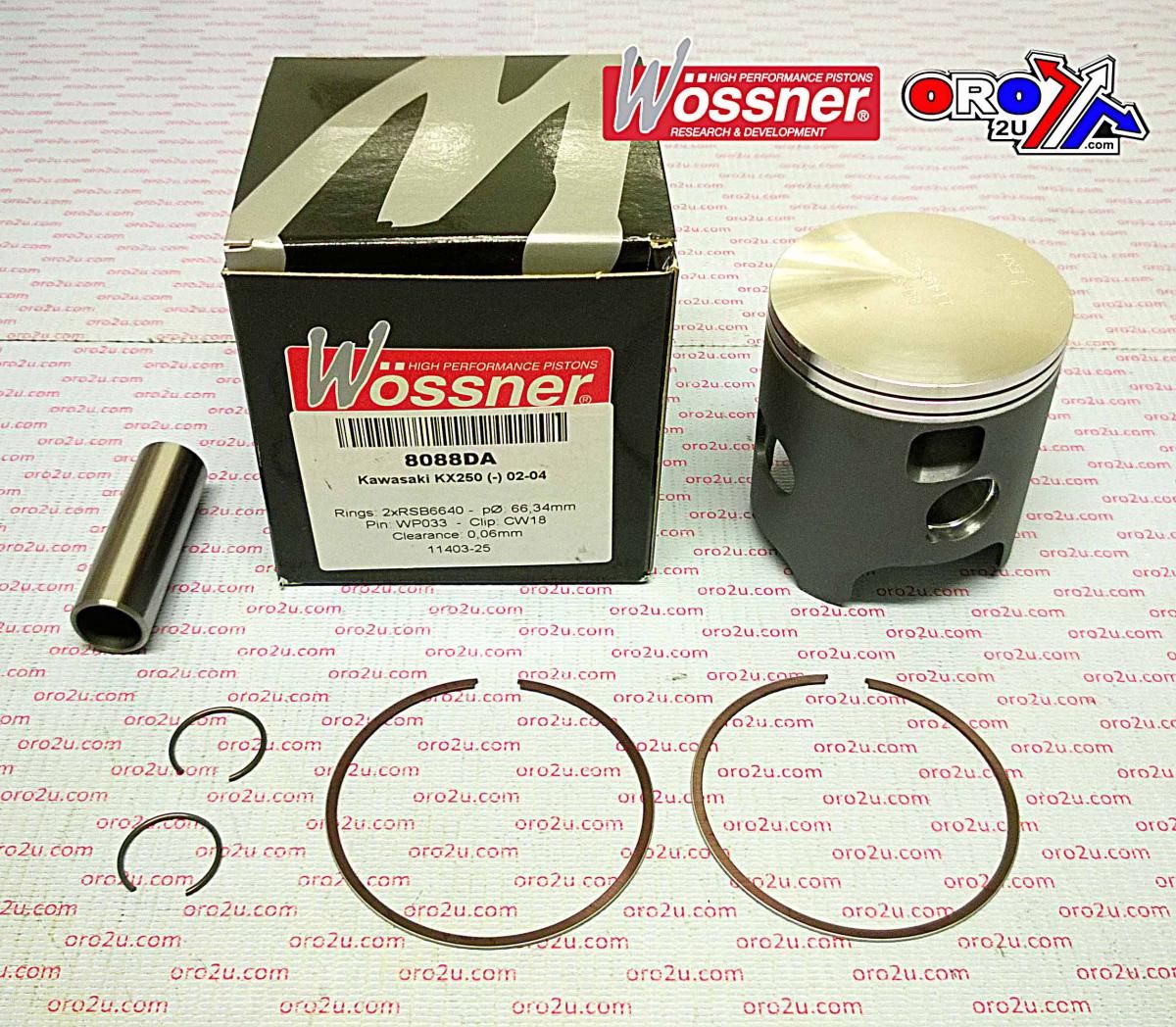

PISTON KIT 02-04 KX250 66.40 A, WOSSNER 8088DA KAWASAKI MX 13001-0013

This Wossner forged piston kit is specifically designed for the Kawasaki KX250 models from 2002 to 2004, offering superior strength and thermal efficiency. With a 66.40mm bore and precision-engineered components, it ensures reliable performance under high-stress conditions. Manufactured in Germany, this piston utilises advanced design features to optimise heat transfer and load distribution, making it an ideal replacement for original equipment.

Features

• Forged construction for enhanced strength and durability

• Optimised heat transfer from combustion chamber to cylinder walls

• Elliptical design reduces localised pressure and evenly distributes thrust loads

• Manufactured in Germany

Specifications

• Bore: 66.40mm

• Actual Bore: 66.34mm

• Engine Displacement: 249 cm³

• Stroke: 72.00mm

• Clearance: 0.06mm

• Compression Ratio: 2-stroke (Wossner and OEM)

• Compression Height: 37.00mm

• Lock Part Number: CW18

• Pin Part Number: WP033

• Ring Set Part Number: RSB6640 x 2

• Rod Part Number: P2022

Cross-Reference OEM Part Numbers

• 13001-0013

• 09104809

• 799M06640

Vehicle Fitments

• 2002 Kawasaki KX250

• 2003 Kawasaki KX250

• 2004 Kawasaki KX250
