PISTON KIT 01-04 YZF250 77.00, 8572DA WOSSNER 2-RING, 5NL-11631-10-00
£162.17
Brand: Wossner
Stock: 1
| Product Type | Pistons & Kits |
|---|---|
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 77.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

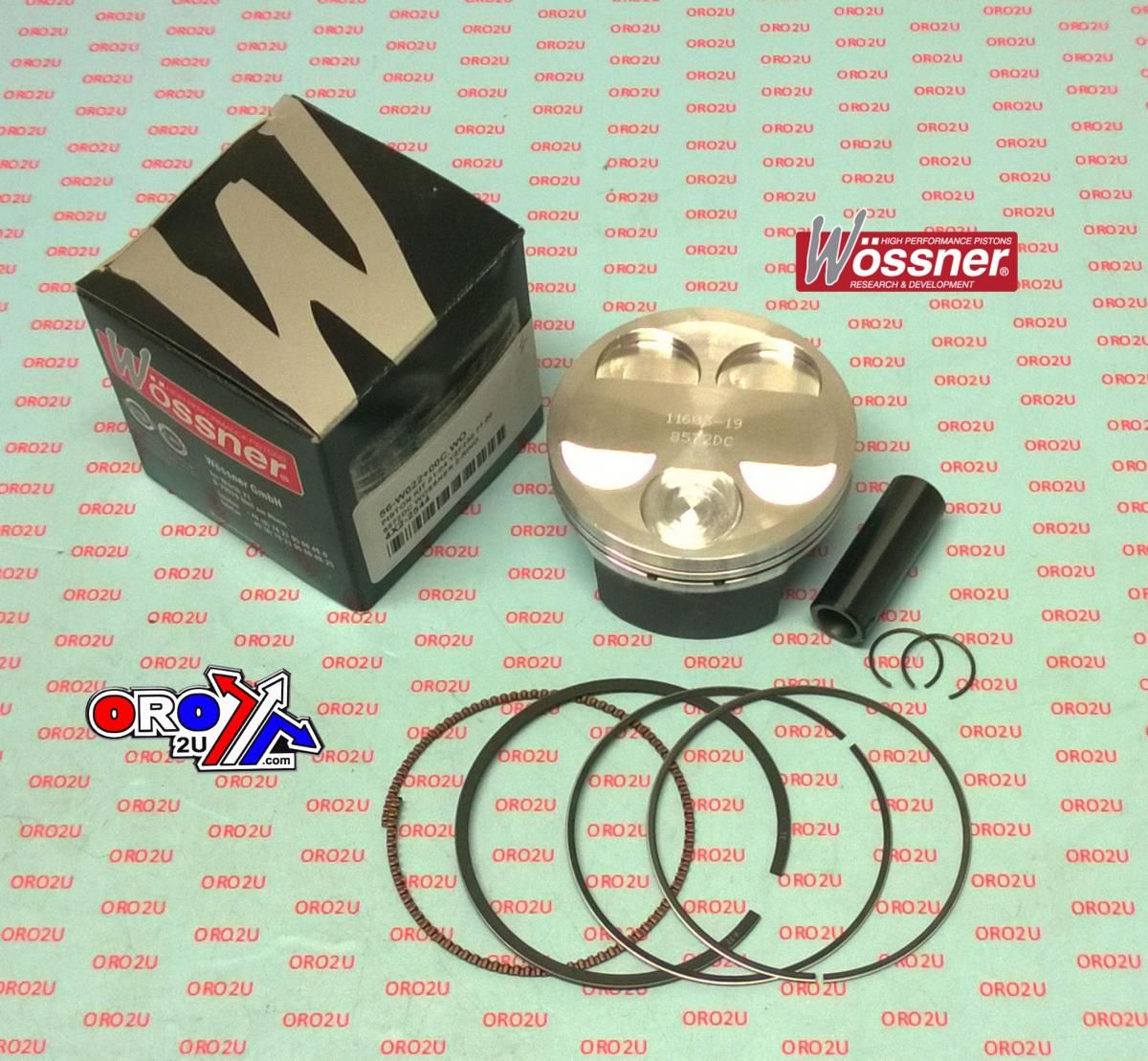

PISTON KIT 01-04 YZF250 77.00, 8572DA WOSSNER 2-RING, 5NL-11631-10-00
Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.
Features
- Forged construction for enhanced durability
- Optimized heat transfer for improved performance
- Elliptical design prevents localized pressure and piston collapse
- Pro Series design with a two-ring configuration for enhanced sealing and longevity
Specifications
- Bore: 76.96 mm
- Piston Size: 77.00 mm
- Displacement: 249 cm³
- Stroke: 53.60 mm
- Clearance: 0.04 mm
- Wossner Compression Ratio: 12.80:1
- OEM Compression Ratio: 12.50:1
- Dome Volume: -4.80 cm³
- Compression Height: 20.50 mm
Cross-Reference OEM Part Numbers
- Lock: CW16
- Pin: WP059
- Ring Set: 770XAS
- Rod: P4006 / P4005
- OEM Part Number: 5NL-11631-10-00
Vehicle Fitments
- Yamaha YZF250 (2001-2004)
- Yamaha WR250F (2001-2004)
