PISTON KIT 01-02 KX125 54.00 B, WOSSNER 8062DB KAWASAKI MX

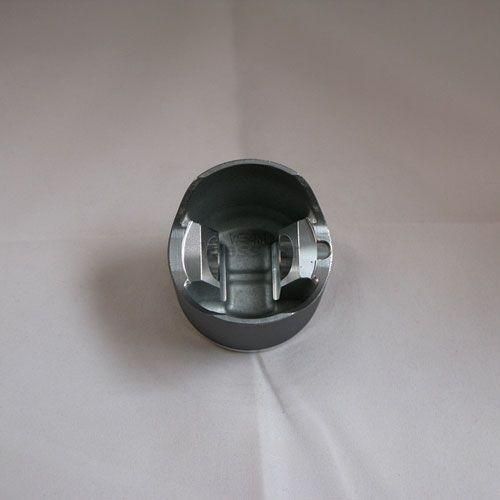

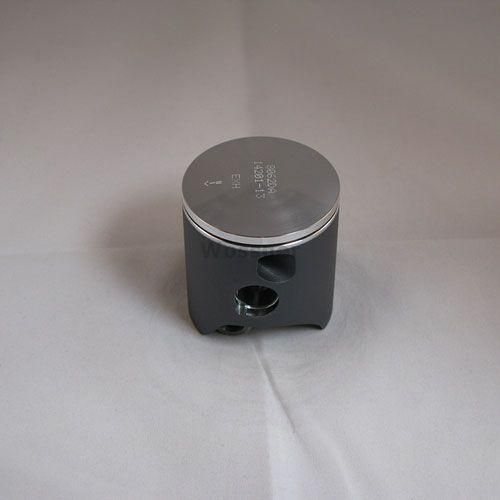

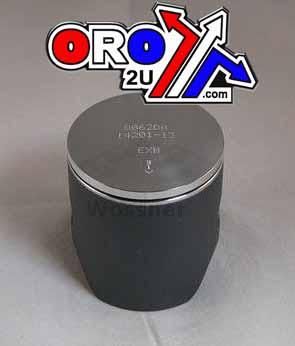

This Wossner piston kit with a 54.01mm bore and 53.96mm actual piston diameter is precisely engineered for the Kawasaki KX125 models from 2001 to 2002. Constructed from high-quality forged materials, it ensures durability, superior heat transfer, and consistent performance in 2-stroke engines.

Features

• Forged piston design provides enhanced strength and durability

• Promotes efficient heat transfer from combustion chamber to cylinder walls

• Elliptical profile ensures even bearing surface during thermal expansion

• Distributes thrust loads uniformly to prevent localised pressure and piston collapse

• Manufactured in Germany

Specifications

• Bore: 54.01mm

• Piston Diameter: 53.96mm

• Display (cm³): 125

• Stroke (mm): 45.80

• Clearance (mm): 0.05

• Compression Height (mm): 26.00

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Vehicle Fitments

• Kawasaki KX125 2001–2002

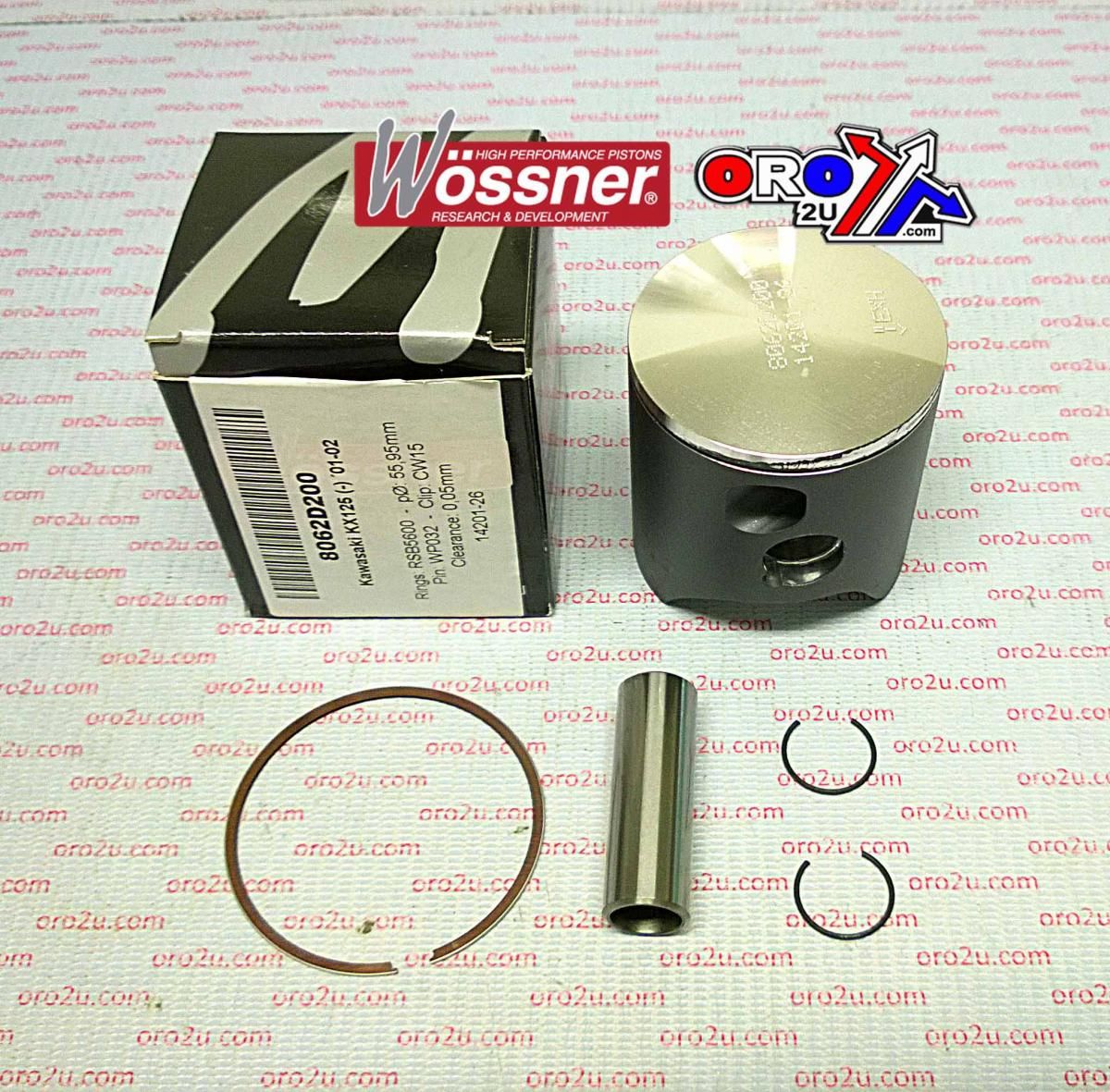

Included Components

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: P2034

• Part Number: 56-W783+00B.WO (Piston PN# 8062DB)
