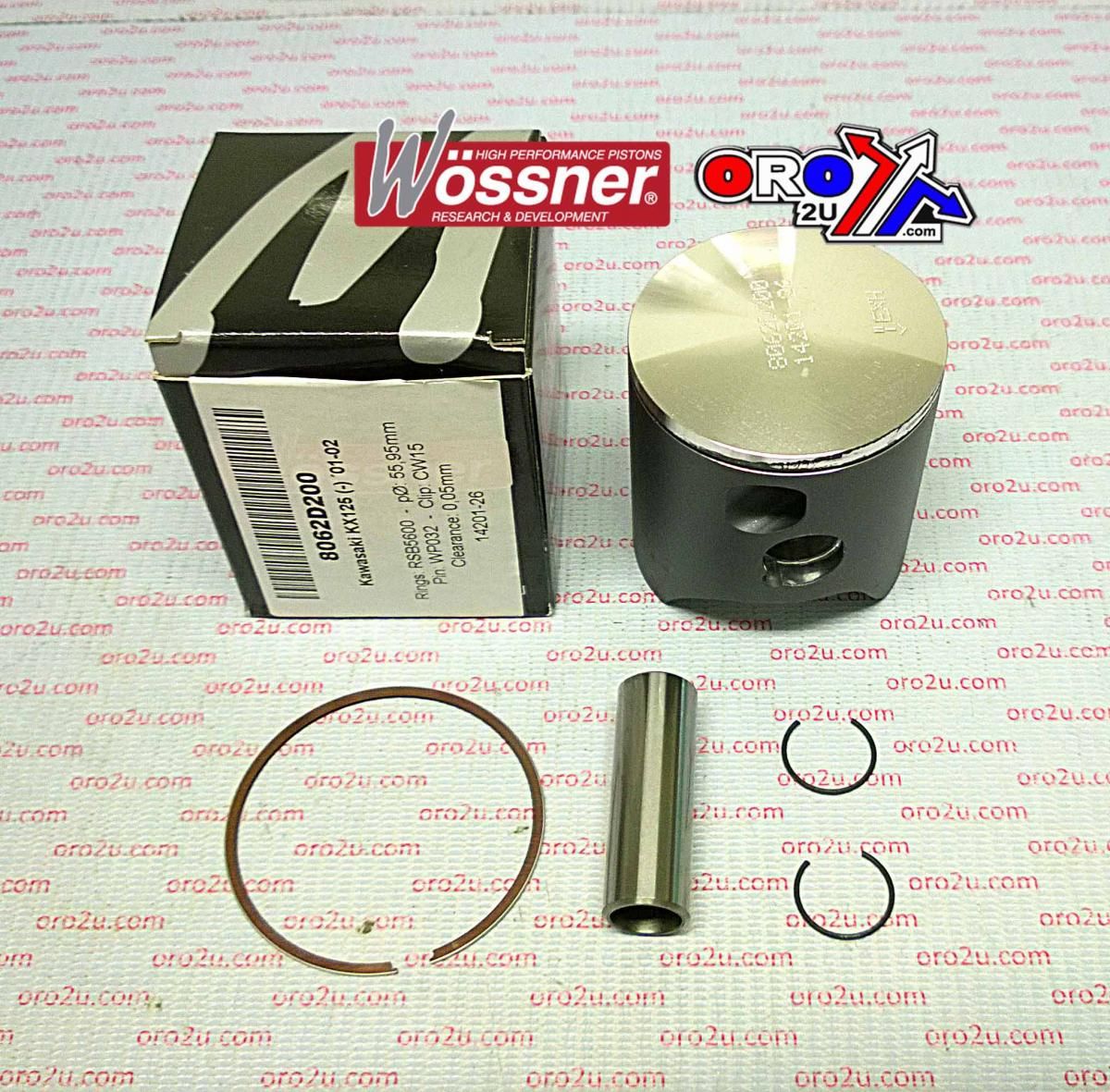

PISTON KIT 01-02 KX125 54.00 A, WOSSNER 8062DA 13001-1642

This Wossner piston kit features a 54.00mm bore with a 53.95mm actual piston diameter and is specifically designed for the Kawasaki KX125 from 2001 to 2002. Built with forged aluminium, it delivers high strength, optimised heat transfer, and structural reliability for 2-stroke engine applications.

Features

• Forged piston ensures enhanced strength and long-lasting performance

• Designed for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical profile provides uniform bearing surface during heat expansion

• Minimises localised pressure and evenly distributes thrust loads

• Helps prevent piston collapse under stress

• Manufactured in Germany

Specifications

• Bore: 54.00mm

• Piston Diameter: 53.95mm

• Display (cm³): 125

• Stroke (mm): 45.80

• Clearance (mm): 0.05

• Compression Height (mm): 26.00

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• 13001-1642

• 783M05400

Vehicle Fitments

• Kawasaki KX125 2001–2002

Included Components

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Part Number: 56-W783+00.A.WO (Piston PN# 8062DA)
