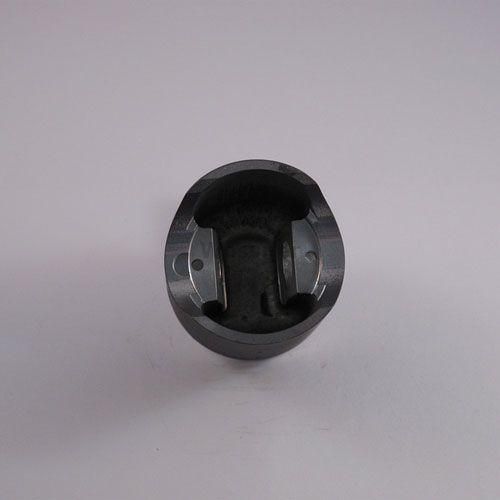

PISTON KIT 00-20 KX65 44.50 D, WOSSNER 8196DD KAWASAKI MX

This Wossner piston kit with a 44.53mm bore (+0.03mm oversize, actual size 44.48mm) is designed for Kawasaki KX65 (2000–2020) and Suzuki RM65 (2000–2012). Precision-forged in Germany, it delivers high strength, reliable thermal performance, and optimal fit for two-stroke engine rebuilds and performance applications.

Features

• Forged piston provides superior durability and resistance to wear

• Optimised for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical design ensures uniform bearing surface, reducing localised stress and preventing piston collapse

• German-engineered for precise fitment and high-quality performance

Specifications

• Bore size: 44.53 mm

• Actual piston size: 44.48 mm

• Display (cm³): 65

• Stroke (mm): 41.60

• Clearance (mm): 0.05

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height (mm): 23.60

Vehicle Fitments

• 2000–2020 Kawasaki KX65

• 2000–2012 Suzuki RM65

Included Components

• Piston: Wossner PN# 8196DD

• Lock: PN# CW12

• Pin: PN# WP091

• Ring Set: PN# RSB4450

• Rod: PN# P2001
