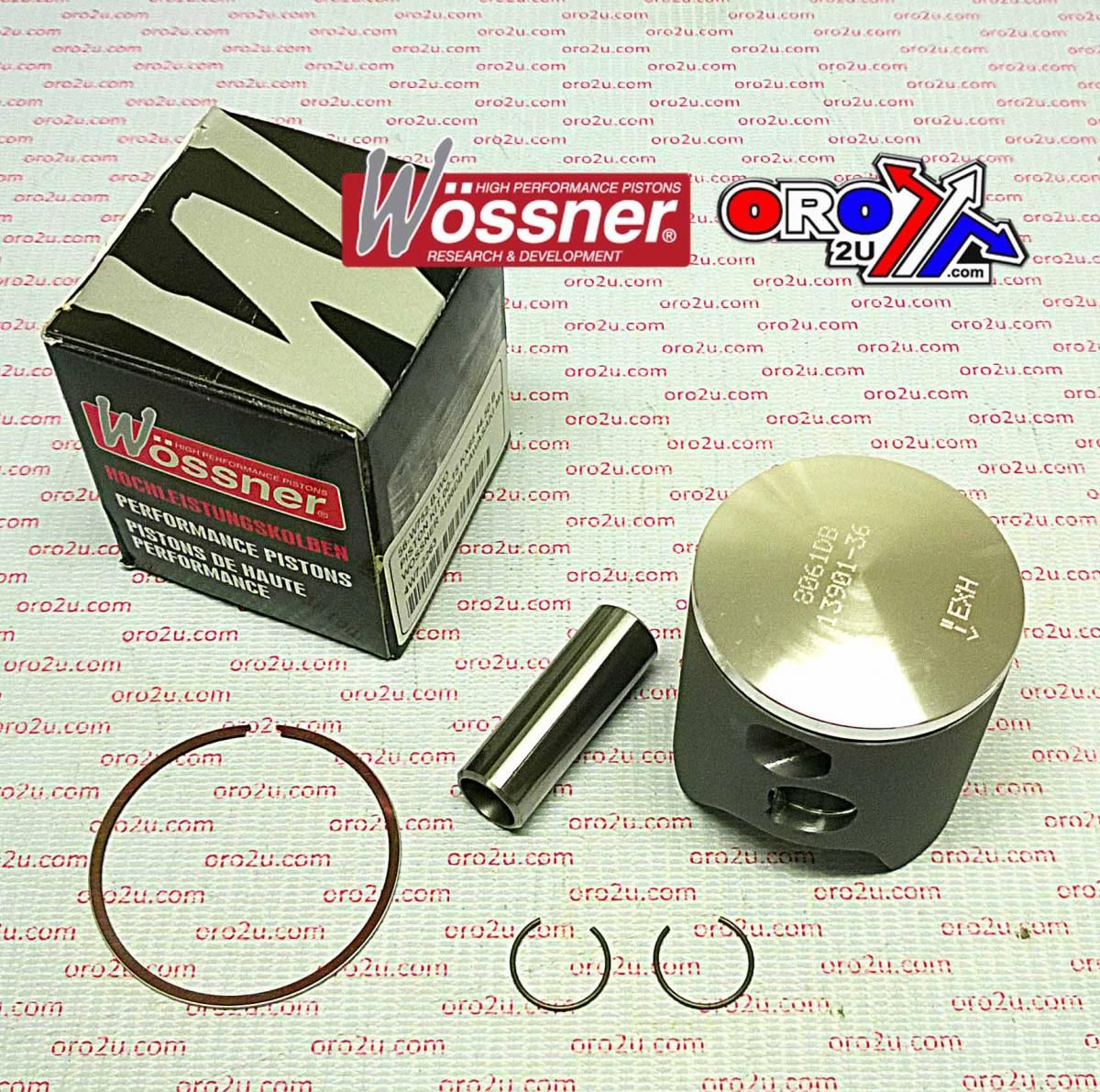

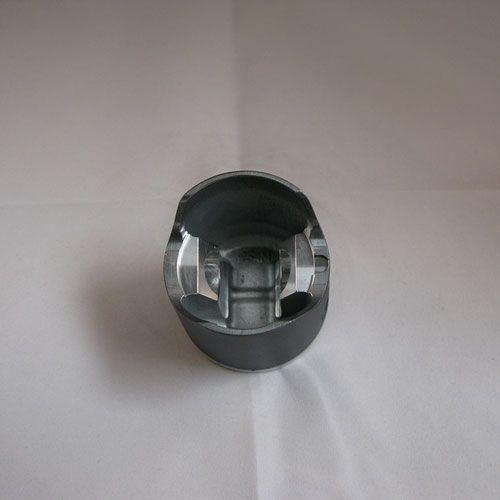

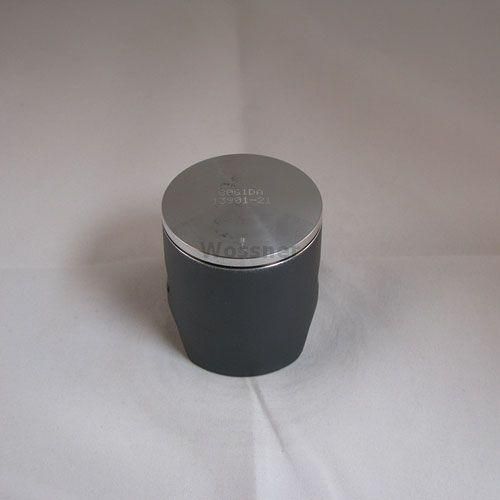

PISTON KIT 00-03 RM125 54.00 B, WOSSNER 8061DB SUZUKI MX

This Wossner piston kit is engineered specifically for high-performance 2-stroke engines, offering a 54.01mm bore and precision design to meet the demands of competitive motocross. Manufactured in Germany, the piston ensures enhanced durability, optimal heat transfer, and balanced expansion under high temperature and load conditions.

Features

• Forged piston design for superior strength and longevity

• Advanced heat transfer characteristics promote consistent combustion performance

• Elliptical piston profile ensures uniform surface contact under heat expansion

• Reduces localised pressure, distributing thrust loads evenly

• Designed to minimise piston collapse under stress

Specifications

• Bore: 54.01 mm

• Actual piston size: 53.96 mm

• Stroke: 54.50 mm

• Display volume: 125 cm³

• Clearance: 0.05 mm

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height: 29.50 mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8061DB

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: P2013

• Part No: 56-W754.B.WO

Vehicle Fitments

• Suzuki RM125 2000–2003
