PISTON KIT 00-03 RM125 54.00 A, WOSSNER 8061DA SUZUKI MX 12110-36E20-0F0

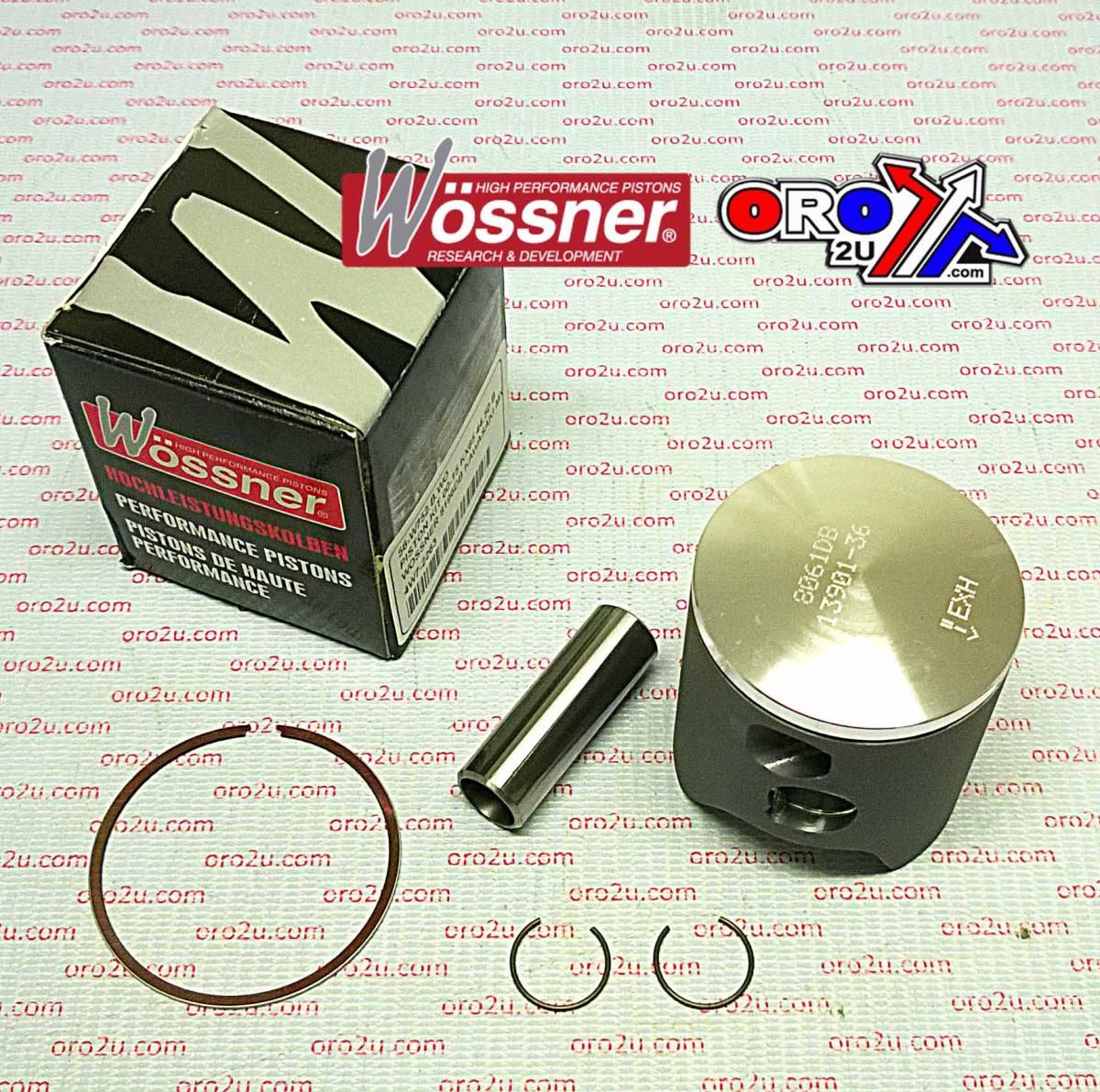

Piston kit 54mm Bore 53.95 Wossner 8061DA (STD)

SUZUKI
RM125 2000 – 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W754.A.WO (oro2u.com)

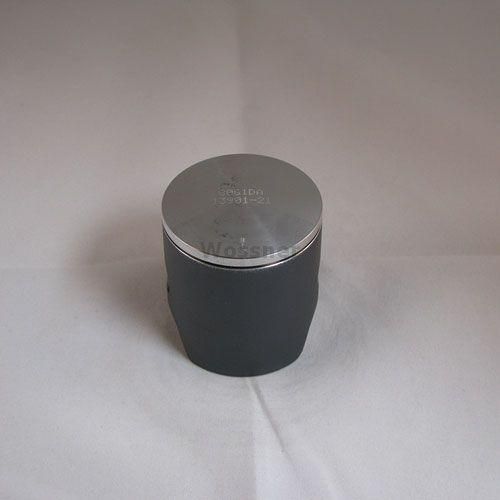

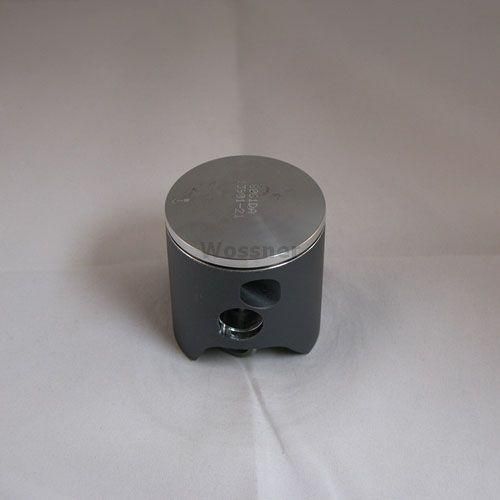

Wossner Piston Suzuki RM125 54 mm Bore (PN# 8061DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2013

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)

Cross reference numbers ONLY.
12110-36E20-0F0, 09104770, 754M05400

Select your car to see if this product fits:
– 2000 Suzuki RM 125 – 2001 Suzuki RM 125 – 2002 Suzuki RM 125 – 2003 Suzuki RM 125
