PISTON KIT 00-02 RM250 66.40 B, WOSSNER 8059DB SUZUKI MX

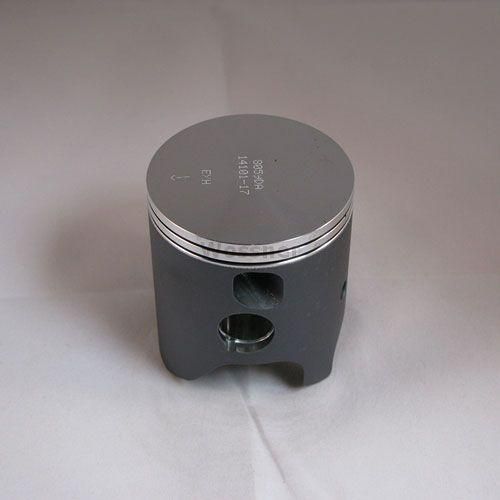

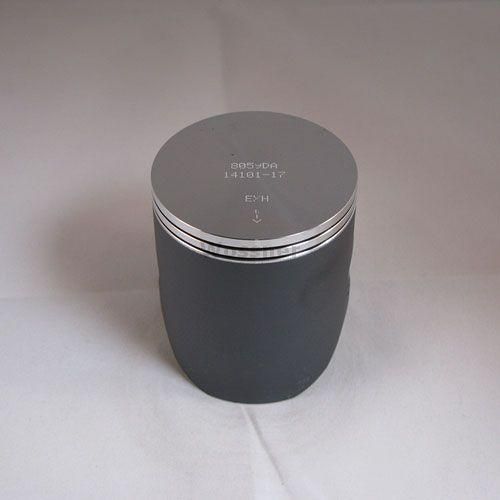

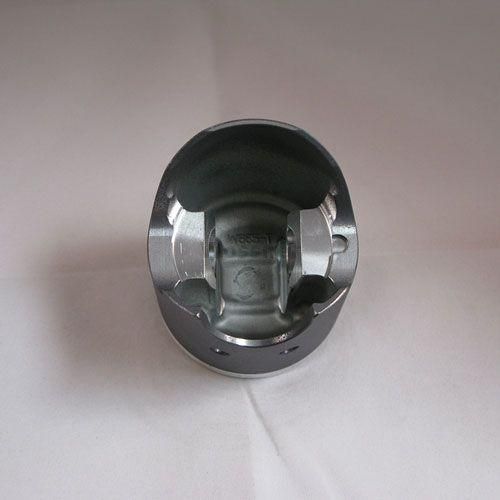

This Wossner piston kit with a 66.41mm bore offers a +0.01mm oversize fitment for the Suzuki RM250 models from 2000 to 2002. Engineered from forged materials, it is designed to endure high thermal and mechanical stresses while maintaining precise piston-to-wall clearance and optimal engine performance.

Features

• Forged piston delivers exceptional strength and resistance to wear

• Engineered for efficient heat dissipation from the combustion chamber to the cylinder wall

• Elliptical design promotes uniform expansion and load distribution

• Helps prevent piston collapse by minimising localised pressure

• Manufactured with precision in Germany

Specifications

• Bore: 66.41 mm

• Actual piston size: 66.35 mm

• Stroke: 72.00 mm

• Display volume: 249 cm³

• Clearance: 0.06 mm

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height: 38.00 mm

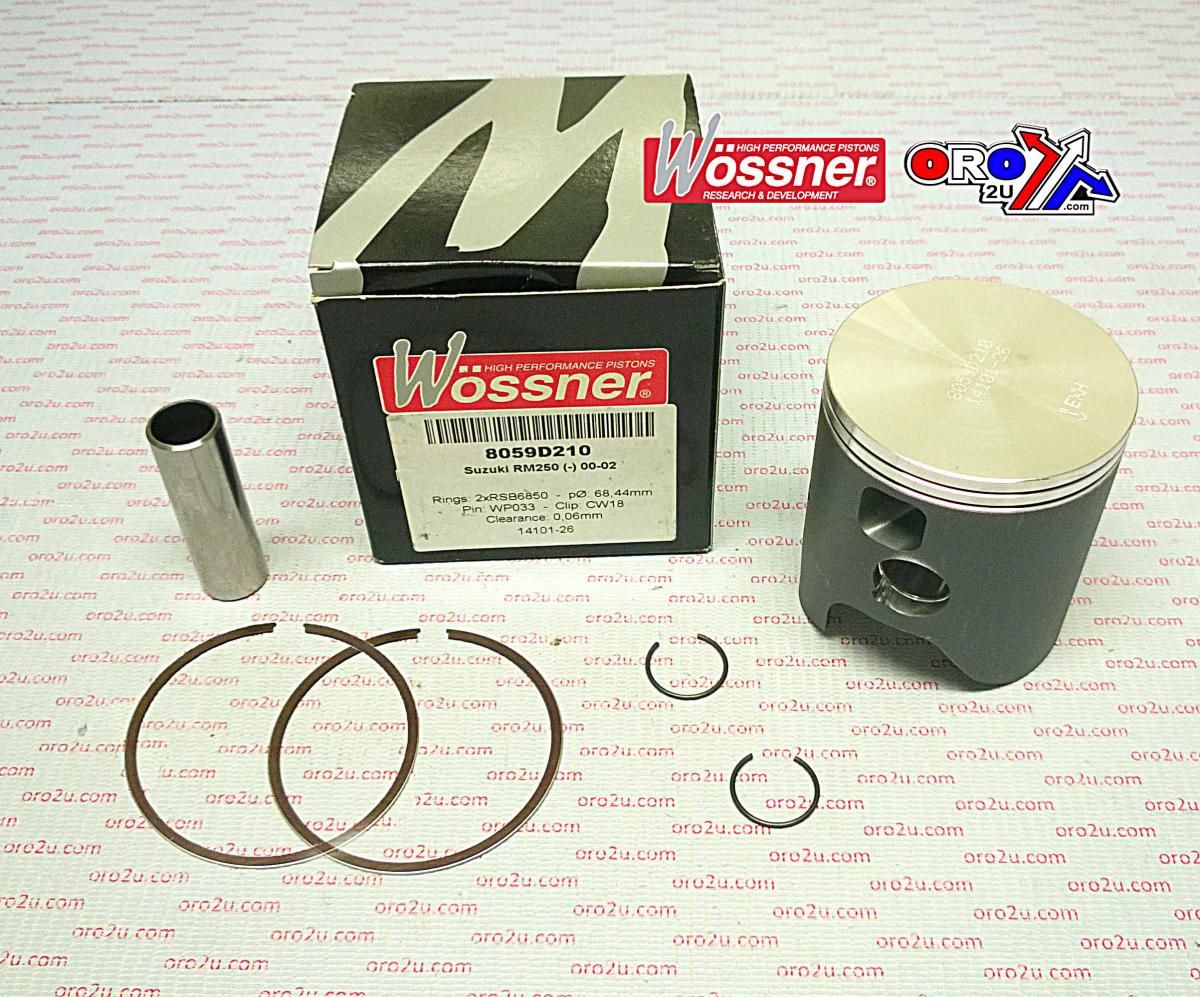

Cross-Reference OEM Part Numbers

• Piston Kit: 8059DB

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6640 x 4

• Rod: P2026

• Part No: 56-W756.B.WO

Vehicle Fitments

• Suzuki RM250 2000

• Suzuki RM250 2001

• Suzuki RM250 2002
