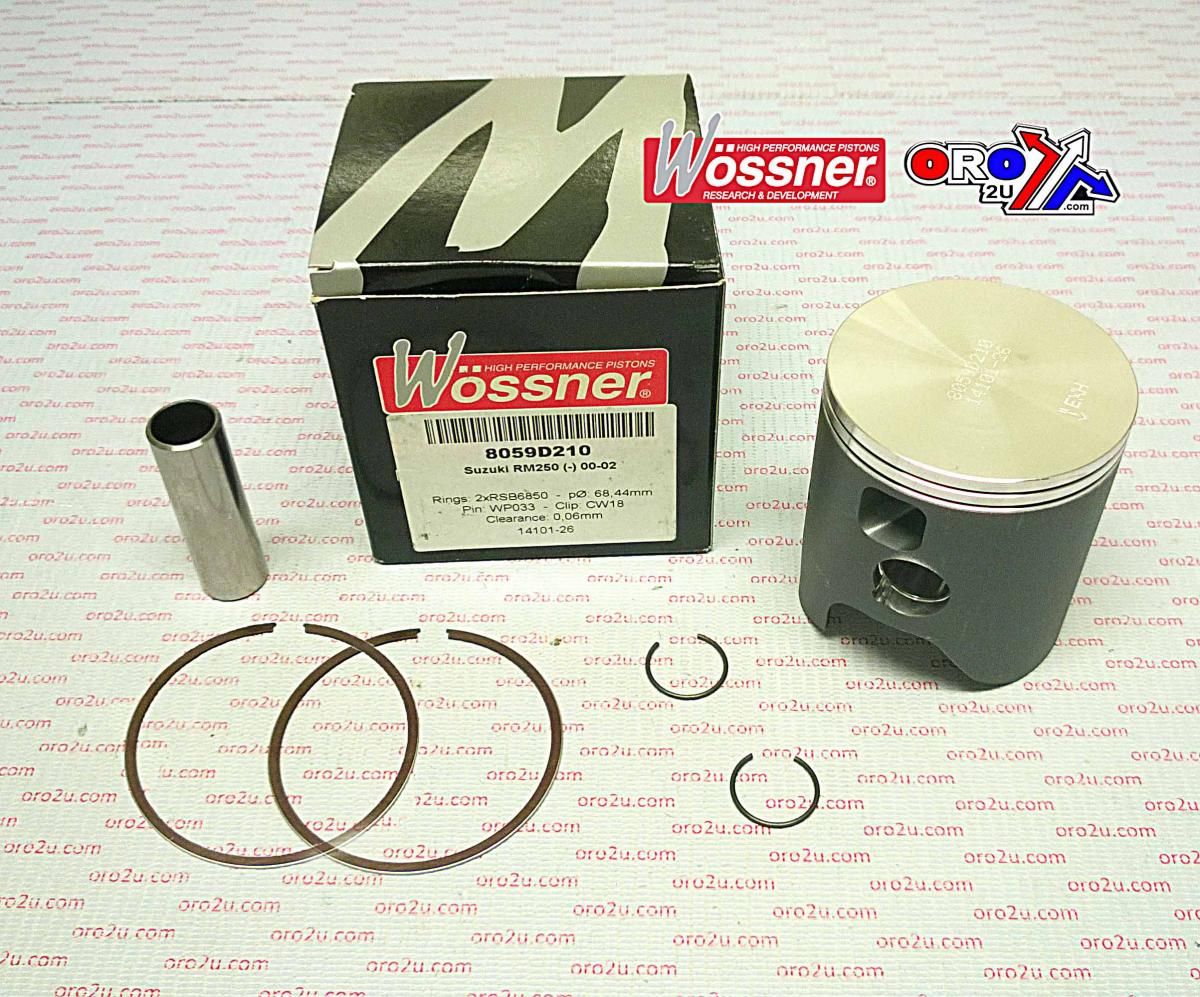

PISTON KIT 00-02 RM250 66.40 A, WOSSNER 8059DA SUZUKI MX 12110-37E30-0F0

This Wossner piston kit is designed with a 66.40mm bore and standard sizing for the Suzuki RM250 models from 2000 to 2002. Engineered from high-quality forged material, it provides superior durability, heat management, and structural stability essential for 2-stroke performance engines.

Features

• Forged construction enhances strength and longevity under extreme engine conditions

• Facilitates efficient heat transfer from combustion chamber to cylinder wall

• Elliptical design ensures uniform bearing contact under thermal expansion

• Reduces localised stress to prevent piston collapse

• Precision-engineered and manufactured in Germany

Specifications

• Bore: 66.40 mm

• Actual piston size: 66.34 mm

• Stroke: 72.00 mm

• Display volume: 249 cm³

• Clearance: 0.06 mm

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height: 38.00 mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8059DA

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6640 x 2

• Rod: P2026

• Part No: 56-W756.A.WO

Vehicle Fitments

• Suzuki RM250 2000

• Suzuki RM250 2001

• Suzuki RM250 2002
