PISTON 96-97, 99 RM250 66.40, WOSSNER 8058DC SUZUKI MX

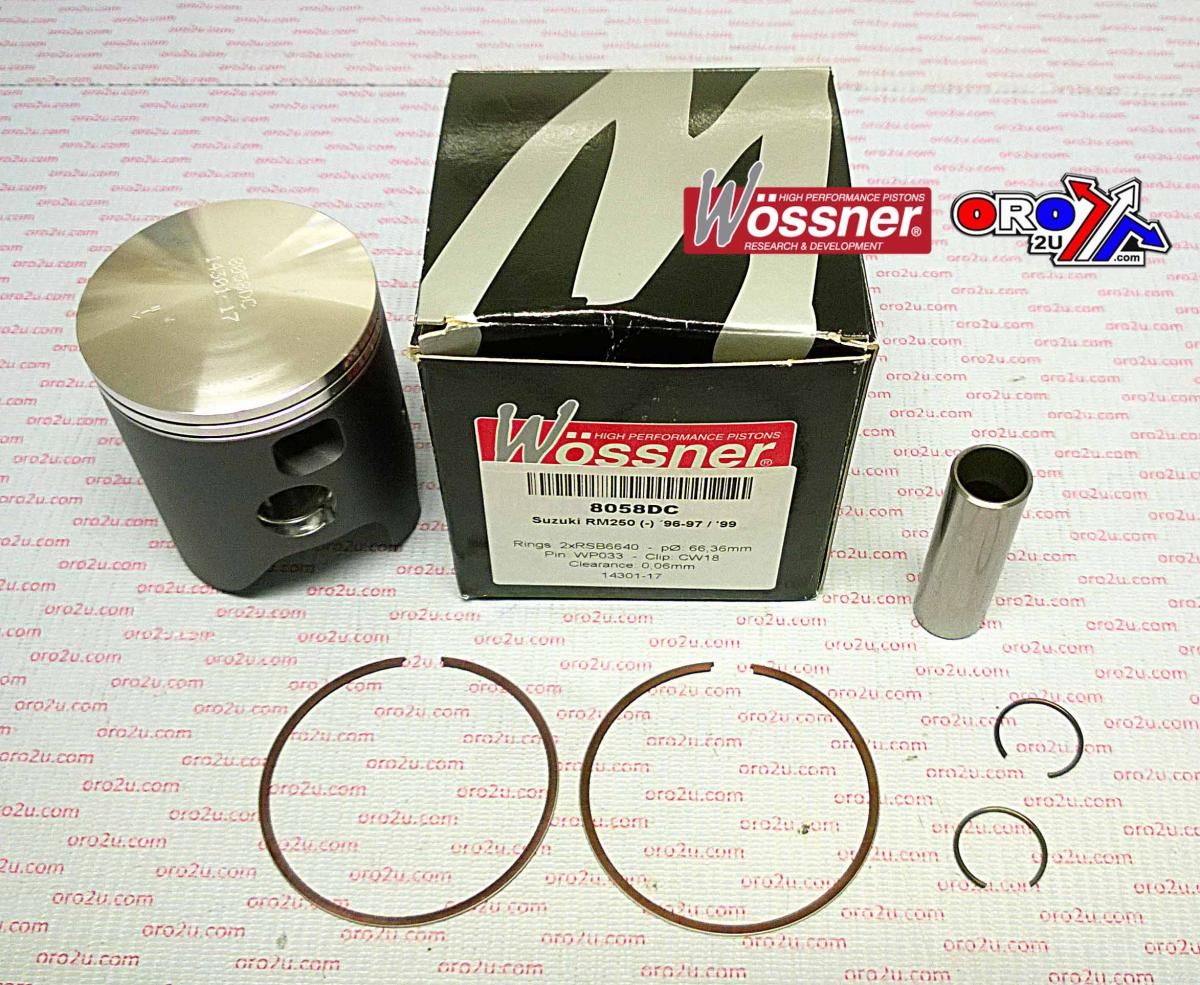

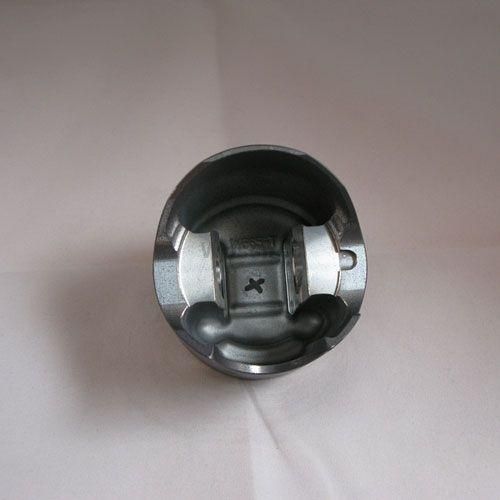

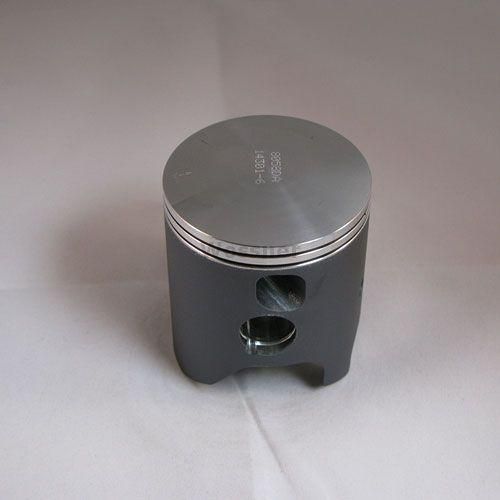

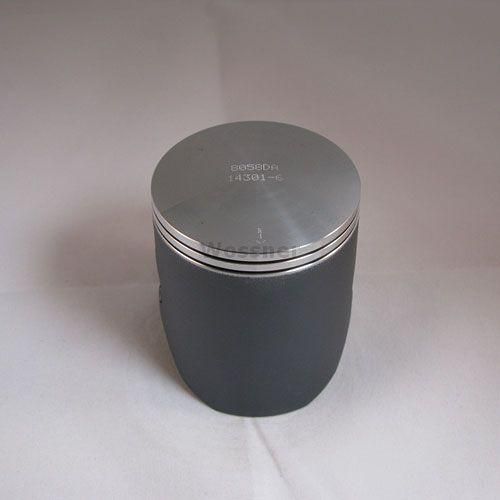

This Wossner forged piston kit is intended for Suzuki RM250 models from 1996 to 1997 and features a 68.02mm bore (+0.02mm oversize). Manufactured in Germany, it incorporates a precision-engineered elliptical design that evenly distributes thermal expansion stresses across the bearing surface. This reduces localised pressure and prevents piston collapse. The piston supports efficient heat transfer from the combustion chamber to the cylinder wall, enhancing engine stability and longevity in high-performance two-stroke applications.

Features

• Forged piston construction for high durability

• Elliptical profile ensures uniform expansion and stress distribution

• Reduces risk of structural failure under operating heat

• Supports combustion heat transfer for consistent engine performance

• Engineered and manufactured in Germany

Specifications

• Bore Size: 68.02mm (+0.02mm oversize)

• Actual Diameter: 67.96mm

• Compression Height: 38.00mm

• Stroke: 72.00mm

• Displacement: 249 cm³

• Piston Clearance: 0.06mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8023DC

• Alternate Piston PN: 8058DC

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6640 x2

• Rod: P2026

Vehicle Fitments

• 1996 Suzuki RM250

• 1997 Suzuki RM250
