| Size | 66.40mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 66.40 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON 96-97, 99 RM250 66.40, WOSSNER 8058DA SUZUKI MX KIT 12110-37E30-0F0

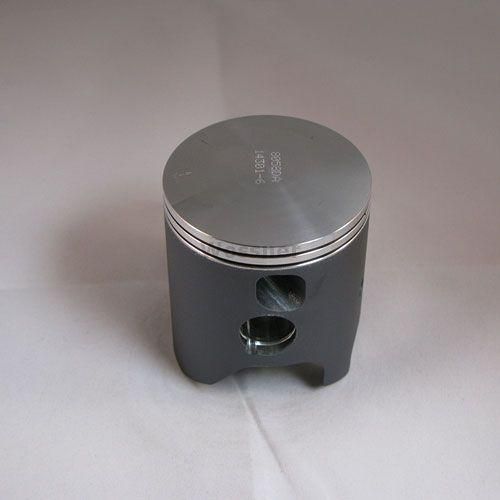

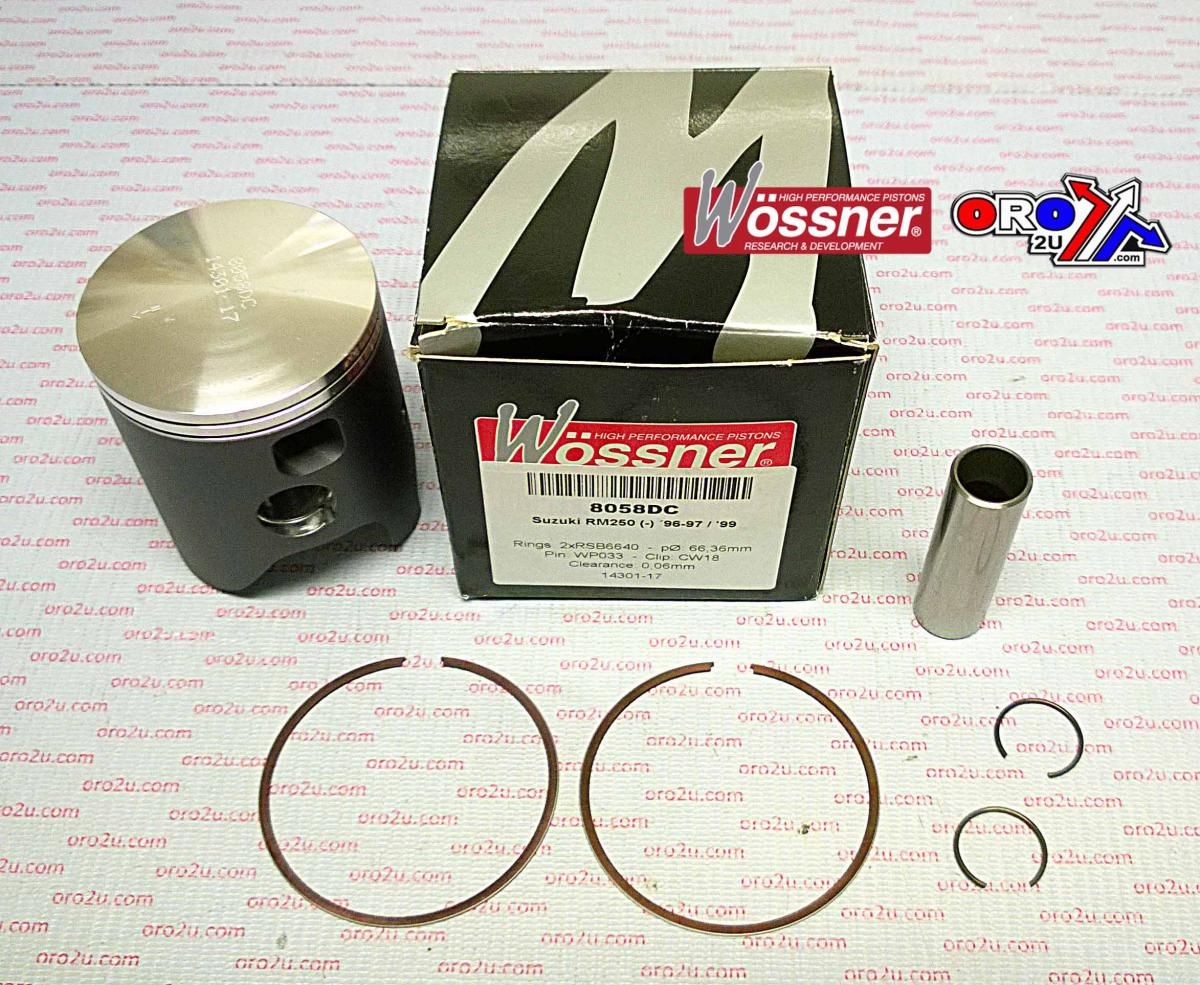

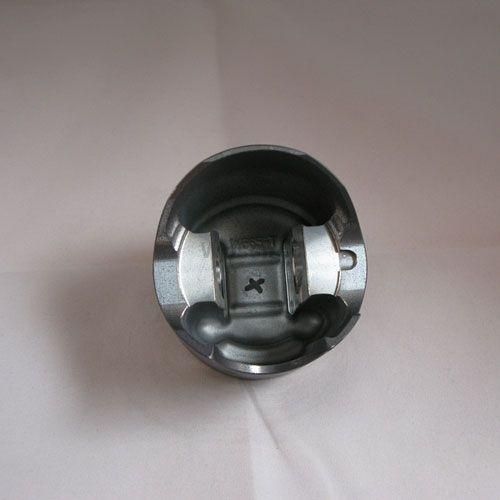

This Wossner forged piston kit is manufactured for Suzuki RM250 models from 1996 to 1997, offering a 68.00mm standard bore. Produced in Germany with premium forged materials, it features an elliptical design that ensures even bearing surface expansion under heat, minimising localised stress and the risk of piston collapse. Its construction enhances combustion heat transfer to the cylinder walls, delivering consistent performance for two-stroke engines.
Features
-
Forged piston for structural strength and extended durability
-
Elliptical shape ensures uniform pressure distribution during thermal expansion
-
Reduces risk of piston collapse from localised stress points
-
Promotes efficient combustion heat dissipation
-
Precision German manufacturing
Specifications
-
Bore Size: 68.00mm (Standard)
-
Actual Diameter: 67.94mm
-
Compression Height: 38.00mm
-
Stroke: 72.00mm
-
Displacement: 249 cm³
-
Piston Clearance: 0.06mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
-
Dome Volume: Not specified
-
Theoretical Weight: Not specified
Cross-Reference OEM Part Numbers
-
Wossner Piston Kit Part No: 8023DA
-
Alternate Piston PN: 8058DA
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RSB6640 x2
-
Rod: P2026
-
Cross Reference: 743M06640
Vehicle Fitments
-
1996 Suzuki RM250
-
1997 Suzuki RM250
