| Size | 100.50mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 100.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

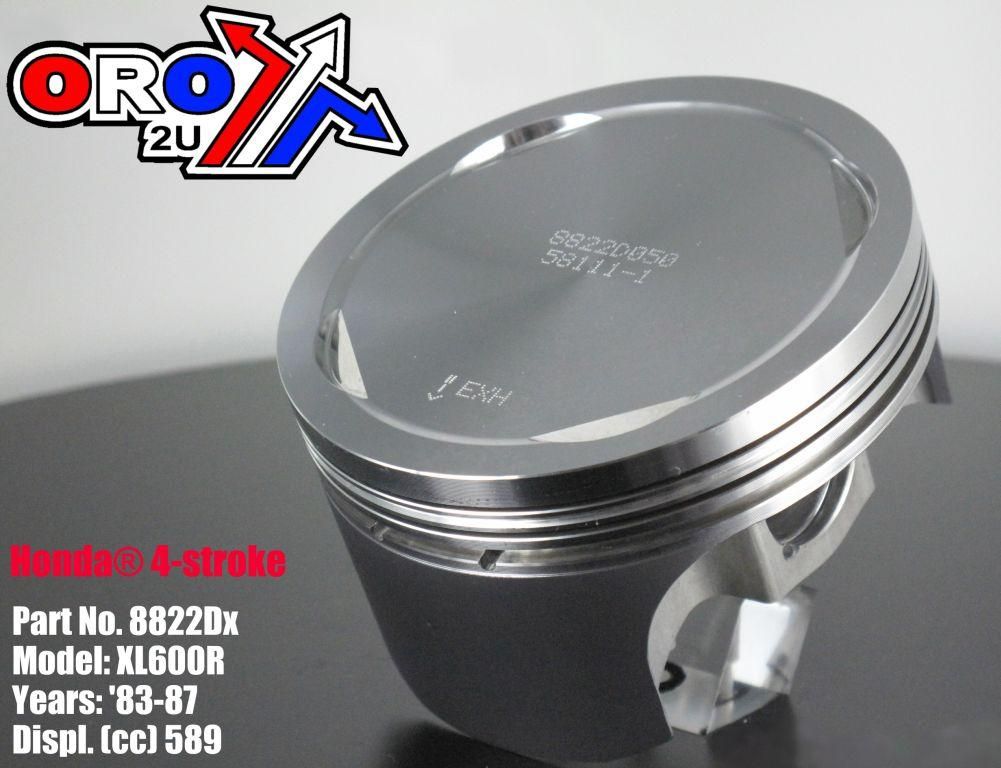

PISTON 83-87 XL600R 100.50, WOSSNER 8822D050 HONDA
This Wossner forged piston kit is a +0.50mm oversize replacement designed for Honda XL600R models from 1983 to 1987. Engineered for durability and thermal efficiency, it offers enhanced performance with a higher compression ratio compared to OEM specifications.
Features
-
Forged piston construction ensures high strength and wear resistance
-
Elliptical design allows uniform bearing surface during heat expansion
-
Optimised for effective heat dissipation to the cylinder walls
-
Helps prevent piston collapse by evenly distributing thrust loads
-
Manufactured in Germany
Specifications
-
Bore Size: 100.50mm
-
Actual Piston Size: 100.44mm
-
Display Displacement: 589 cm³
-
Stroke: 75.00mm
-
Piston Clearance: 0.06mm
-
Wossner Compression Ratio: 10.20:1
-
OEM Compression Ratio: 9.00:1
-
Dome Volume: -5.90 cm³
-
Compression Height: 32.80mm
-
Circlip Part Number: CW24
-
Pin Part Number: WP057
-
Ring Set Part Number: 1005XSY
Cross-Reference OEM Part Numbers
-
Part No: 56-W926_050.WO
Vehicle Fitments
-
Honda XL600R (1983–1987)
