| Size | 56mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 56.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

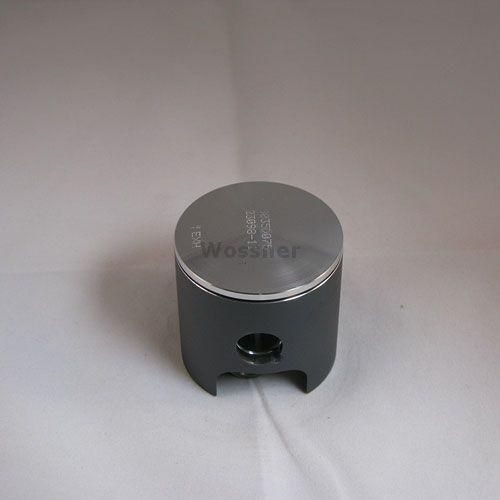

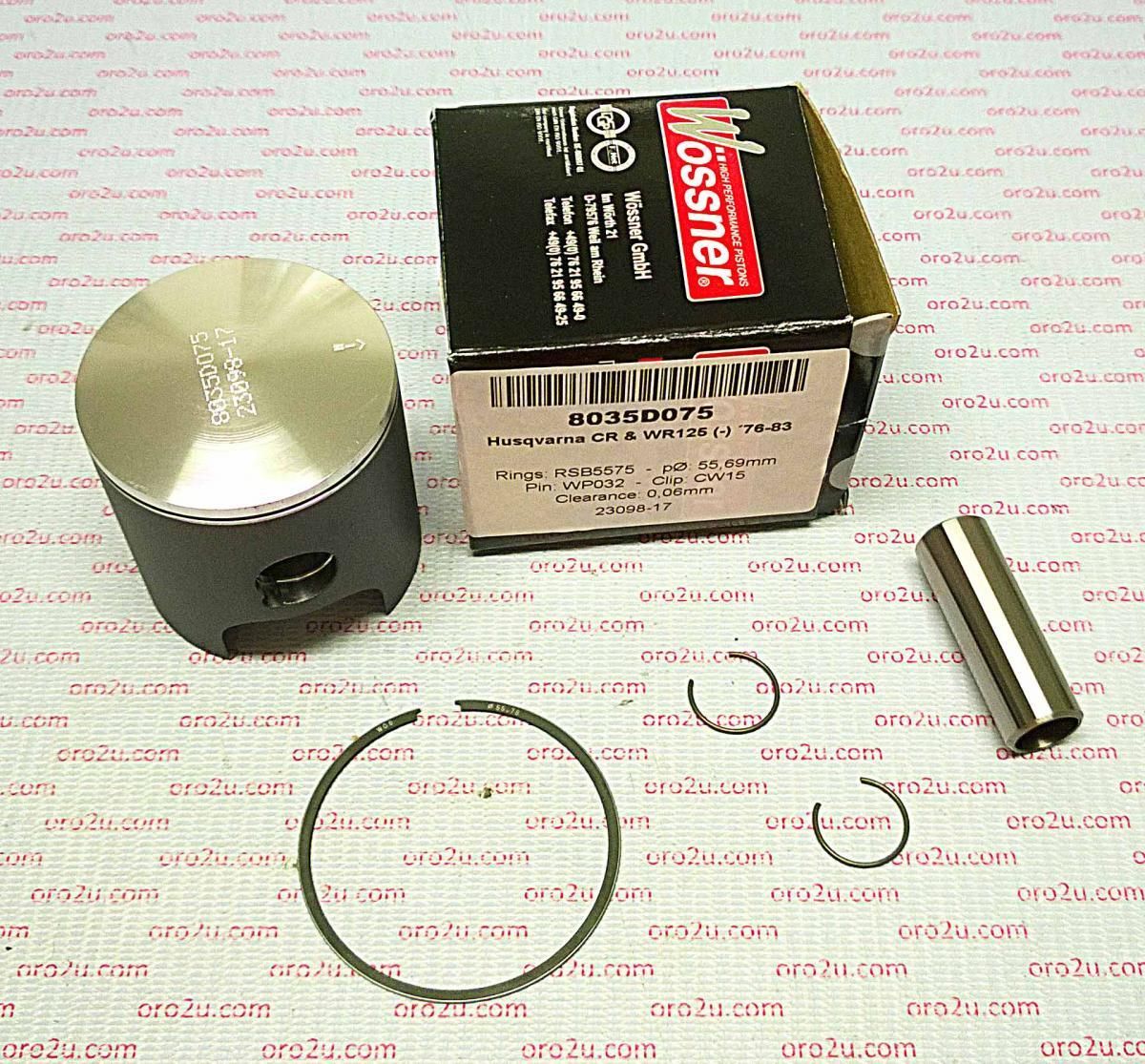

PISTON 76-83 CR/WR125 56.00, WOSSNER 8035D100 HUSQVARNA
Wossner 56.00mm (55.94mm) forged piston kit is designed for Husqvarna CR 125 and WR 125 models from 1976 to 1983. Engineered for strength and precision, this piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, it meets high-quality standards for reliable performance.
Features
- Wossner forged piston for superior strength and durability
- Optimized heat transfer for improved combustion efficiency
- Elliptical design for uniform bearing surface and reduced localized pressure
- Precision-engineered to prevent piston collapse
- Made in Germany
Specifications
- Bore Size: 56.00mm (55.94mm)
- Oversize: +1.00mm
- Displacement: 124cc
- Stroke: 52.30mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke
- Compression Height: 25.00mm
- Lock Part Number: CW15
- Pin Part Number: WP023
- Ring Set Part Number: RSB5600
- Theoretical Weight: Not specified
Vehicle Fitments
- Husqvarna CR 125 (1976-1983)
- Husqvarna WR 125 (1976-1983)
