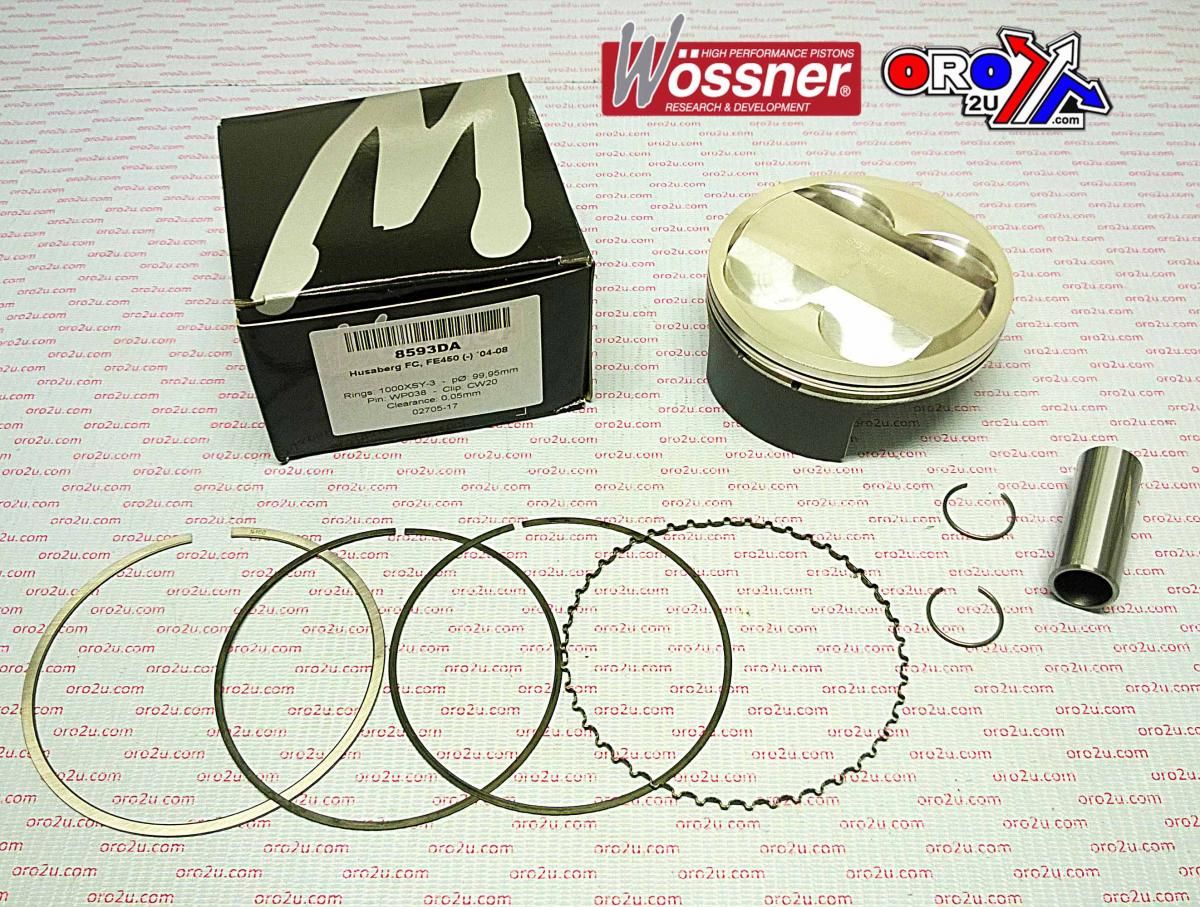

PISTON 04-09 HUSABERG 450 100, WOSSNER 8593DA FORGED KIT

Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.

Features

• Forged construction for enhanced durability
• Optimized heat transfer for improved performance
• Elliptical design prevents localized pressure and piston collapse
• OEM compression ratio for direct replacement

Specifications

• Bore: 99.95 mm
• Piston Size: 100.00 mm
• Displacement: 449 cm³
• Stroke: 57.20 mm
• Clearance: 0.05 mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 13.00:1
• Dome Volume: +9.00 cm³
• Compression Height: 24.30 mm

Cross-Reference OEM Part Numbers

• Lock: CW20
• Pin: WP038
• Ring Set: 1000XSY

Vehicle Fitments

• Husaberg FC 400 (2004-2008)
• Husaberg FE 450 (2004-2008)
