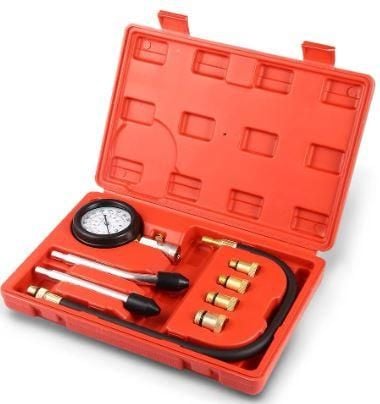

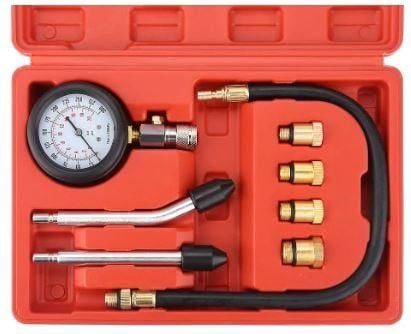

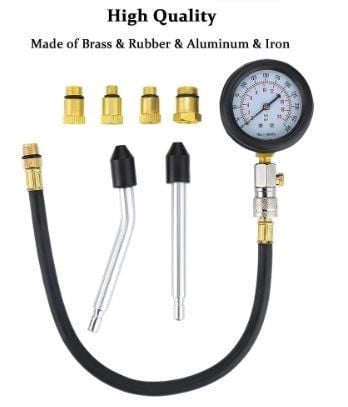

PETROL ENGINE COMPRESSION TEST TOOL KIT, 10 12 14 & 18mm PLUGS / 0-300psi 0-20bar

COMPRESSION TEST KIT (10, 12, 14 & 18mm)



FEATURES:

3″ (75mm) diameter gauge with dual color coded scale, can be quickly set to your motor or car, get accurate readings in valves, piston rings, cylinder bores or head gaskets.

Air gauge with quick coupling & pressure release button, manometer with two test pressure: 0-300psi, 0-20bar.

Drain valve with full copper nickel plating, anti-oxidation and corrosion.

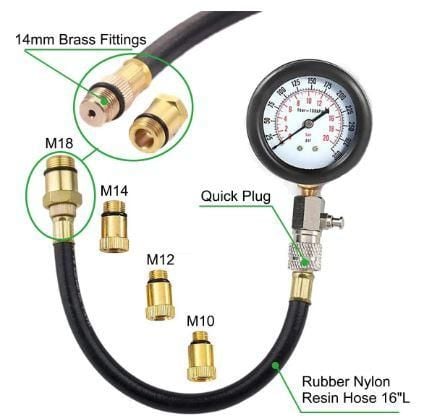

Included 4 adapters: M10*1.0mm / M12*1.25mm / M14*1.25mm / M18*1.5mm.

M10 thread is suitable for motorcycles, and M12 / M14 / M18 threads are suitable for cars.

Included 2 pipes: crank shaft type & transverse axis type, both with rubber cone cap and can test the compression on almost any engine.



SPECIFICATIONS:

Case Color: Black

Material: Copper

Dual Gauge Readings: 0-300psi, 0-20bar (1bar=100kPa)

Test Unit/Mode: bar, psi

Special function: Get Accurate Readings

Pressure Gauge Diameter: 3″ / 75mm

Pressure Gauge Height: 5.04″ / 128mm

Adapters Thread Size: M10 x 1.0mm, M12 x 1.25mm, M14 x 1.25mm, M18 x 1.5mm

Hose overall length: 17.72″ / 450mm

Straight Line Pressure Tube Length: 5.91″ / 150mm

Angled Pressure Tube Length: 6.30″ / 160mm

Package Size: 29.5 * 21 * 5.5cm / 11.61 * 8.27 * 2.16in

Package Weight: Approx. 845g / 29.80oz





Part No. 00-336 (oro2u.com)
