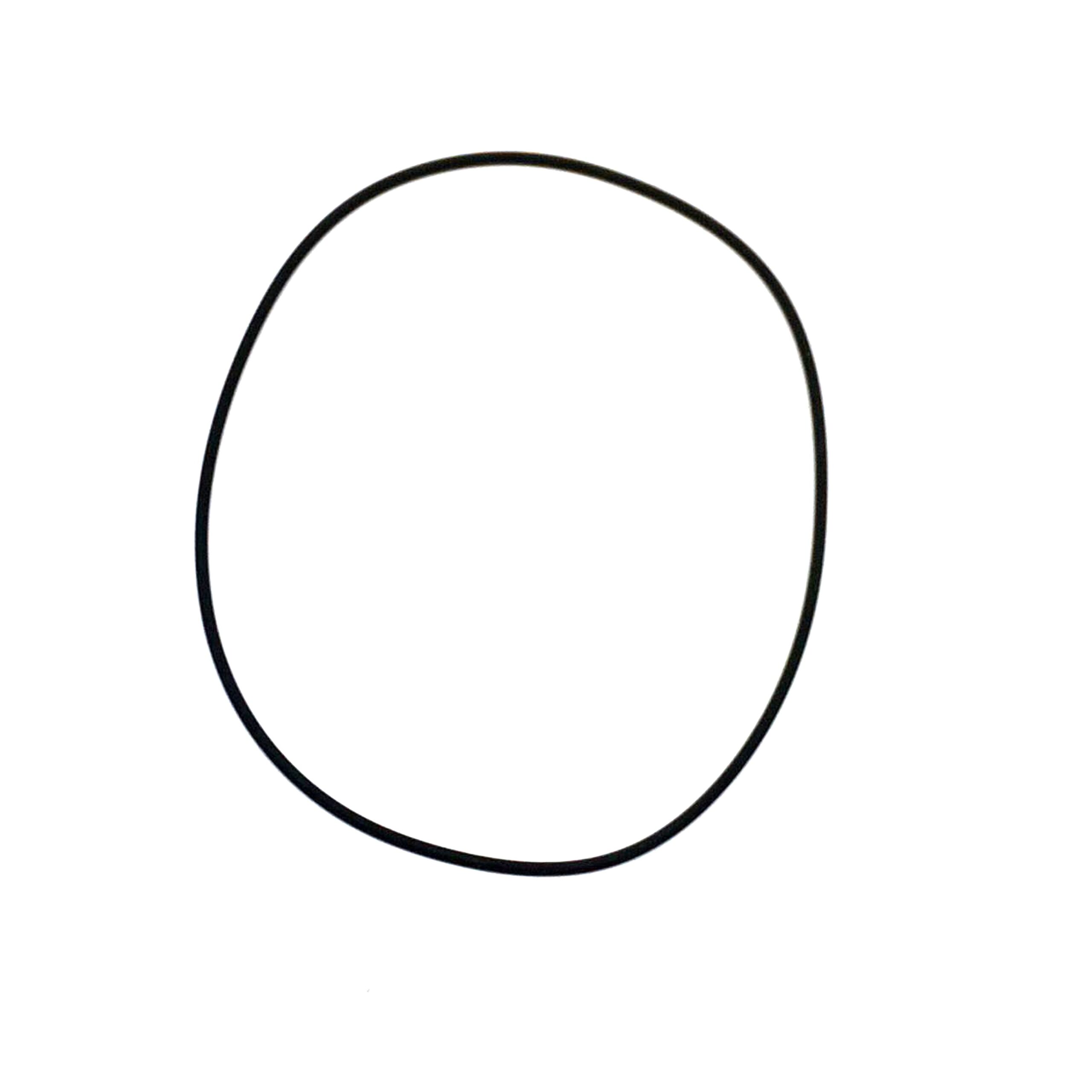

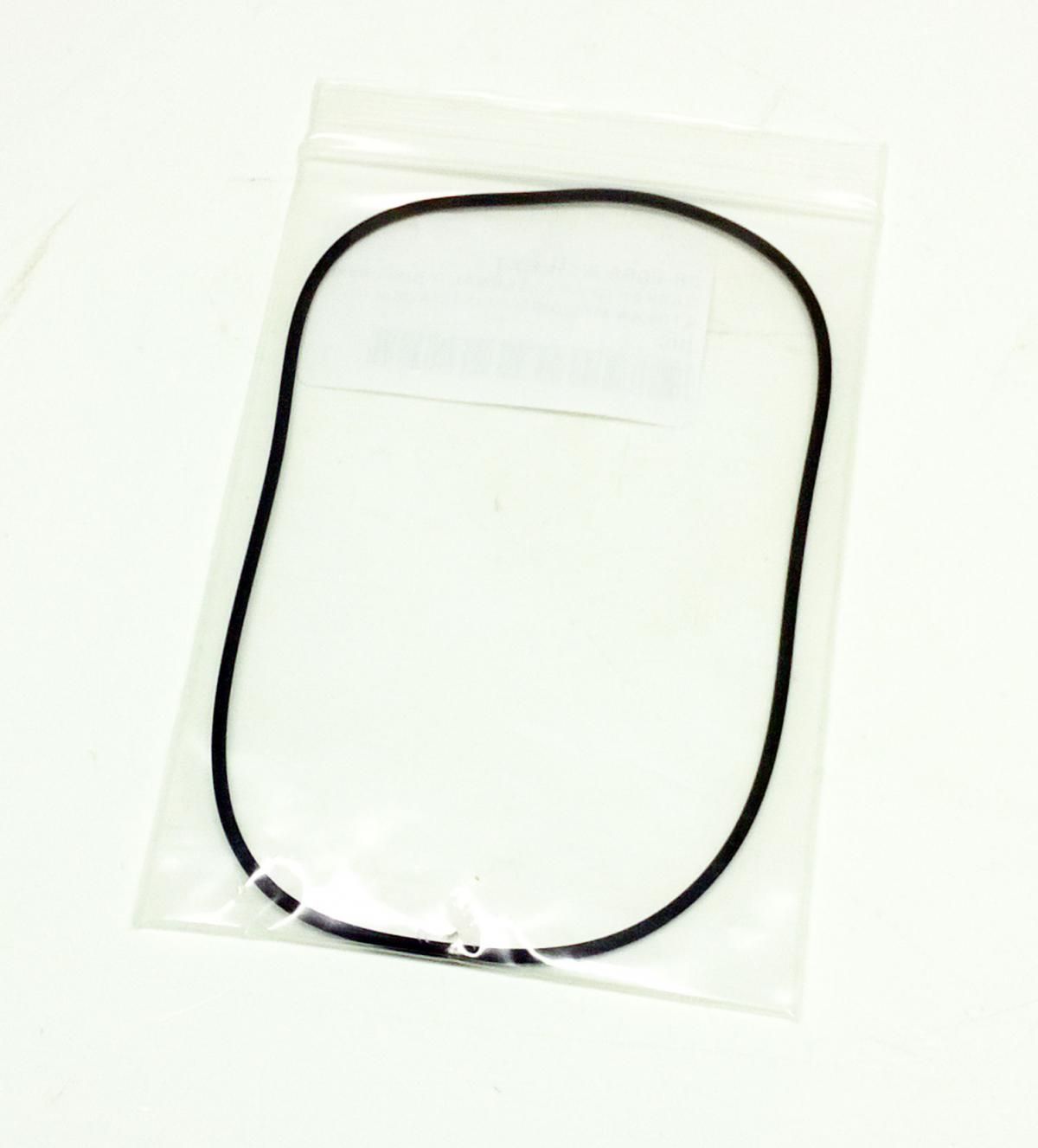

OUTER CYLINDER HEAD GASKET KTM 250/300 07-22, ATHENA M752010500094 HUSQVARNA HUSABERG

ATHENA Outer Cylinder Head Gasket – M752010500094

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Internal Diameter (mm) 105.00
• Material Viton®
• Net Weight (Kg) 0.00
• Wire Diameter (mm) 2.00

Partner OEM code

• BETA 1066978000
• K.T.M. 0770105020

Vehicle compatibility

BETA RR 2T 250 cc 2013/2022

• BETA RR 2T 300 cc 2013/2022
• BETA RR RACING 2T 250 cc 2013/2022
• BETA RR RACING 2T 300 cc 2013/2022
• GAS GAS EC 2T 250 cc 2021/2023
• GAS GAS MC 250 cc 2022/2023
• HUSABERG TE 250 cc 2011/2012
• HUSABERG TE 300 cc 2011/2012
• HUSQVARNA TC Ktm engine 250 cc 2014/2022
• HUSQVARNA TE 300 cc 2014/2019
• HUSQVARNA TE Ktm engine 250 cc 2014/2023
• HUSQVARNA TX 300 cc 2017/2021
• KTM EXC 250 cc 2007/2009
• KTM EXC 250 cc 2011/2013
• KTM EXC 250 cc 2016/2023
• KTM EXC 300 cc 2013/2015
• KTM EXC 300 cc 2018/2021
• KTM FREERIDE R 250 cc 2014/2017
• KTM SX 250 cc 2007/2022
• KTM XC 250 cc 2006/2022
• KTM XC 300 cc 2006/2014
• KTM XC 300 cc 2016/2021
• KTM XC-W 250 cc 2008/2015
• KTM XC-W 250 cc 2017/2022
• KTM XC-W 300 cc 2006/2023
• KTM XC-WE 250 cc 2008/2018



Part No. 28-6000.ATH.EXT (oro2u.com)
