OIL SEAL 12x22x9 Suzuki GS GSF GSX GT LT RM SP TC TM TS VS 125 160 185 250 300 425 450 550, 09285-12006 ATHENA M730900305000

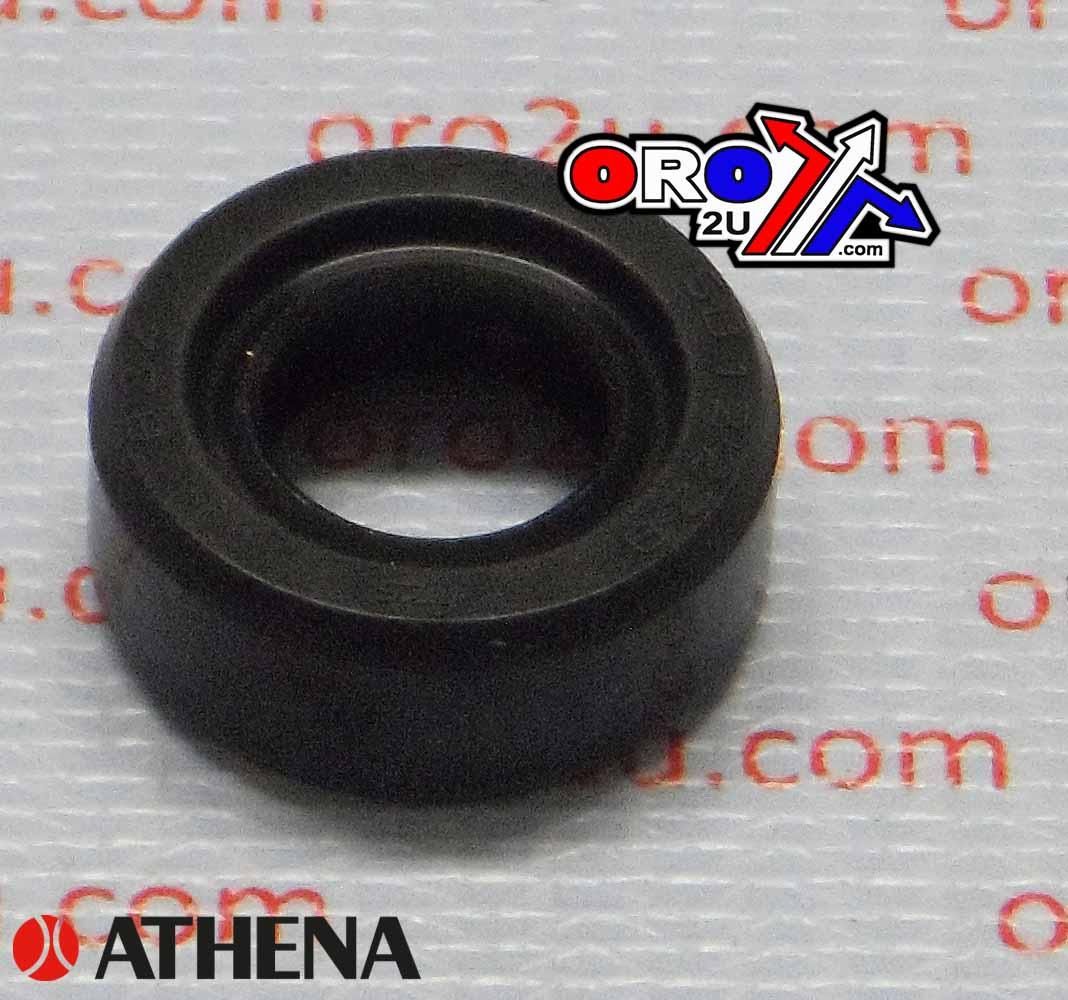

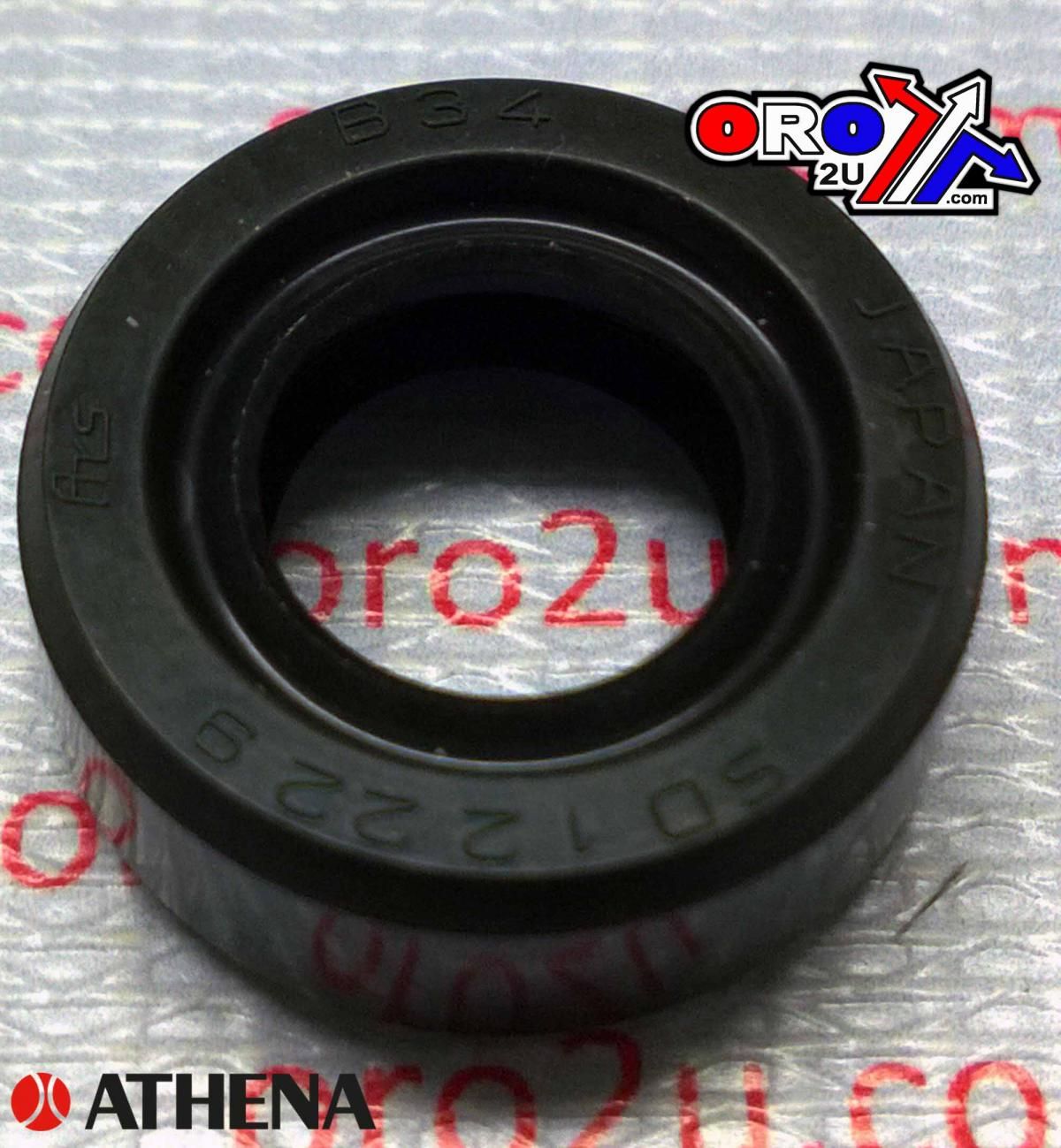

This Athena oil seal, with dimensions 12x22x9 mm, is a single-lip seal featuring an additional dust lip for enhanced protection. Manufactured from high-quality NBR (nitrile rubber), it is designed for use in gear shifter shaft applications across a wide range of Suzuki motorcycles and ATVs. The rubber exterior ensures optimal sealing against engine cases, making it a reliable OEM replacement.

Features

• Oil seal with rubber exterior for improved fit and sealing

• Single seal-lip and one dust lip for enhanced contamination protection

• Manufactured from durable NBR (nitrile rubber)

• Designed according to OEM specifications

• Suitable for gear shifter shaft sealing applications

Specifications

• Product: Oil Seal

• Brand: Athena

• Part Number: M730900305000 / 58-8091.ATH

• Internal Diameter: 12 mm

• External Diameter: 22 mm

• Height: 9 mm

• Type: SD (Single lip with Dust lip)

• Net Weight: 0.01 kg

• Material: NBR (Nitrile Rubber)

Cross-Reference OEM Part Numbers

• Suzuki 09285-12006

• Suzuki 0928512006

• Replaces: 09285-12002 (Gear Shifter Shaft Seal)

Vehicle Fitments

• Suzuki AL50 1971

• Suzuki ALT50 1983–1984

• Suzuki ALT125 1983–1986

• Suzuki ALT185 1984–1986

• Suzuki DR100 1985–1987

• Suzuki DR125 1986–1996

• Suzuki DR200 1986–2009

• Suzuki DR250 1985–1995

• Suzuki DR350 1990–1999

• Suzuki DR650 1990–2009

• Suzuki DS80 1978–2000

• Suzuki DRZ70 2008–2009

• Suzuki DRZ125 2004–2007

• Suzuki F50 1971

• Suzuki FZ50 1979–1983

• Suzuki FA50 1980–1991

• Suzuki FS50 1980–1981

• Suzuki GN125 1982–1997

• Suzuki GN250 1982–1988

• Suzuki GN400 1980–1982

• Suzuki GR650 1982-UP

• Suzuki GS250 1980–1981

• Suzuki GS300 1982–1983

• Suzuki GS400 1977–1978

• Suzuki GS425 1979

• Suzuki GS450 1980–1988

• Suzuki GS500 1989–2009

• Suzuki GS550 1977–1986

• Suzuki GS650 1981–1983

• Suzuki GS700 1985

• Suzuki GS750 1977–1999

• Suzuki GS850 1979–1983

• Suzuki GS1000 1978–1982

• Suzuki GS1150 1984–1986

• Suzuki GSF400 1991–1993

• Suzuki GSF600 2001–2003

• Suzuki GSF1200 1997–2005

• Suzuki GSX600 1988–2006

• Suzuki GSX750 1989–2006

• Suzuki GSX1100 1988–1993

• Suzuki GSXR50 1987

• Suzuki GSXR600 1992–1993

• Suzuki GSXR750 1986–1995

• Suzuki GSXR1100 1987–1993

• Suzuki GV700 1985

• Suzuki GV1200 1985–1986

• Suzuki GZ250 1999–2010

• Suzuki GT185 1973–1977

• Suzuki GT250 1973–1977

• Suzuki GT380 1972–1977

• Suzuki GT500 1976–1977

• Suzuki GT550 1972–1977

• Suzuki GT750 1972–1977

• Suzuki JR50 1985–2007

• Suzuki JR80 2001–2004

• Suzuki LS650 1986–2009

• Suzuki LT125 1983–1987

• Suzuki LT160 1989–2004

• Suzuki LT185 1984–1987

• Suzuki LT230 1985–1993

• Suzuki LT250 1985–1992

• Suzuki LT300 1987–1989

• Suzuki LT500 1987–1990

• Suzuki LTF160 1991–2001

• Suzuki LTF230 1986–1987

• Suzuki MT50 1973

• Suzuki RE5 1975–1976

• Suzuki RM50 1978–1980

• Suzuki RM60 1980–1983

• Suzuki RM80 1977–1995

• Suzuki RM100 1976–1981

• Suzuki RM125 1975–1988

• Suzuki RM250 1975–1988

• Suzuki RM370 1976–1977

• Suzuki RM400 1978–1980

• Suzuki RM465 1981–1982

• Suzuki RM500 1983–1984

• Suzuki SP100 1983-UP

• Suzuki SP125 1982–1988

• Suzuki SP200 1986–1988

• Suzuki SP250 1982–1985

• Suzuki SP370 1978–1979

• Suzuki SP400 1980

• Suzuki SP500 1981–1983

• Suzuki T125 1971

• Suzuki T250 1971

• Suzuki T350 1969–1972

• Suzuki T500 1968–1975

• Suzuki TC100 1973–1977

• Suzuki TC120 1971

• Suzuki TC125 1972–1977

• Suzuki TC185 1974–1977

• Suzuki TM75 1974–1976

• Suzuki TM100 1974–1975

• Suzuki TM125 1973–1975

• Suzuki TM250 1972–1975

• Suzuki TM400 1971–1975

• Suzuki TS50 1971–1974

• Suzuki TS75 1976–1977

• Suzuki TS100 1973–1981

• Suzuki TS125 1971–1981

• Suzuki TS185 1971–1981

• Suzuki TS250 1969–1981

• Suzuki TS400 1972–1977

• Suzuki TU250 2009

• Suzuki VL800 2001–2009

• Suzuki VS700 1986–1987

• Suzuki VS750 1988–1991

• Suzuki VS800 1992–2009

• Suzuki VS1400 1987–2009

• Suzuki VX800 1990–1993

• Suzuki VZ800 2005–2009

• Suzuki XN85 1983
