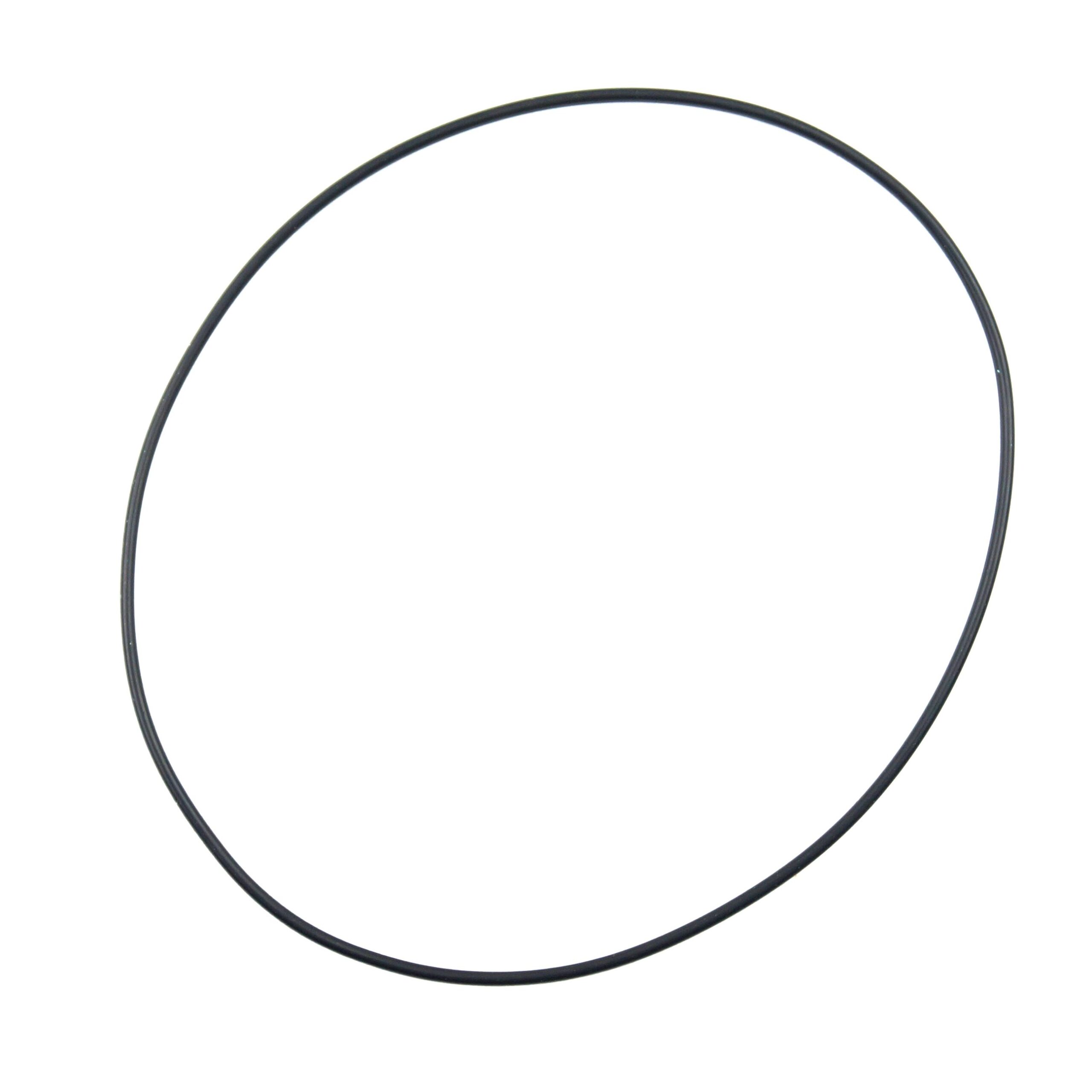

O-RING HEAD OUTER 90-10 RM125 EC125, ATHENA M752009000004 MXC125 MC125

ATHENA Cylinder Head Gasket – M752009000004

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Internal Diameter (mm) 90.00
• wire diameter (mm) 2.00

Partner OEM code

• 11148-27C11
• 831423
• 1114827C11
• 19226-MCA-A00
• 19226MCAA00
• 920551284
• 92055-1284

Vehicle compatibility

• Suzuki RM125 1990 – 2008
• Gas Gas EC 125 – 2001/2010
• KTM MXC 125 – 2002/2005
• Gas Gas MC 125 – 2001/2010
• Gas Gas HALLEY 125 – 2009

Part No. 28-517.WRP.OUT (oro2u.com)
