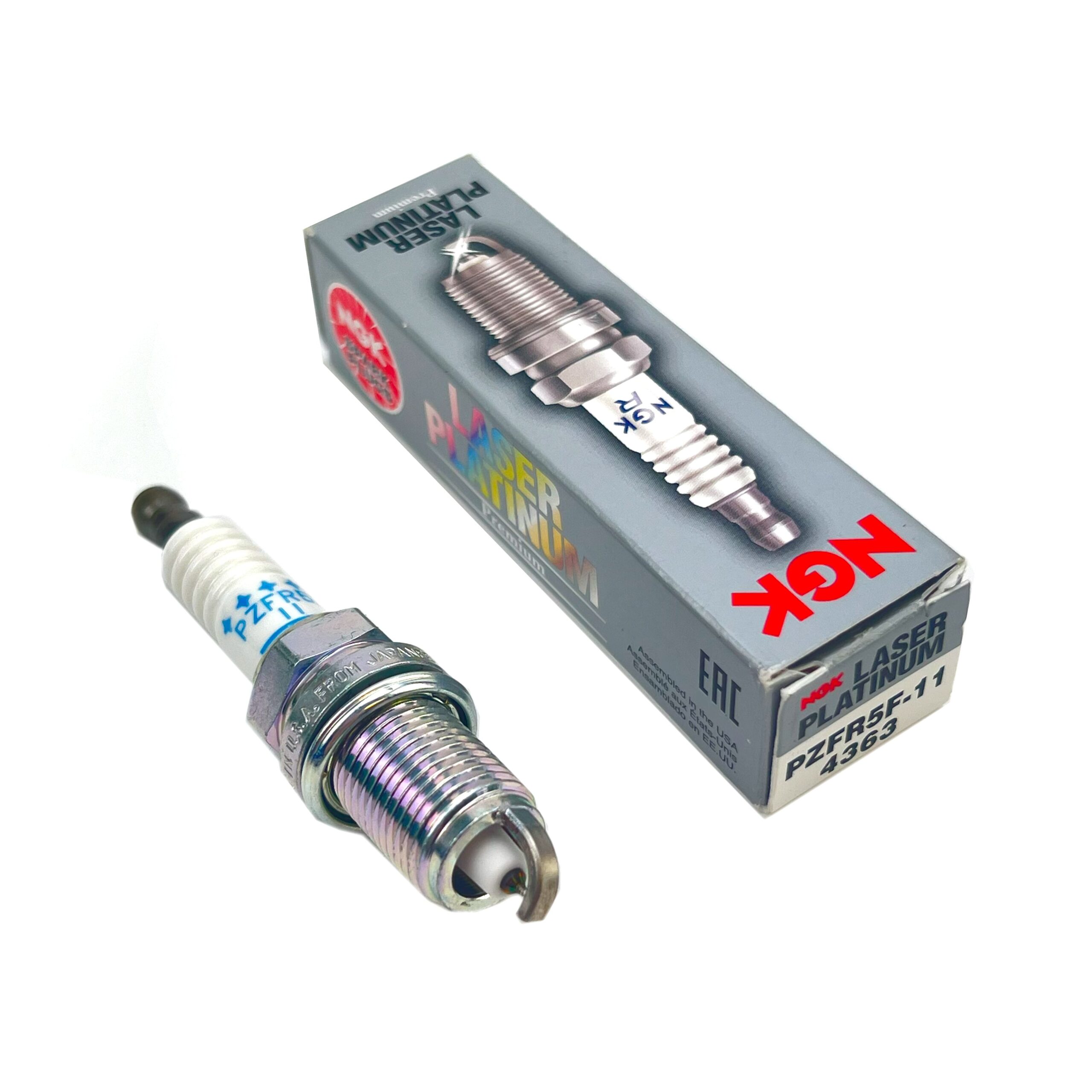

NGK SPARK PLUG PZFR5F-11, NGK 4363

Product Specifications

Shell

• Thread Diameter14mm
• Thread Pitch1.25mm
• Seat Type Gasket
• Reach19mm (3/4″)
• Hex Size5/8″ (16mm)
• Terminal Type Solid
• Overall Height ISO
• Gap.043″ (1.1mm)

Center Electrode

• Material Platinum
• Type Fine Wire
• Size1.0mm
• Projection Extended Projection

Ground Electrode

• Material Platinum
• Type Standard
• Quantity1

Specifications

• Resistor Yes
• Resistor Value5k Ohm
• Heat Range5
• Torque Specs Cast Iron: 18-25.3 lb. ft. Aluminium: 18-21.6 lb. ft.
