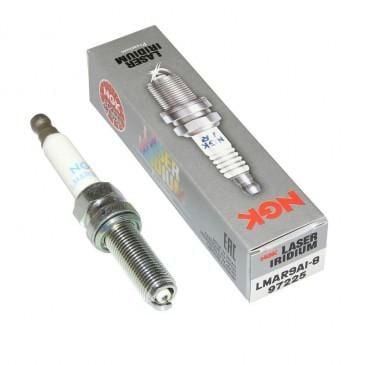

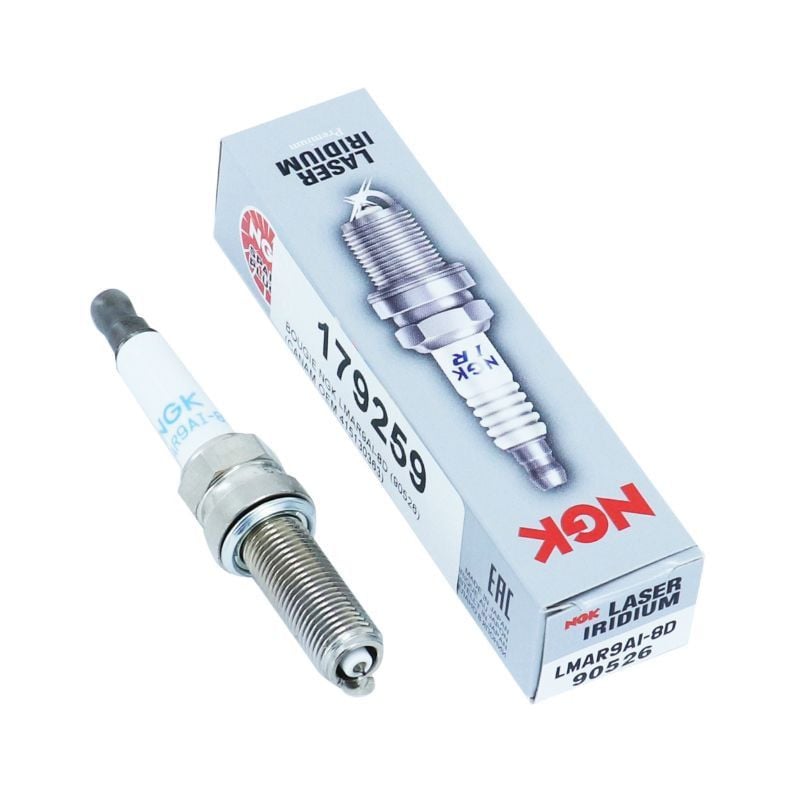

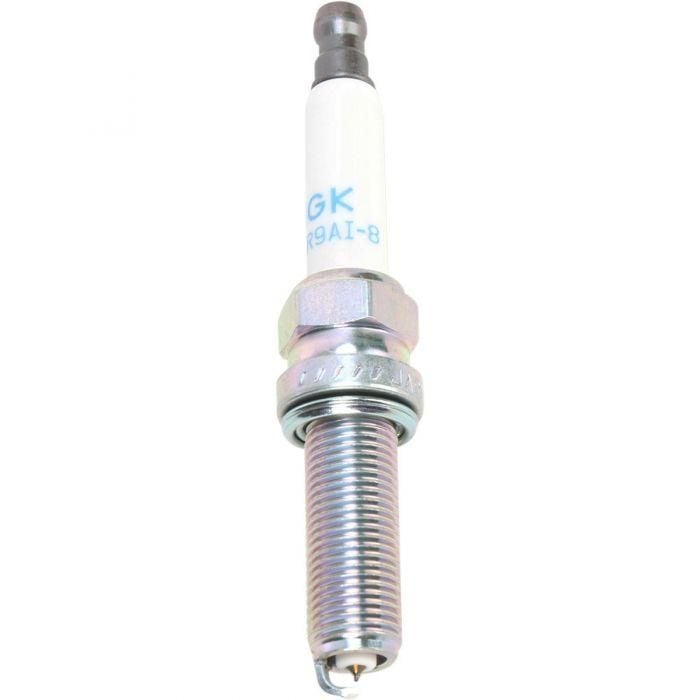

NGK SPARK PLUG NG90526 LMAR9AI-8D

NGK Single Iridium Plugs: Designed for Performance Enthusiasts



Features:

• Iridium Center Electrode
• Trivalent Metal Plating
• Corrugated Ribs
• Pure Alumina Silicate Ceramic Insulator
• Copper Core
• Triple Seals:

Specifications:

• Shell: Thread Diameter – 10mm, Thread Pitch – 1.0mm, Seat Type – Gasket, Reach – 26.5mm (1.04″), Hex Size – 9/16″ (14mm), Terminal Type – Solid, Gap – 0.031″ (0.8mm).

• Center Electrode: Material – Iridium, Type – Fine Wire, Size – 0.6mm, Projection – Projected.

• Ground Electrode: Material – Nickel, Type – Standard, Shape – Taper Cut, Quantity – 1.

• Resistor: Yes, Resistor Value – 5k Ohm, Heat Range – 9.

• Torque Specs: Cast Iron – 7.2-10.8 lb. ft., Aluminum – 7.2-8.7 lb. ft.



Part Information:

• Brand: NGK/NTK.

• Warranty: 60 Days.

• Longevity: 50k Miles.



2021

• Sea-Doo
  • FISH PRO 170 Base
  • GTI 130 Base
  • GTI SE 130 Base
  • GTI SE 170 Base
  • GTR 230 Base
  • GTX 170 Base
  • GTX 230 Base
  • Wake 170 Base
  • Wake Pro 230 Base

2020

• Husqvarna
  • 701 Supermoto Base
  • FC350 Base
  • FC450 Base
  • FX350 Base
  • FX450 Base
• Sea-Doo
  • FISH PRO 170 Base
  • GTI 130 Base
  • GTI SE 130 Base
  • GTI SE 170 Base
  • GTR 230 Base
  • GTX 170 Base
  • GTX 230 Base
  • GTX Limited 230 Base
  • Wake 170 Base
  • Wake Pro 230 Base

2019

• Can-Am
  • Maverick X3 Max Turbo Base
  • Maverick X3 Max Turbo R Base
  • Maverick X3 Max X ds Turbo R Base
  • Maverick X3 Max X rs Turbo R Base
  • Maverick X3 Turbo Base
  • Maverick X3 Turbo R Base
  • Maverick X3 X ds Turbo R Base
  • Maverick X3 X mr Turbo Base
  • Maverick X3 X mr Turbo R Base
  • Maverick X3 X rc Turbo Base
  • Maverick X3 X rc Turbo R Base
  • Maverick X3 X rs Turbo R Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 450 SX-F Base
  • 450 XC-F Base
• Ski-Doo
  • Grand Touring Limited ACE 900 Turbo Base
  • Renegade Adrenaline ACE 900 Turbo Base
  • Renegade Enduro ACE 900 Turbo Base
  • Renegade X ACE 900 Turbo Base
  • Renegade X-RS ACE 900 Turbo Base

2018

• Can-Am
  • Maverick X3 Max Turbo Base
  • Maverick X3 Max Turbo R Base
  • Maverick X3 Max X ds Turbo R Base
  • Maverick X3 Max X rs Turbo R Base
  • Maverick X3 Turbo Base
  • Maverick X3 Turbo R Base
  • Maverick X3 X ds Turbo R Base
  • Maverick X3 X mr Turbo Base
  • Maverick X3 X mr Turbo R Base
  • Maverick X3 X rc Turbo Base
  • Maverick X3 X rc Turbo R Base
  • Maverick X3 X rs Turbo R Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 450 SX-F Base
  • 450 XC-F Base

2017

• Can-Am
  • Maverick X3 Max Turbo R Base
  • Maverick X3 Turbo R Base
  • Maverick X3 X ds Turbo R Base
  • Maverick X3 X rs Turbo R Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 450 SX-F Base
  • 450 XC-F Base

2016

• Husqvarna
  • FE350 Base
  • FE350S Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 EXC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 350 XCF-W Base
  • 350 XCF-W Six Days Base
  • 450 SX-F Base
  • 450 SX-F Factory Edition Base
  • 450 XC-F Base

2015

• Husqvarna
  • FE350 Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 EXC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 350 XCF-W Base

2014

• Husaberg
  • FE350 Base
• Husqvarna
  • FE350 Base
• KTM
  • 250 SX-F Base
  • 250 XC-F Base
  • 350 EXC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 350 XCF-W Base

2013

• Husaberg
  • FE350 Base
• KTM
  • 350 EXC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 350 XCF-W Base

2012

• KTM
  • 350 EXC-F Base
  • 350 SX-F Base
  • 350 XC-F Base
  • 350 XCF-W Base

2011

• KTM
  • 350 SX-F Base
