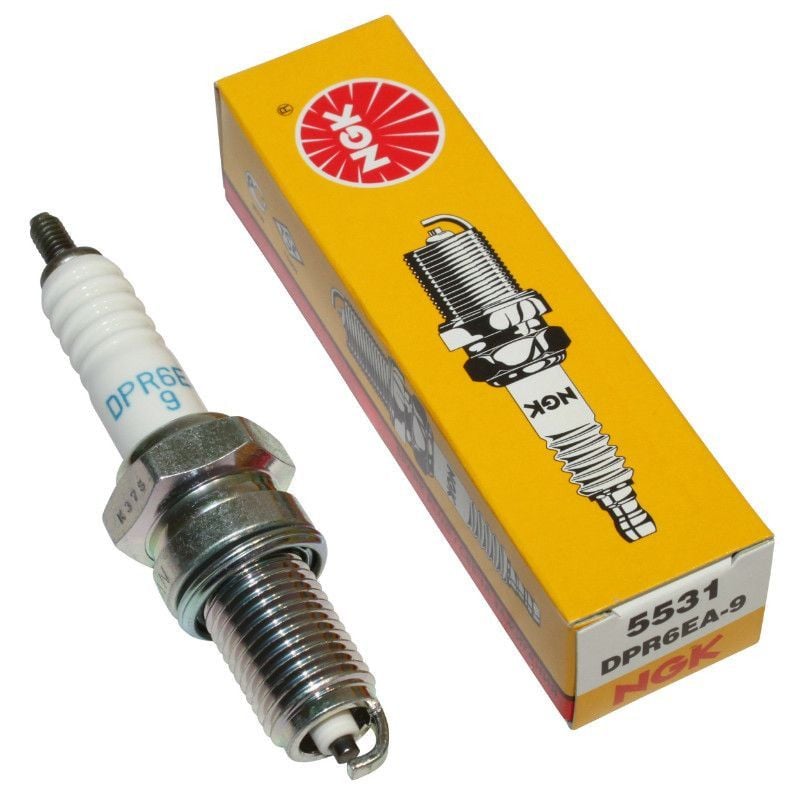

NGK SPARK PLUG DPR6EA-9 5531, NG5531 DP6EA9 1068

NGK Spark Plug – DPR6EA9

Product Features:

• NGK offers a wide heat range by using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat more quickly, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 6
• Thread Size: 12 mm
• Type: Resistor
• Units: Each
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 5531, DPR6EA9

Compatible Vehicles:

Honda Models:

• CH125 Elite: 1984
• CH150 Elite: 1985, 1987
• CH150D Elite Deluxe: 1985–1986
• CH250 Elite: 1985–1990
• CN250 Helix: 1986–1987, 1992–2007
• NH125 Aero: 1984
• NSS250 Reflex: 2001–2007
• NSS250A Reflex: 2001–2007
• NSS250AS Reflex Sport ABS: 2004–2007
• NSS250S Reflex Sport: 2004–2007
• PC800 Pacific Coast: 1989–1990, 1994–1998
• PS250 Big Ruckus: 2005–2006
• VT1100C Shadow: 1985–1986
• VT750C Shadow Aero: 2008–2009
• VT750C2 Shadow Spirit: 2007–2009

Kawasaki Models:

• VN1500J Vulcan Drifter: 1999–2000
• VN1500L Vulcan Nomad Fi: 2000–2004
• VN1500N Vulcan Classic Fi: 2000–2008
• VN1500P Vulcan Mean Streak: 2002–2003
• VN1500R Vulcan Drifter: 2001–2005
• VN1500T Vulcan Classic Fi Anniversary: 2006
• VN1600A Vulcan Classic: 2003–2008
• VN1600B Vulcan Mean Streak: 2004–2008
• VN1600D Vulcan Nomad: 2005–2008
• VN1600E Vulcan Classic: 2006
• VN1600F Vulcan Mean Streak: 2006
• VN1600G Vulcan Nomad: 2006

Triumph Models:

• Thunderbird 1600: 2010–2011
• Thunderbird 1700: 2010–2011
• Thunderbird ABS 1600: 2010–2014
• Thunderbird Commander 1700: 2014–2016
• Thunderbird LT 1700: 2014–2017
• Thunderbird SE 1600: 2010–2011
• Thunderbird Storm 1700 ABS: 2011–2017

Part Number: 37-DPR6EA-9 (oro2u.com)

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.
• Copper core aids in heat removal and improves durability.
• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm
• Reach: 19 mm (3/4″)
• Hex Size: 11/16″ (18 mm)
• Seat Type: Gasket
• Type: Resistor
• Terminal Type: Stud Threads
• Projected Tip: Yes
• Gap: .035″ (0.9 mm)
• Heat Range: 6
• Note: Does not include terminal nut. If necessary, order part #067606-0051.
