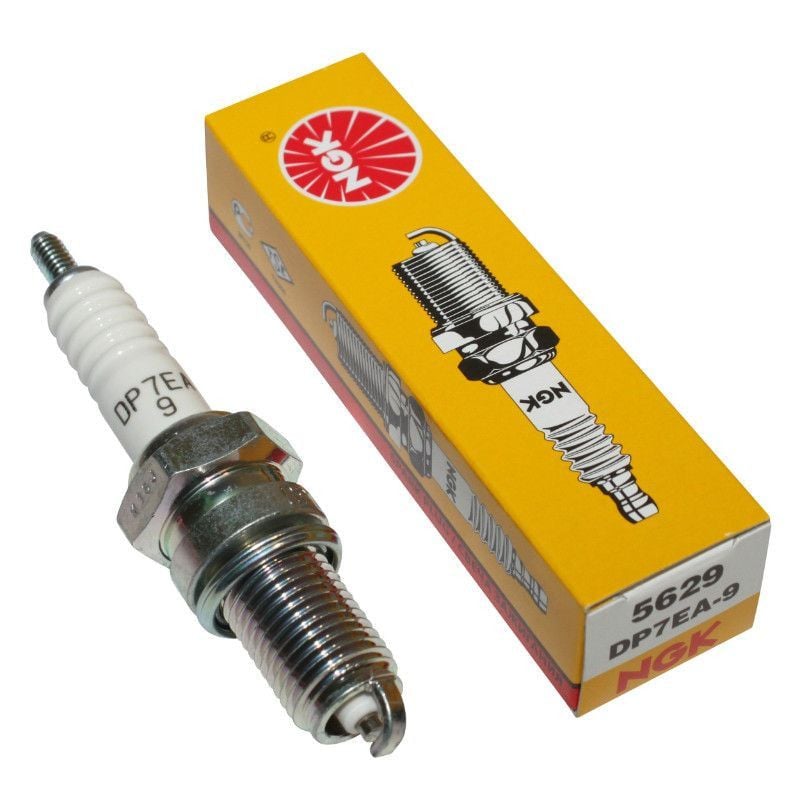

NGK SPARK PLUG DP7EA-9 5629

NGK Spark Plug – DP7EA9

Product Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat quicker, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 7
• Thread Size: 12 mm
• Type: Non-Resistor
• Units: Each
• Weight: 0.25 lbs
• Alternate/OEM Part Numbers: 5629, DP7EA9

Compatible Vehicles:

Kawasaki Models:

• VN1500B Vulcan 88 SE: 1987, 1988, 1990
• VN1500C Vulcan L: 1996, 1997
• VN700A Vulcan: 1985
• VN750A Vulcan: 1986–2006

Suzuki Models:

• LT160 Quad Runner: 2003
• LT160 Quad Sport: 2004
• LT160E Quad Runner: 1991–1992
• LT250S Quad Sport: 1989–1990
• LT-F160 Quad Runner: 1991–2001

Part Number: 37-DP7EA-9 (oro2u.com)

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.
• Copper core aids in heat removal and improves durability.
• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm
• Reach: 19 mm (3/4″)
• Hex Size: 11/16″ (18 mm)
• Seat Type: Gasket
• Type: Non-Resistor
• Terminal Type: Stud Threads
• Projected Tip: Yes
• Gap: .035″ (0.9 mm)
• Heat Range: 7
• Note: Does not include terminal nut. If necessary, order part #067606-0051.
