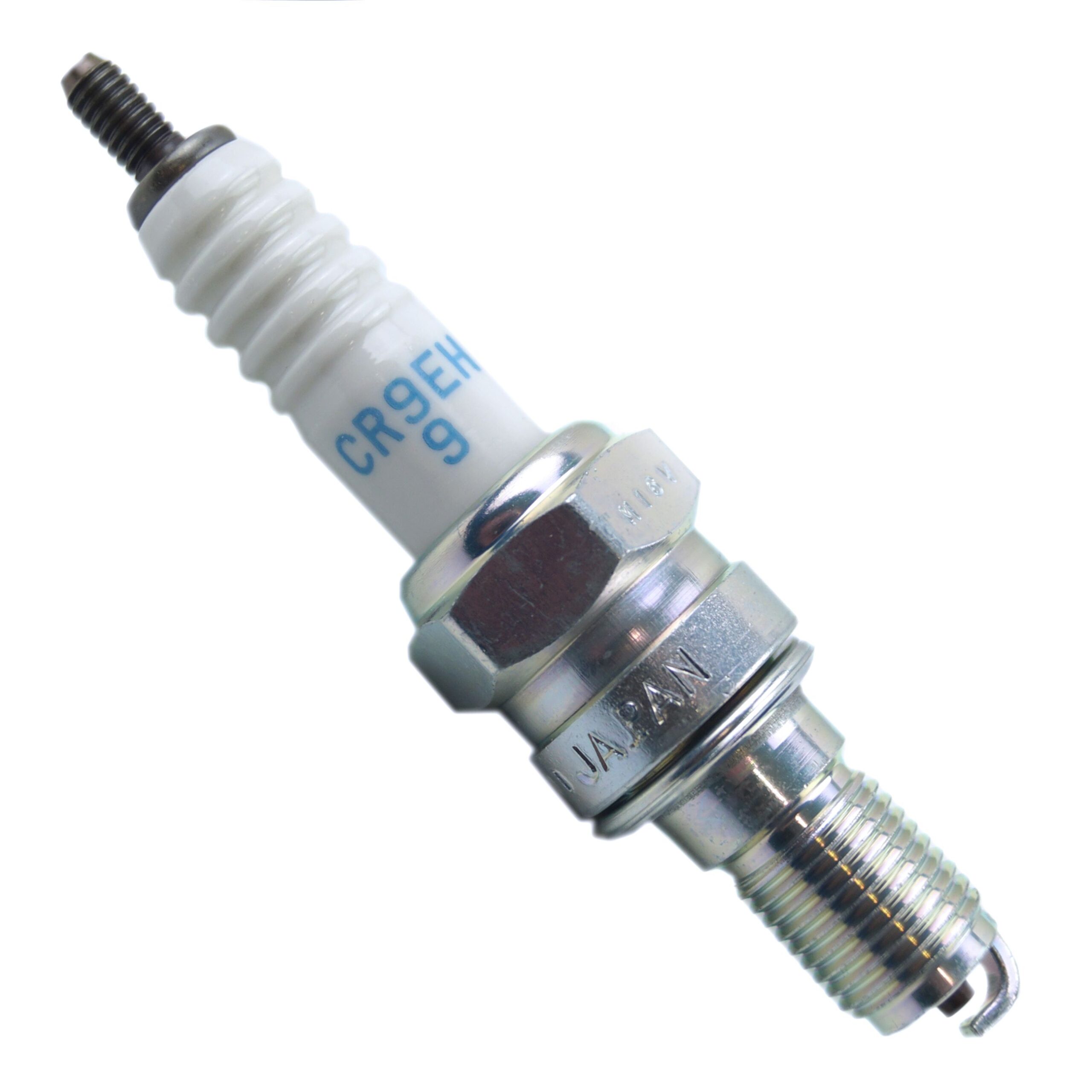

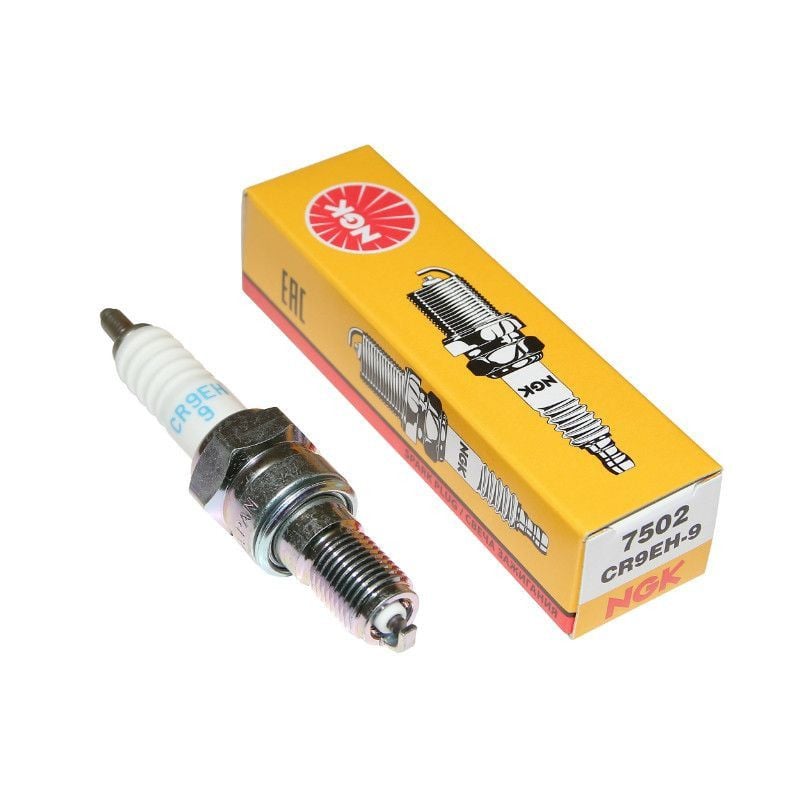

NGK SPARK PLUG CR9EH-9 7502

NGK Half Threaded Special Spark Plug for Honda – CR9EH9

Key Features:

• Copper Core: Copper wire is used for efficient heat dissipation, helping cool the electrode and insulator tip, ensuring better performance and longevity.
• Raised Pre-Ignition Rating: High-conduction copper and long nose insulator help improve heat distribution, reducing the risk of pre-ignition in high-performance engines.
• High-Performance Compatibility: Meets the demands of high-performance engines, ensuring optimum performance under high-stress conditions.

Specifications:

• Heat Range: 9
• Thread Size: 10mm
• Type: Resistor
• Units: Sold individually
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 7502, CR9EH9
• Thread: Half-threaded, 12.7mm (1/2″) threaded
• Reach: 19mm (3/4″)
• Hex Size: 5/8″ (16mm)
• Gap: 0.035″ (0.9mm)
• Seat Type: Gasket Seat
• Terminal Type: Stud Terminal Threads
• Construction: Triple sealed copper core to aid heat removal and prevent interior leakage.

Applications:

Honda Models:

• CB50R Dream 50R (2004)
• CB600F 599 (2004-2006)
• CBR600F2, F3, F4 (1991-2000)
• CBR650F (2014-2016)
• CRF150R (2007)
• ST1300 (1990-2010)
• VFR750F (1990-1997)
• XR250R (1996-2004)

Additional Information:

The NGK CR9EH9 Spark Plug is designed for engines that demand high performance and longevity. Its copper core and high-quality ceramic insulator provide superior strength and heat transfer. The half-threaded design helps ensure proper installation and secure contact for optimal spark performance. This spark plug is ideal for motorcycles and other high-performance engines where heat dissipation and reliability are critical.
