NGK SPARK PLUG BR9EG RACING 3230

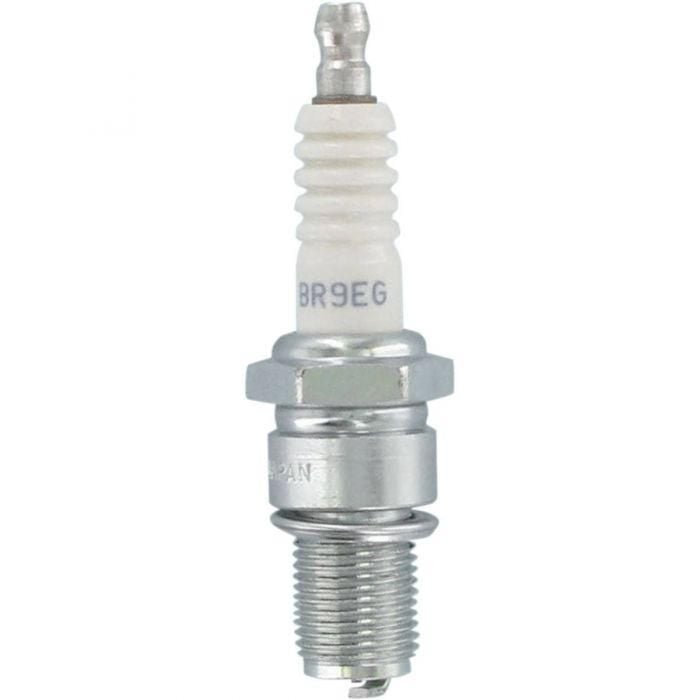

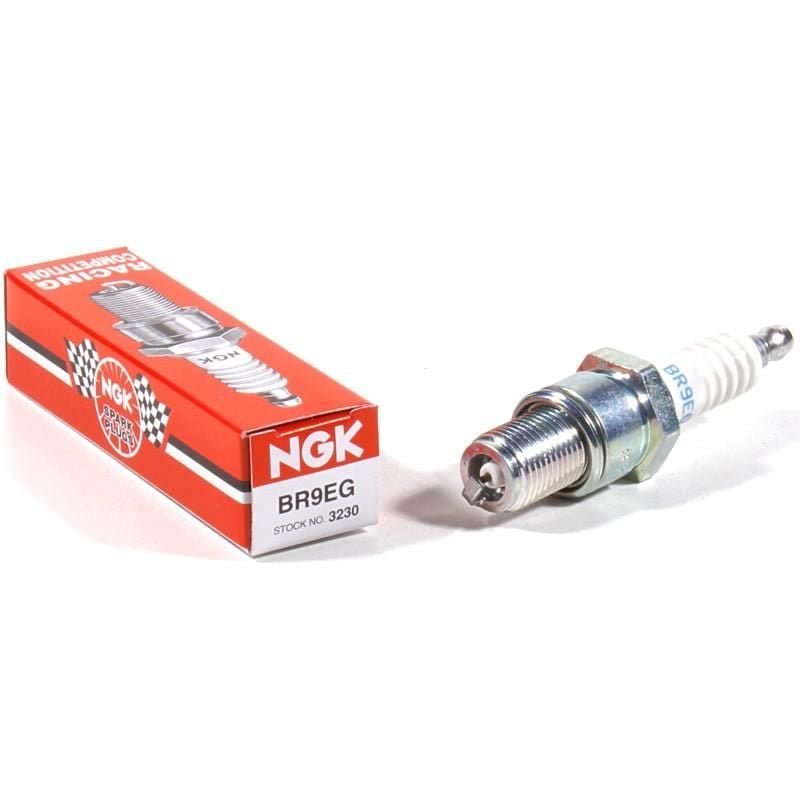

NGK Resistor Racing Type Spark Plug – BR9EG (3230)

Features:

• Wide heat range achieved using copper wire instead of conventional iron cores.
• Copper dissipates heat more efficiently, cooling the electrode and insulator tip.
• High-conduction copper and long nose insulator improve pre-ignition resistance.
• Designed for high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 9
• Thread Size: 14 mm
• Reach: 19 mm (3/4″)
• Hex Size: 13/16″ (20.6 mm)
• Seal Type: Gasket Seat
• Type: Resistor
• Electrode Material: Fine Wire (1.3 mm) Nickel Center Electrode
• Terminal Type: Solid Terminal Nut
• Gap: .024″ (0.61 mm)
• Units: Each
• Weight: 0.25 lbs
• Alternate/OEM Part Numbers: 3230, BR9EG
• Part Number: 37-BR9EG (oro2u.com)

Compatible Models:

Honda:

• 1982–2007 CR125R
• 1982–1989 CR250R

Husqvarna:

• 1999–2005 CR125
• 1998–2013 WR125

TM:

• 1997–2005 MX 125
• 1997–2008 MX 250
• 2005 MX 85 Junior
• 2005 EN 125
• 2005 SMM 125 B.D.
• 2005 SMR 125

Yamaha:

• 1983, 1998–2005 YZ125

Product Summary:

• Description: NGK 3230 BR9EG Nickel Spark Plug. Fine Wire Nickel Plug with a 14mm Thread Size, 19mm (3/4″) Reach, Gasket Seat, and a Solid Terminal Nut.
• Details: Provides enhanced ignitability and acceleration performance comparable to NGK EV and EGV types. Features a traditional ground electrode with a fine wire nickel center electrode for improved performance at an economical price. While not as durable as iridium or platinum plugs, it retains NGK’s high-quality construction for reliable operation.
