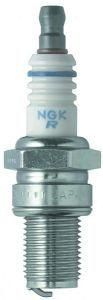

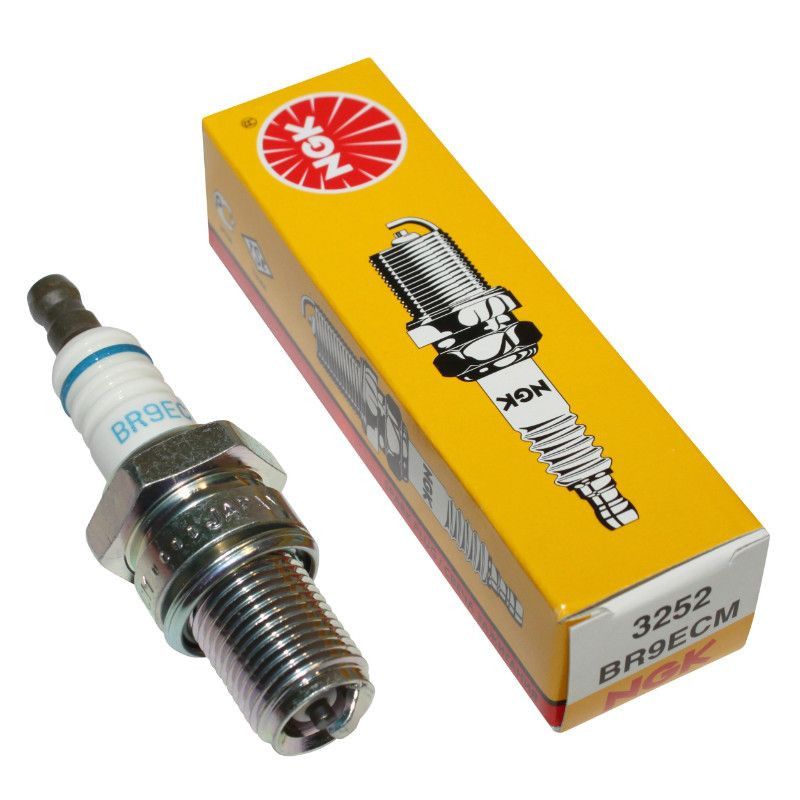

NGK SPARK PLUG BR9ECM 3252

NGK Copper Core Spark Plug – BR9ECM (3252)

Specifications:

• Thread Size: 14 mm
• Reach: 19 mm (3/4″)
• Hex Size: 20.8 mm (13/16″)
• Seal Type: Gasket Seat
• Electrode Material: Standard Nickel
• Projection Type: Non-Projected
• Terminal Type: M4 Thread (Solid Terminal Nut)
• Tip Configuration: Single Electrode
• Resistor: Yes
• Pack Size: 1 Single Unit
• Gap: .031″ (0.8 mm)
• Heat Range: 8

Features:

• Constructed for extended life and optimized performance.
• Corrugated ribs prevent flashover.
• Made with pure alumina silicate ceramic insulator for enhanced strength and superior heat transfer.
• Copper core improves heat dissipation, cooling the electrode and preventing overheating.
• Triple-sealed construction minimizes interior leakage and enhances durability.
• Compact design for reduced clearance installations.

Applications:

• Compatible with Bantam and other specified models requiring BR9ECM-type plugs.

Part Number:

• 37-BR9ECM (oro2u.com)

Description:

• Traditional Spark Plug with a low-angle ground electrode for efficient ignition. A durable and economical choice for standard and high-performance engines.
