NGK SPARK PLUG BR10EIX RACING 6801 NG

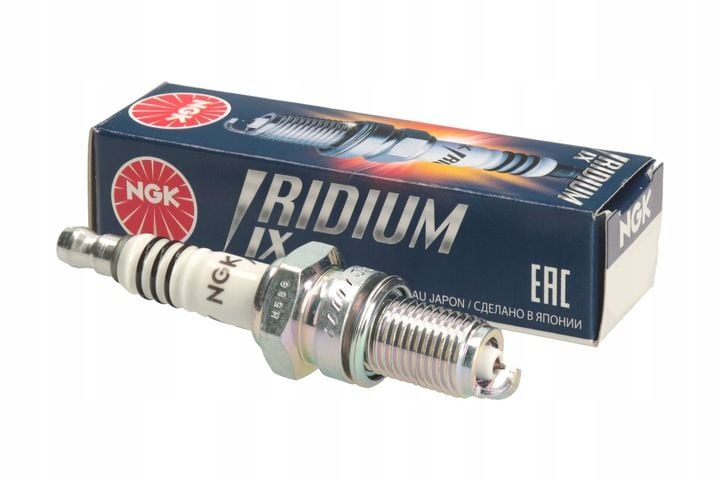

NGK Iridium IX Spark Plug – BR10EIX (6801)

Features:

• Ultimate in spark plug technology and performance from the industry leader.
• Iridium Electrode: 25% smaller than platinum and 1/4 the size of a conventional nickel electrode.
• Ultra-Small Diameter Center Electrode: Reduces voltage requirements and extends ignition system life.
• New metal shell plating provides enhanced anticorrosion qualities.
• Sold individually.

Cross-Reference:

• NGK Standard Plug Cross-Reference: BR10ES, BR10EV, B10EGP

Specifications:

• Heat Range: 10
• Thread Size: 14 mm
• Reach: 19 mm (3/4″)
• Hex Size: 13/16″ (20.6 mm)
• Seat Type: Gasket
• Type: Resistor
• Terminal Nut: Solid Terminal Nut (non-removable)
• Center Electrode: Fine Wire (0.6 mm) Iridium
• Ground Electrode: Tapered Cut Ground Electrode
• Gap: .031″ (0.8 mm)
• Units: Each
• Weight: 0.12 lbs

Alternate/OEM Part Numbers:

• 6801
• BR10EIX

Part Number: 37-BR10EIX

Compatible Vehicles:

Arctic Cat:

• Cheetah L/C 530 (1986)
• El Tigre 6000 (1986)
• Powder Special 700 (2000)
• Powder Special 700 LE (2000)
• ZR 440 Sno Pro (1998)

Ski-Doo:

• Blizzard 6500 Plus (1978)
• Blizzard 7500 Plus (1979)
• Formula III 600, 600 LT, 600 R (1995–1998)
• Formula III 700, 700 R (1998)
• Formula Mach Z (1993)
• Grand Touring 700, 700 SE (1997–1998)
• Mach 1 (1994–1998), Mach Z 779 (1994–1997), Mach Z 800 (1997–1998)
• Tundra R (2000, 2002)

Suzuki:

• RM80 (1997–2001)
• RM85 (2002–2007)
• RM85L (2003–2007)

Details:

Iridium IX Plug: Optimized for enhanced performance and durability.

• Fine wire (0.6 mm) center electrode for a brighter, stronger spark.
• Tapered cut ground electrode improves flame core growth and ignitability.
• Solid terminal top ensures durability in high-vibration applications.
• Durability: Copper core and triple-sealed insulator provide better heat transfer and prevent leakage.
