NGK SPARK PLUG BR10EG RACING 3830

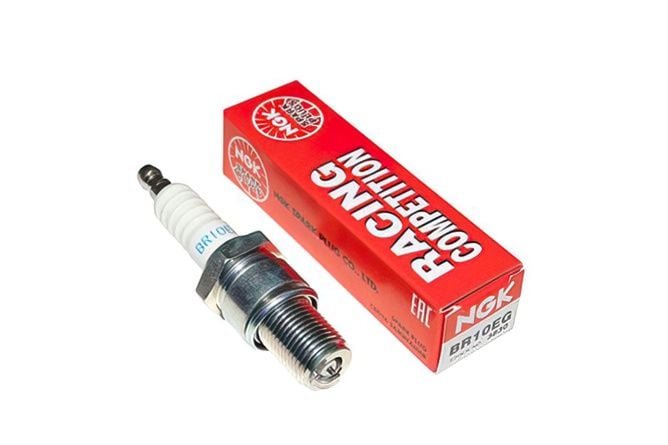

NGK Resistor Racing Type Spark Plug – BR10EG (3830)

Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat quicker, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long-nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 10
• Thread Size: 14 mm
• Reach: 19 mm (3/4″)
• Hex Size: 13/16″ (20.6 mm)
• Seat Type: Gasket
• Type: Resistor
• Terminal Nut: Solid Terminal Nut
• Center Electrode: Fine Wire (1.3 mm) Nickel
• Gap: .024″ (0.61 mm)
• Units: Each
• Weight: 0.12 lbs

Alternate/OEM Part Numbers:

• 3830
• BR10EG

Part Number: 37-BR10EG (oro2u.com)

Compatible Vehicles:

Honda:

• CR80R Models: 1985–2002
• CR80RB Expert Models: 1996–2002
• CR85R Models: 2003–2007
• CR85RB Expert Models: 2003–2007

Kawasaki:

• KX65 Models: 2000–2018
• KX65 Monster Energy Edition: 2009

KTM:

• 125 EXC: 1996
• 125 SX Models: 1995–1997

Polaris:

• Indy 700 RMK: 2001–2002
• Indy 700 RMK w/144: 2001–2002

Yamaha:

• YZ80 Models: 2000–2001
• YZ85 Models: 2002–2018

Details:

Fine Wire Nickel Plug: Optimized for improved ignitability and acceleration.

• Economical Performance: Comparable to NGK EV or EGV plugs but with less durability.
• Traditional Ground Electrode: Maintains NGK’s high-quality construction features.
