| Product Type | Spark Plug |
|---|---|
| Product Group | Ignition & Electrical Parts |

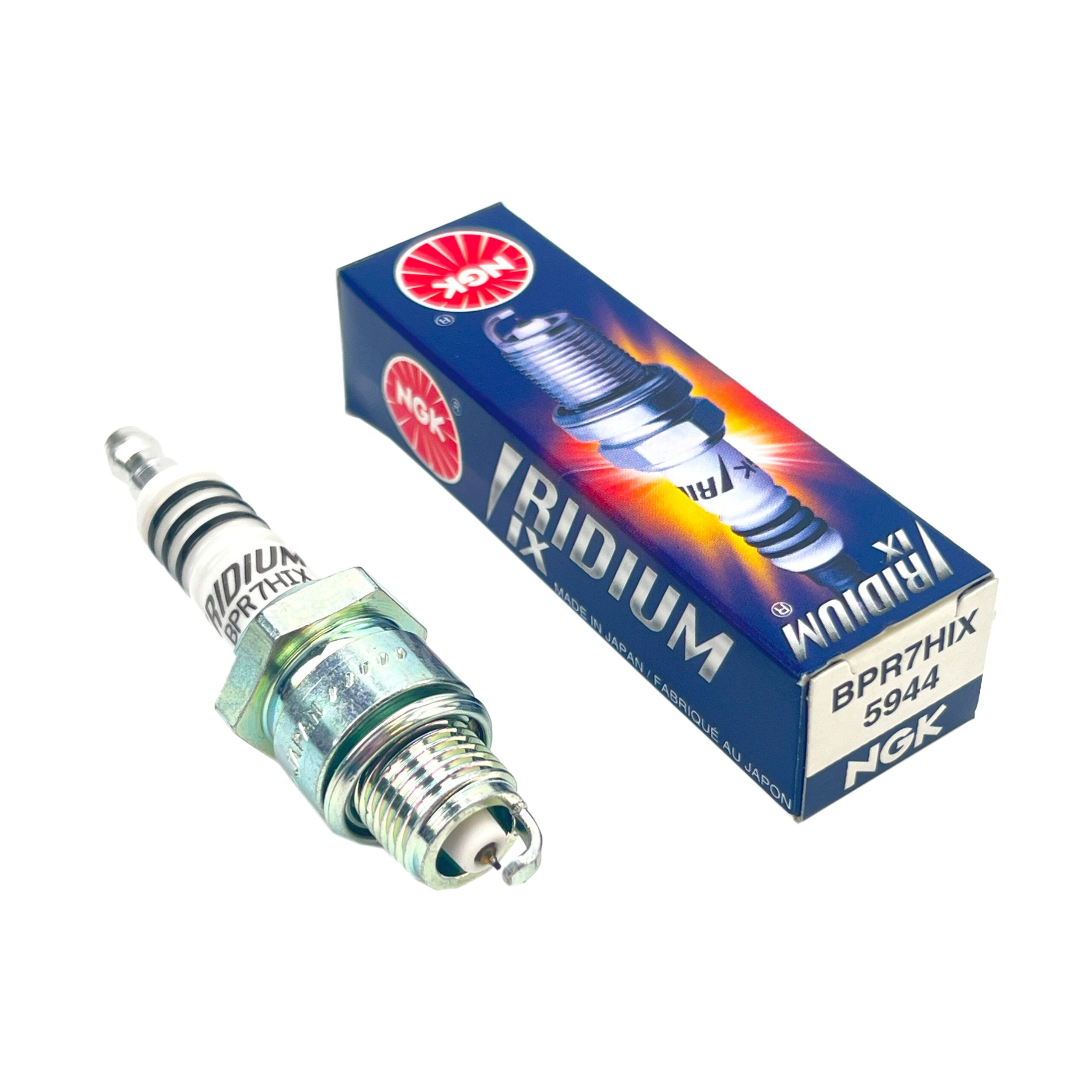

NGK SPARK PLUG BPR7HIX 5944
NGK Iridium IX Spark Plug – BPR7HIX
Features:
- Ultimate in spark plug technology and performance from the industry leader.
- Iridium Electrode: 25% smaller than platinum and 1/4 the size of a conventional nickel electrode.
- Ultra-Small Diameter Center Electrode: Reduces voltage requirements and extends ignition system life.
- New metal shell plating provides enhanced anticorrosion qualities.
- Sold individually.
Specifications:
- Heat Range: 7
- Thread Size: 14 mm
- Reach: 12.7 mm (1/2″)
- Hex Size: 13/16″ (20.6 mm)
- Seat Type: Gasket
- Type: Resistor
- Terminal Nut: Removable Terminal Nut
- Tip Configuration: Projected Tip
- Center Electrode: Fine Wire (0.6 mm) Iridium
- Ground Electrode: Tapered Cut
- Gap: .031″ (0.8 mm)
- Units: Each
- Weight: 0.12 lbs
Alternate/OEM Part Numbers:
- 5944
- BPR7HIX
Part Number: 37-BPR7HIX (oro2u.com)
Compatible Vehicles:
Arctic Cat:
- 50 Automatic: 2005, 2004
- 90 Models: 2004, 2003, 2002
Bombardier:
- DS 50: 2006–2002
- DS 90: 2006–2002
- Quest 50 & Quest 90: 2004–2002
E-Ton:
- Impuls Models (50 & 90): 2001, 2000
- Lightning 50: 2001, 2000
- Sierra 90 Models: 2005–2000
- Viper Models: 2007–2002
Kawasaki:
- KSF80 KFX: 2006–2003
Polaris:
- Predator Models (50 & 90): 2006–2004
- Scrambler Models (50 & 90): 2003–2001
- Sportsman 90: 2006–2001
- Sportsman 90 Limited Edition: 2005
Yamaha:
- CW50 Zuma: 1989
- CW50T Zuma II: 1990
- YJ50R Vino Models: 2004–2001
- YJ50RA Vino Classic: 2005–2002
- YW50 Zuma Models: 2005–2002
Details:
Iridium IX Plug: Represents the pinnacle of spark plug technology and performance.
- Stronger and harder than platinum.
- Enables an ultra-fine (0.6 mm) center electrode for reduced voltage requirements and brighter, stronger sparks.
- Tapered Ground Electrode: Reduces quenching for improved flame core growth and ignitability.
Additional Features:
- Corrugated Ribs: Prevent flashover.
- Pure Alumina Silicate Ceramic Insulator: Provides superior strength and better heat transfer.
- Copper Core: Aids in heat removal.
- Triple Seals: Prevent leakage.
- Improves performance, acceleration, and fuel efficiency.
