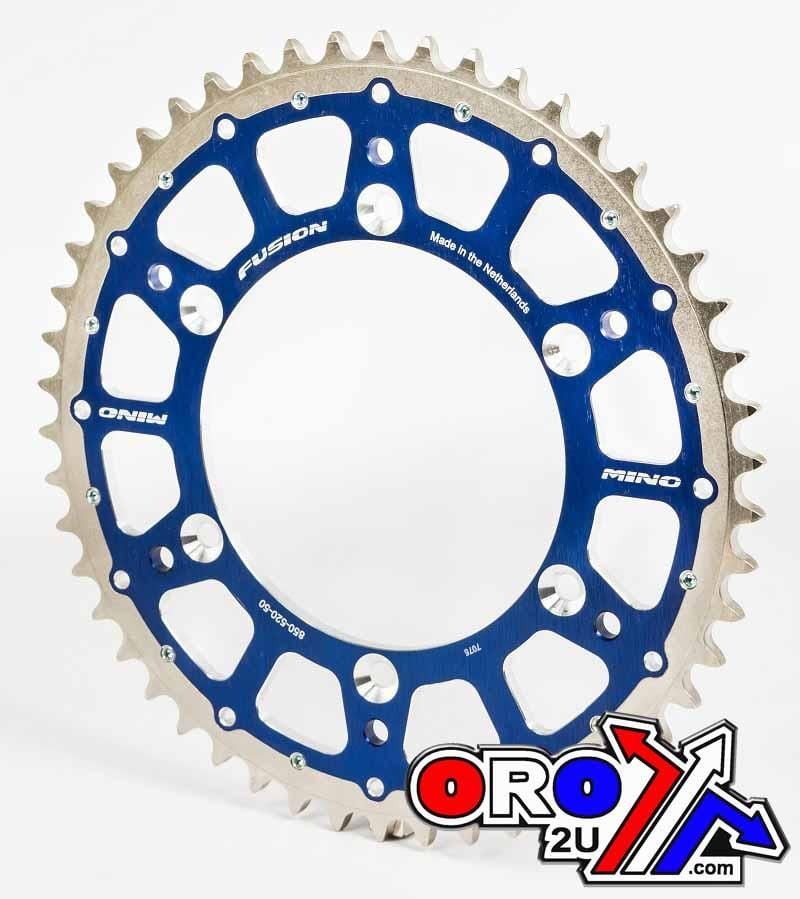

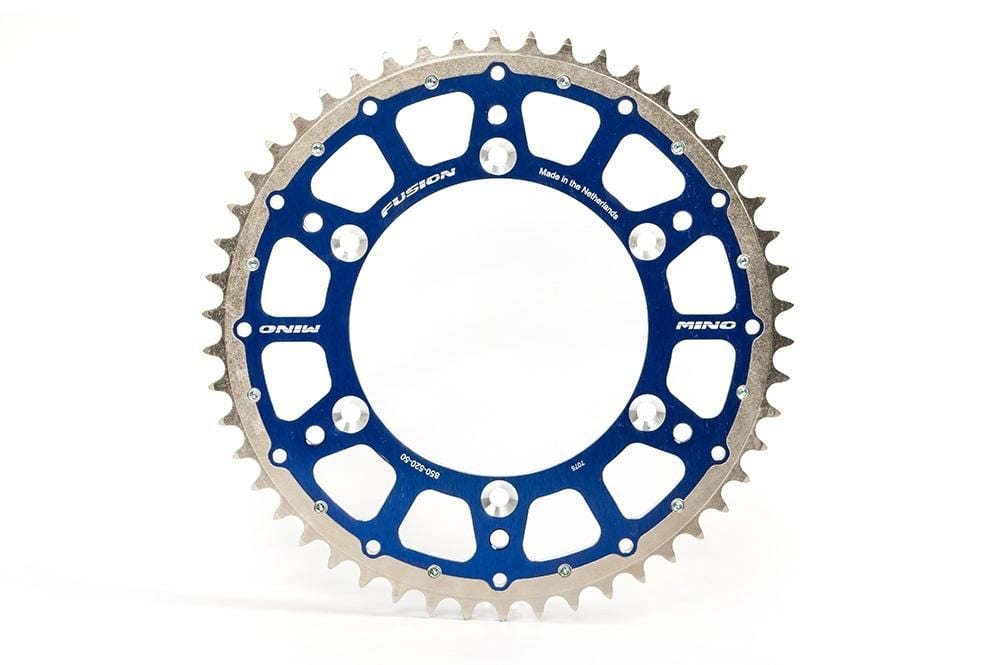

MINO REAR SPROCKET FUSION 2-RING, 23-554-48 BLUE STEEL/ALLOY

Part No. SR210-48.AF.BE (oro2u.com)

FUSION 2-RING CHAIN WHEEL REAR SPROCKET Steel+Alloy.
The longest lasting most durable off-road sprocket you can buy.
The unique flat face design keeps weight to a minimum and means the 2-RING FUSION is as narrow as a regular sprocket.
Inner Ring is high strength Ultralight 7075 T6 Aluminium. Outer Ring is Nickel Coated steel.
Outer is expanded at 200 °C and then fitted to inner, creating a permanent fusion friction bond for the life of the sprocket.

FUSION SERIES FEATURES

Inner ring in 7075 aluminum and special hardened steel outer ring combine low weight with maximum lifespan.

CAD designed, CNC machined and laser cut using state of the art technology.

Precise manufacturing interlocks both rings, eliminates all movement.

Sector optimized layout for maximum strength and lowest weight.

Inner ring is color anodized coated for extra strength and durability.

Race proven on the toughest sand tracks in the Netherlands & Belgium.

Fitment:

HONDA
CR125R 1983-2007
CR250R 1984-2008
CR500R 1984-2005
CRF150F 2003-2009
CRF230F 2003-2009
CRF230 M-9.A 2009-2010
CRF250R 2004-2023
CRF250RX 2022-2023
CRF250X 2004-2017
CRF450R 2002-2023
CRF450RX 2017-2018
CRF450RWE 2019-2022
CRF450L 2019-2020
CRF450X 2005-2019
XR650R 2000-2007
XR650L 1993-2017
