MAGURA HYDRAULIC CLUTCH 10.5, 2700186 ASSEMBLY SERIE 167

MAGURA 2700186

167 CLUTCH MASTER CYLINDER UNIVERSAL 10.50mm
[Use only mineral oil]

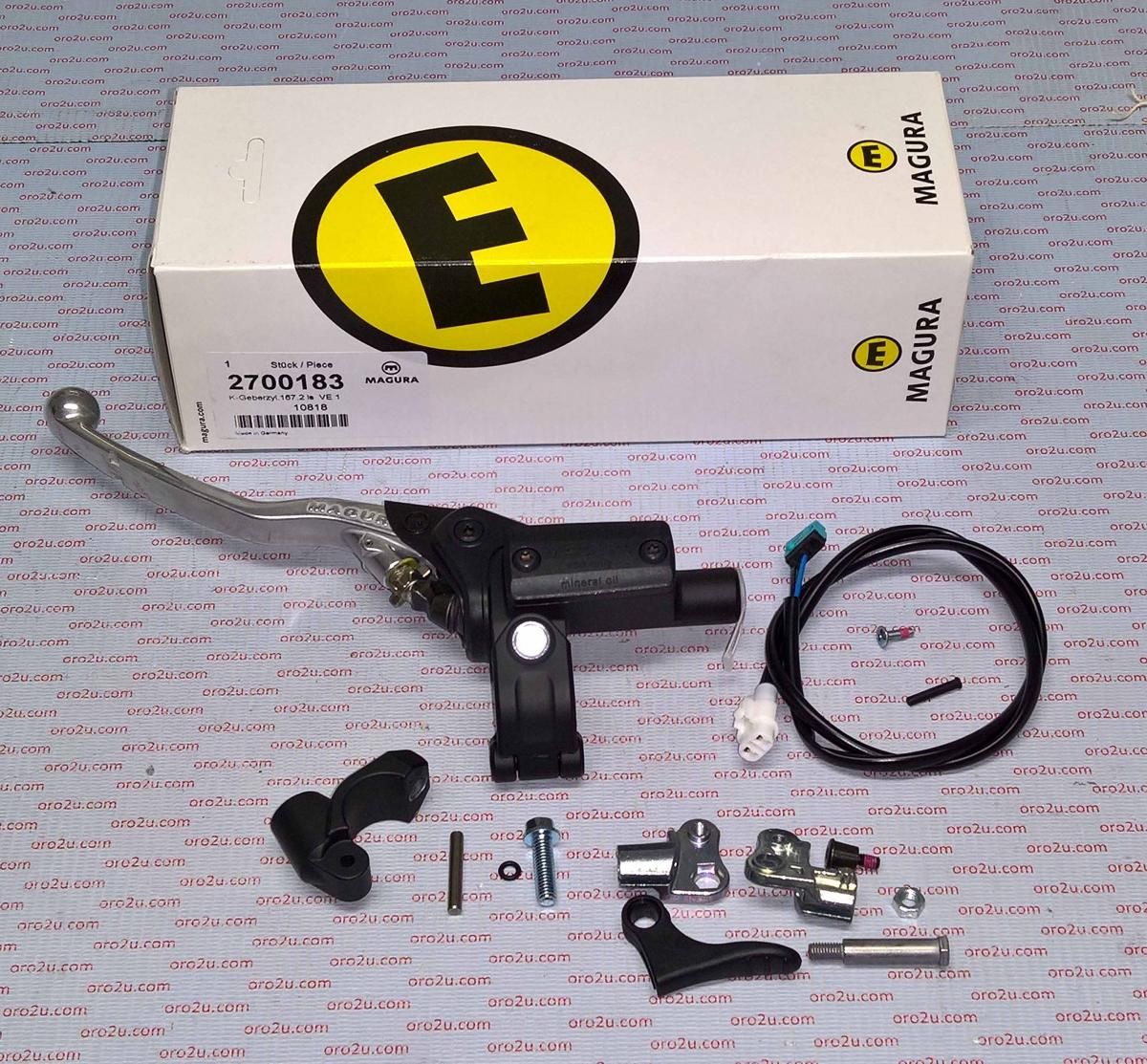

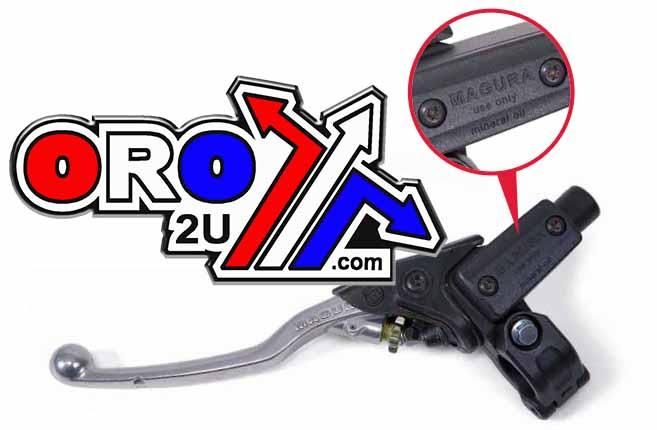

Magura 4T hydraulic clutch master cylinder for mineral oil use fold back, SILVER clutch lever fits: KTM, Husqvarna, Husaberg.

10.5mm piston bore for mineral oil use only.
Ultra strong, forged, spring loaded, unbreakable style fold back SILVER clutch lever with steel reach adjust screw. Includes hot start lever with cable socket plate and threaded cable socket plate for KTM, Husqvarna, Husaberg threaded hot start cable.

Off Road Master Cylinder| Piston dia. 9.5mm | Supplied with additional decompression lever | Mineral oil only | One piece aluminium cylinder with reservoir | Max stroke 13.8mm | Lever ratio 1:4 | Tubing fitting M10x1 | Black body with silver lever blade 146mm | includes optional mirror mounting bracket and switch
MAGURA 2700186

Part No. 13-7940.MA (oro2u.com)
