LIFAN 125CC PIT BIKE ENGINE MANUAL WITH KICKSTART AND GEAR LEVER NO CARB OR ELECTRICS INCLUDED

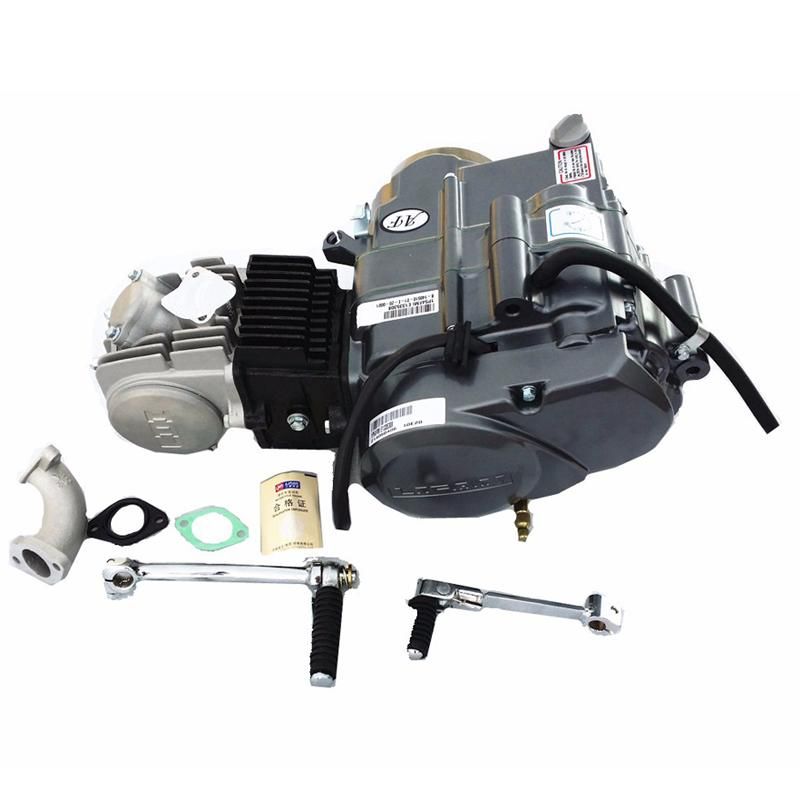

LIFAN 125CC PIT BIKE/MONKEY BIKE ENGINE

Includes:

• Kick start
• Gear Lever
• Carburetor Manifold

Please note: This is a brand new engine and will require the following break-in procedure,

• 10 Minutes running at idle.
• 15 Minutes of riding not exceeding 1/2 throttle.
• 15 Minutes of riding not exceeding 3/4 throttle.

Once the running-in procedure has been completed, it is recommended that the oil is changed and a full check of the engine is completed.

• MODEL: LIFAN
• DISPLACEMENT: 119.7CC
• NET WEIGHT: [Insert Net Weight]
• MAX POWER: 9HP @ 7500 RPM
• MAX TORQUE: 8NM @ 5000 RPM
• COMPRESSION RATIO: 9.0:1
• BORE & STROKE: 52.4mm X 55.5mm
• Engine Oil: 900ml, 15W/40
