INDEPENDENT SUSPENSION POLARIS, ALLBALLS 50-1115 REPAIR KIT, 4 x 5020826, 8 x 5434548, 5439270, 1 x 5134616 1 x 5134549

Independent Rear Suspension Repair Kit – ALLBALLS 50-1115

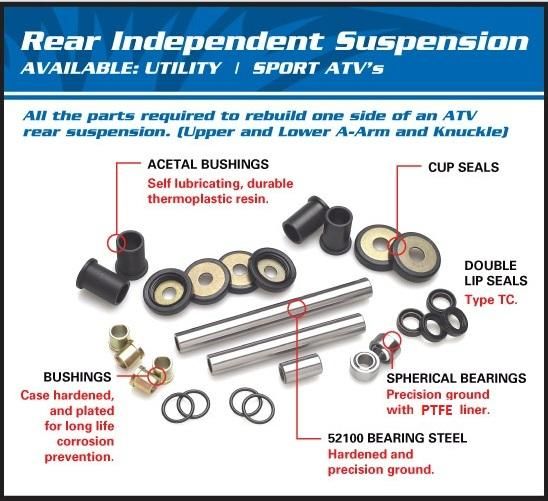

• Cost-effective kit containing all of the parts required to rebuild one side of an ATV rear suspension
• Includes all bearings, bushings, seals, shafts, and components to repair the rear upper and lower A-arm and knuckle

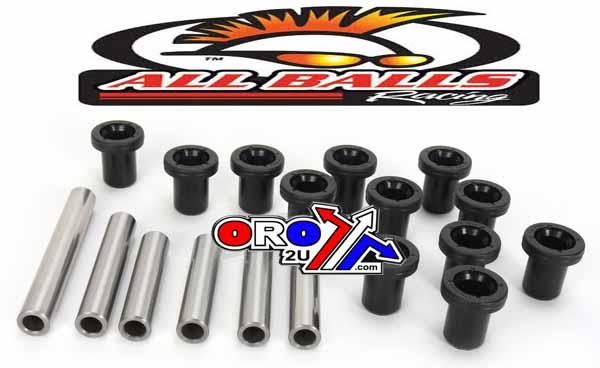

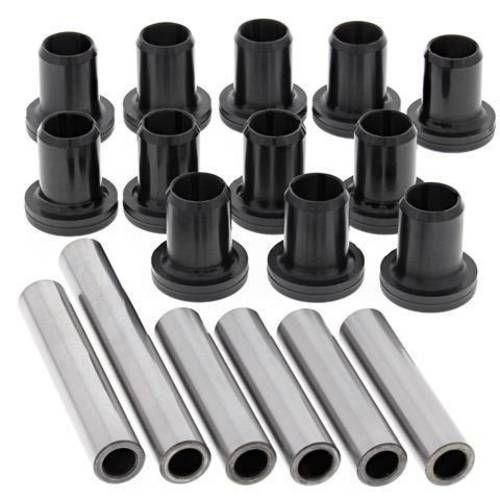

Kit Contents:

• Delrin Bushing: 12
• Needle Bearing Shaft: 1
• Needle Bearing Shaft: 1
• Needle Bearing Shaft: 4
• Part No. 17-8779.AB (oro2u.com)

Cross reference numbers:

• 4 x Shaft A-Arm Short 5020826
• 8 x Bushing-A-Arm-Short BLK 5434548, 5439270
• 1 x Shaft-A-Arm Lower 5134616
• 1 x Shaft-A-Arm Upper 5134549

Rear Independent Suspension Kit (One Side) for Polaris:

• LSV Electric 4×4 11-12
• Ranger 2×4 500 05-09, Ranger 325 ETX 15, Ranger 4×4 400 10-14
• Ranger 4×4 500 04-06, 500 Crew 11-13, 500 EFI 06-13
• Ranger 4×4 700 05-09, 700 Crew 08-09
• Ranger 4×4 800 EFI 10-14, 800 EFI Crew 10-14, 800 EFI Midsize 13-14
• Ranger 4×4 900 Diesel 11-14, 900 Diesel Crew 12-14
• Ranger 6×6 700 EFI 08-09, 6×6 800 10-16
• Ranger Diesel INTL 14, Ranger EV 4×4 10-18, Ranger XP 800 12

Cross reference numbers ONLY:
0430-0826
