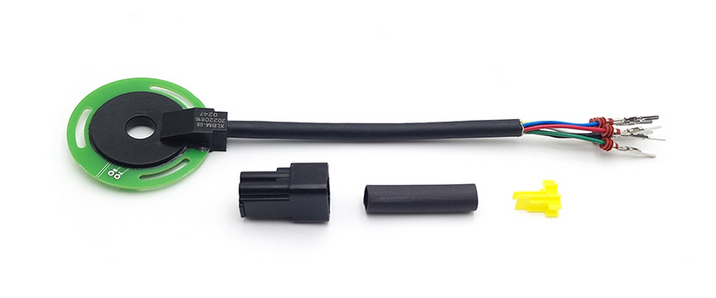

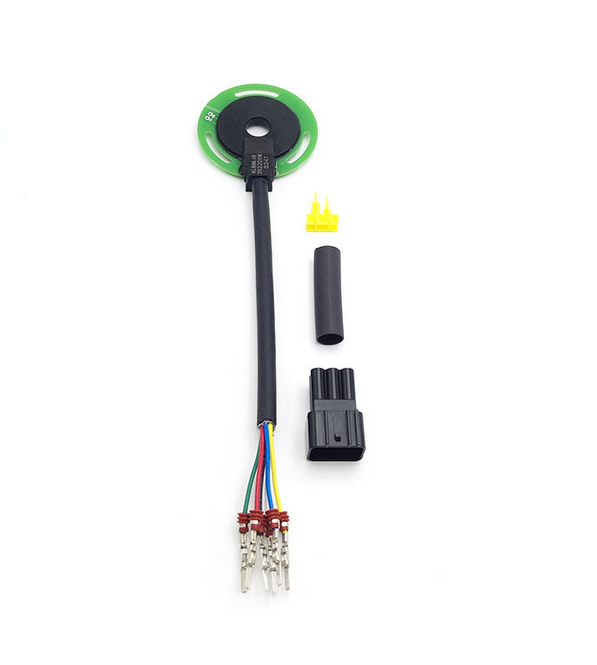

HALL SENSOR ASSEMBLY MOTOR POSITION DISK SURRON LIGHT BEE X

This component functions as the motor hall sensor assembly for the Sur-Ron Light Bee and Light Bee?X, responsible for monitoring rotor position and ensuring smooth motor commutation.

Features

• Detects rotor position via three hall-effect sensors under a magnet-embedded disk, enabling precise motor timing
• Plug-and-play replacement compatible with OEM Sur-Ron motors
• Helps resolve issues such as stuttering, reverse operation or startup failure due to hall sensor faults

Specifications

• Sensor disk diameter approximately 25.5?cm, cable length approx. 6?cm
• Standard connector: 6-pin plug linking controller power +5?V, ground, and three signal wires

Vehicle Fitments

• Light Bee
• Light BeeX
