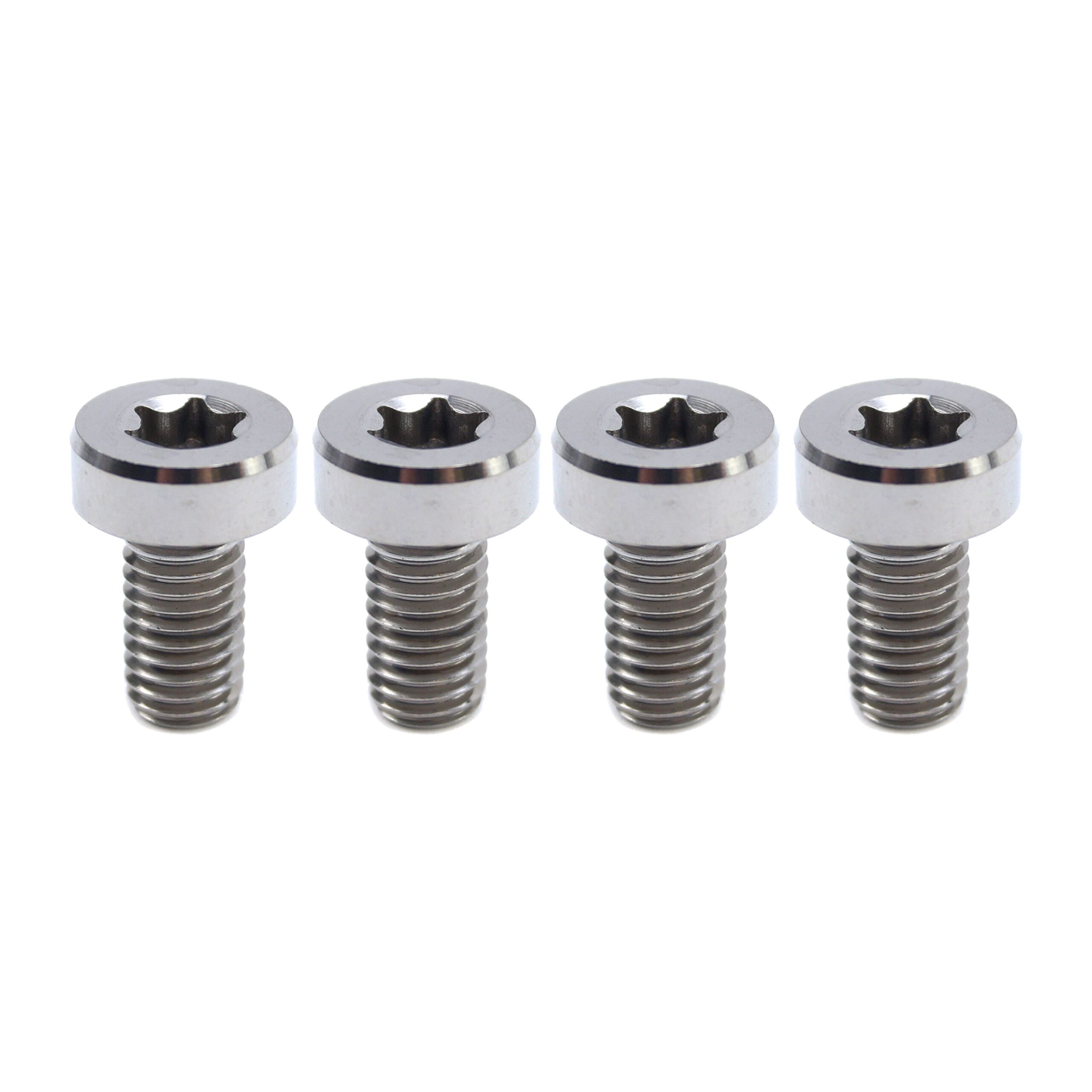

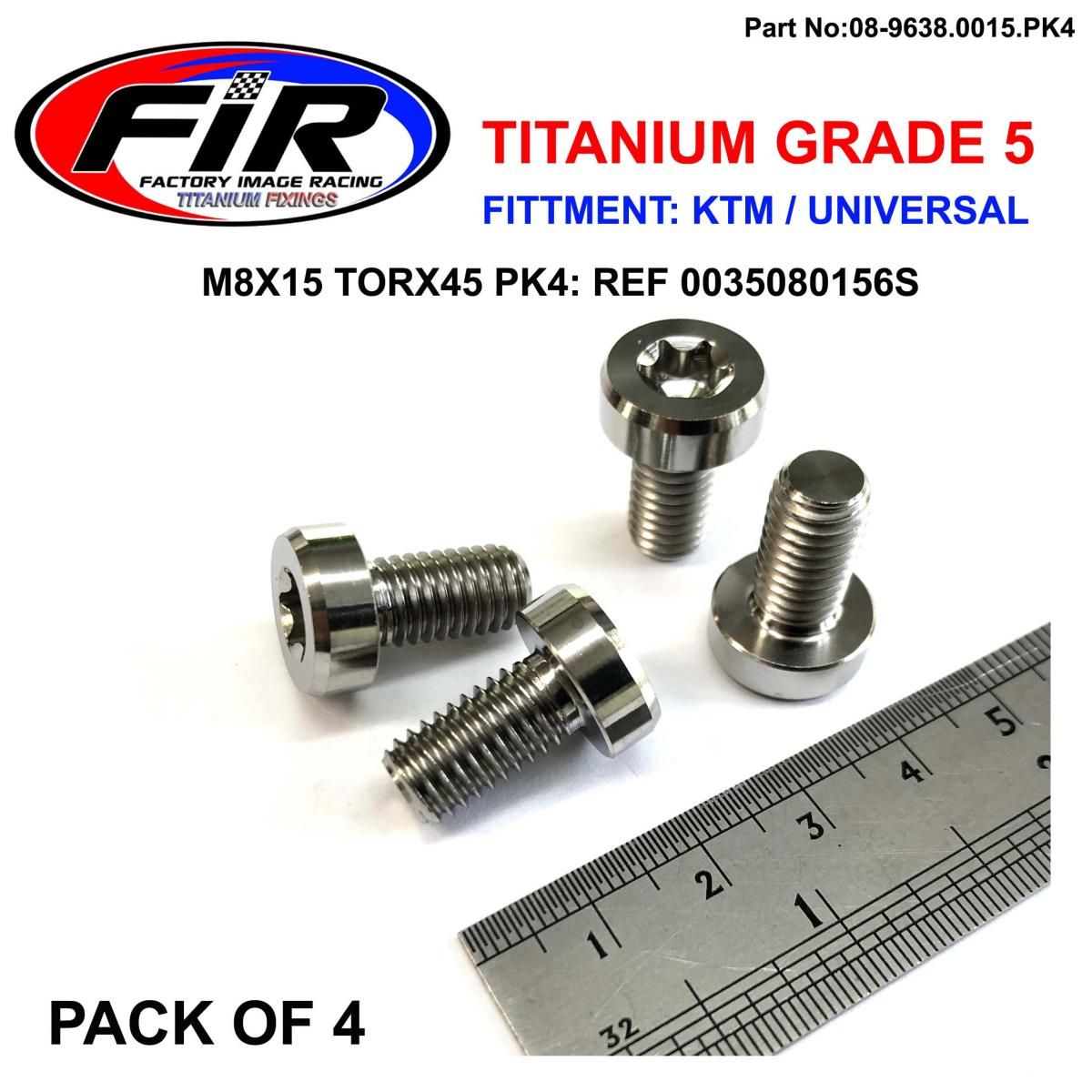

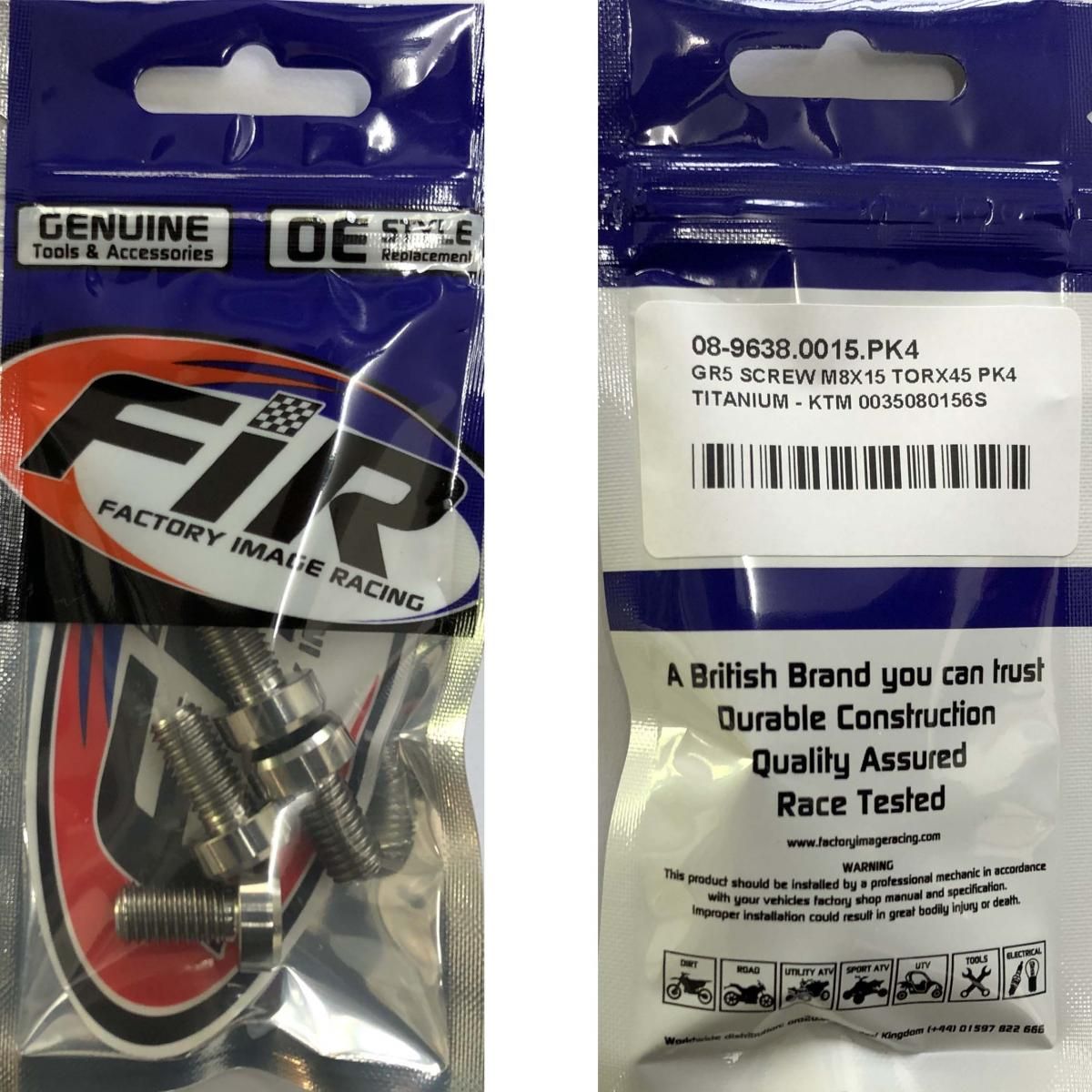

GR5 SCREW M8X15 TORX45 PK4, TITANIUM – KTM 0035080156S

TITANIUM GRADE 5

KTM FACTORY LOOK ROUND HEAD BOLTS WITH TORX 45

• Material: Grade 5 (6Al/4V)
• Thread D: M8

• Pitch P: M Coarse 1.25mm
• Overall length L: 15mm
• Thread length : 15mm

• Head Torx : T45
• Head Type : Round

• Flange OD:14.20mm
• Pack size : 4


CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9638.0015.PK4 (oro2u.com)

Cross reference numbers >0035080156S

FITTMENT:

2015 250 SX-F Factory Edition – Frame
      2015 450 SX-F Factory Edition – Frame
      2016 125 SX – Frame
      2016 150 SX – Frame
      2016 250 SX-F – Frame
      2016 250 SX-F Factory Edition – Frame
      2016 250 XC-F – Frame
      2016 350 SX-F – Frame
      2016 350 XC-F – Frame
      2016 450 SX-F – Frame
      2016 450 SX-F Factory Edition – Frame
      2016 450 XC-F – Frame
      2017 125 SX – Frame
      2017 150 SX – Frame
      2017 150 XC-W – Frame
      2017 250 EXC-F – Frame
      2017 250 SX – Frame
      2017 250 XC-W – Frame
      2017 300 XC – Frame
      2017 300 XC-W – Frame
      2017 300 XC-W Six Days – Frame
      2017 350 EXC-F – Frame
      2017 450 EXC-F Six Days – Frame
      2017 500 EXC-F – Frame
      2018 150 XC-W – Frame
      2018 250 EXC-F – Frame
      2018 250 SX – Frame
      2018 250 XC – Frame
      2018 250 XC-W – Frame
      2018 250 XC-W TPI – Frame
      2018 300 XC – Frame
      2018 300 XC-W – Frame
      2018 300 XC-W Six Days – Frame
      2018 350 EXC-F – Frame
      2018 450 SX-F Factory Edition – Frame
      2018 500 EXC-F – Frame
      2018 85 SX – Frame
      2019 125 SX – Frame
      2019 150 SX – Frame
      2019 150 XC-W – Frame
      2019 250 EXC-F – Frame
      2019 250 SX – Frame
      2019 250 SX-F – Frame
      2019 250 XC-F – Frame
      2019 250 XC-W TPI – Frame
      2019 300 XC-W TPI – Frame
      2019 350 EXC-F – Frame
      2019 350 SX-F – Frame
      2019 350 XC-F – Frame
      2019 450 EXC-F SIX DAYS – Frame
      2019 450 SX-F – Frame
      2019 450 SX-F FACTORY EDITION – Frame
      2019 450 XC-F – Frame
      2019 85 SX 17_14 – Frame
      2019 85 SX 19_16 – Frame
      2020 125 SX – Frame
      2020 150 SX – Frame
      2020 150 XC-W TPI – Frame
      2020 250 SX – Frame
      2020 250 SX-F – Frame
      2020 250 XC TPI – Frame
      2020 250 XC-F – Frame
      2020 250 XC-W TPI – Frame
      2020 300 XC TPI – Frame
      2020 300 XC-W TPI – Frame
      2020 300 XC-W TPI ERZBERGRODEO – Frame
      2020 300 XC-W TPI SIX DAYS – Frame
      2020 350 EXC-F – Frame
      2020 350 SX-F – Frame
      2020 350 XC-F – Frame
      2020 450 EXC-F – Frame
      2020 450 SX-F – Frame
      2020 450 XC-F – Frame
      2020 500 EXC-F – Frame
      2020 500 EXC-F SIX DAYS – Frame
      2020 85 SX 17_14 – Frame
      2020 85 SX 19_16 – Frame
