| Alternate SKU's | 3B4-11181-00-00, 93210-96601-00, 1S3-11351-00-00, 1S3-15451-00-00, 1S3-15462-00-00, 1S3-12428-00-00, 5H0-12119-00-00, 3YF-14613-01-00, 5LP-13329-00-00, 28-650.NT |
|---|

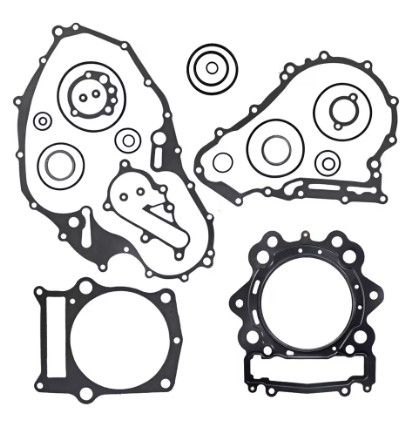

GASKET FULL SET 2006-2014 YAMAHA RAPTOR YFM700R
This complete gasket set provides all essential components required for a comprehensive engine rebuild. Built to OEM specifications using high-quality materials, it ensures long-lasting sealing performance for both top and bottom end applications.
Features
- Includes all essential gaskets, O-rings, and washers for both top and bottom end rebuilds
- Manufactured to meet or exceed OEM specifications
- Constructed from high-quality materials for durability and reliability
- Direct OEM replacement
- Easy installation; professional assistance recommended if unsure
Specifications
- Application: Complete engine rebuild
- Components included: Gaskets, O-rings, washers
- Compatibility: Top and bottom end
Cross-Reference OEM Part Numbers
- 28-650.ATH
- 28-650.NT
- 3B4-11181-00-00 Gasket, Cylinder Head 1 (included in top end gasket kit)
- 93210-96601-00 O-Ring (included in top end gasket kit)
- 93210-78544-00 O-Ring (included in top end gasket kit)
- 1S3-11351-00-00 Gasket, Cylinder (included in top end gasket kit)
- 1S3-15451-00-00 Gasket, Crankcase Cover 1
- 1S3-15462-00-00 Gasket, Crankcase Cover 3 (included in clutch plate kit)
- 1S3-12428-00-00 Gasket, Housing Cover 2
- 5H0-12119-00-00 Seal, Valve Stem
- 3YF-14613-01-00 Gasket, Exhaust Pipe (included in top end gasket kit)
- 5LP-13329-00-00 Gasket, Pump Cover
Vehicle Fitments
-
Yamaha YFM700R Raptor 2006–2014
