FUEL VALVE KIT YFM400FB BIG BEAR 08-12, Fuel Star FS101-0047 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

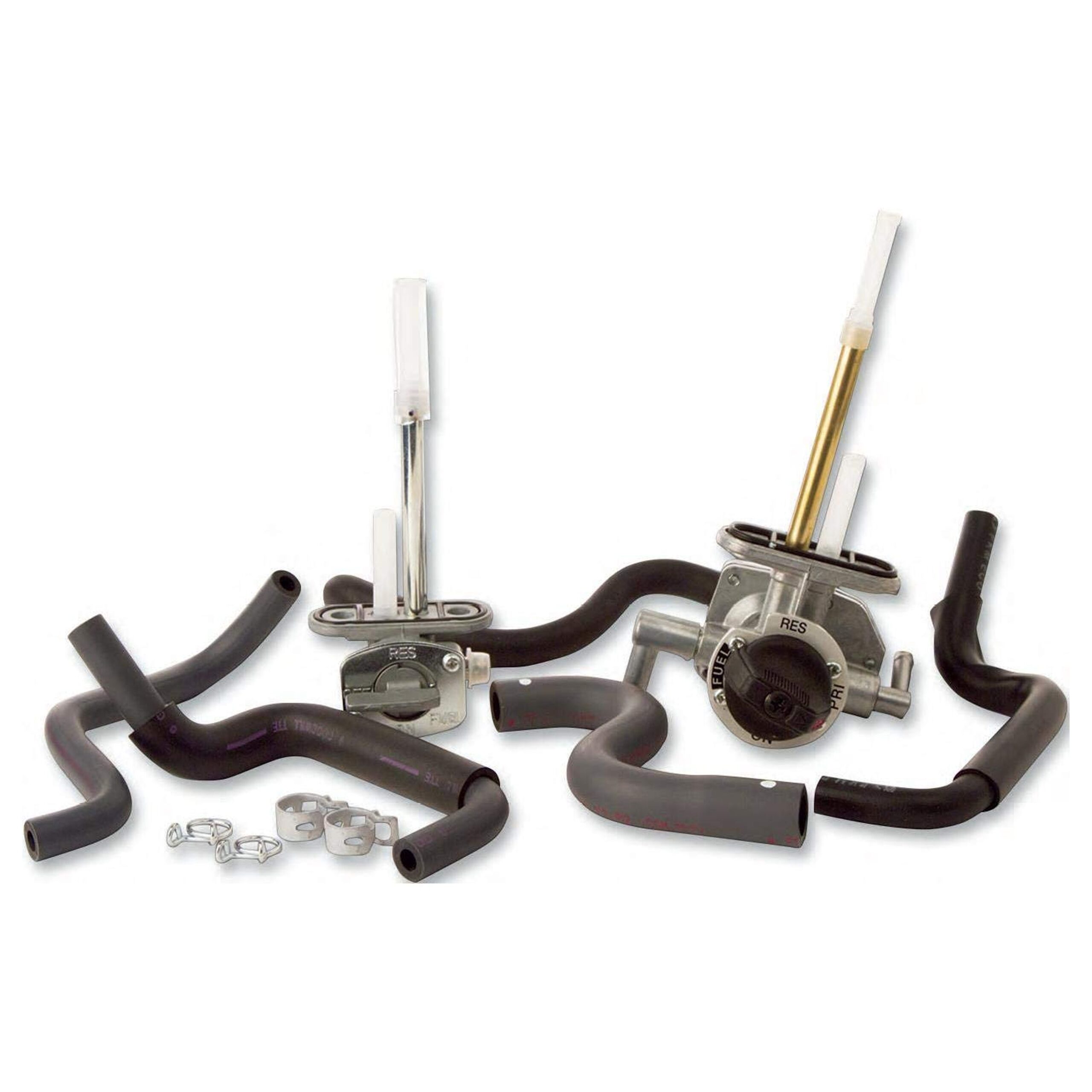

The Fuel Star FS101-0047 Fuel Valve Kit is a complete replacement petcock assembly designed for 2008–2012 Yamaha YFM400FB Big Bear 4×4 IRS models, including Hunter Edition variants. This kit includes all required components for installation and is manufactured to match OEM specifications.

Features

• Complete replacement fuel petcock assembly

• Includes fuel line, clamps, spacers, and mounting hardware

• Direct-fit design for specified Yamaha ATV models

• Sold individually

• No installation instructions included

Specifications

• (1) Fuel valve assembly

• (1) Fuel line

• (2) 6mm-1.00 x 15mm Phillips washer head screws

• (2) Hose clamps

• (2) Mounting spacers

Cross-Reference OEM Part Numbers

• 3JN-24500-02-00 (Fuel Cock Assy)

• 3JN-24500-10-00 (Fuel Cock Assy)

• 3AJ-24534-01-00 (Seal, Cock)

• 98507-03008-00 (Screw, Pan Head)

• 98517-03008-00 (Screw, Pan Head)

• 4X8-24512-00-00 (O-Ring)

• 90202-05193-00 (Washer, Plate)

• 90202-05187-00 (Washer, Plate)

• 90149-06108-00 (Screw)

• 90445-11052-00 (Hose L170)

• 90467-100A1-00 (Clip)

Vehicle Fitments

• 2008 Yamaha YFM400FB Big Bear 4×4 IRS

• 2009 Yamaha YFM400FB Big Bear 4×4 IRS

• 2010 Yamaha YFM400FB Big Bear 4×4 IRS

• 2011 Yamaha YFM400FB Big Bear 4×4 IRS

• 2012 Yamaha YFM400FB Big Bear 4×4 IRS

• 2008 Yamaha YFM400FBH Big Bear 4×4 IRS Hunter Edition

• 2009 Yamaha YFM400FBH Big Bear 4×4 IRS Hunter Edition

• 2010 Yamaha YFM400FBH Big Bear 4×4 IRS Hunter Edition

• 2011 Yamaha YFM400FBH Big Bear 4×4 IRS Hunter Edition

• 2012 Yamaha YFM400FBH Big Bear 4×4 IRS Hunter Edition
