FUEL VALVE KIT YFM400FA Kodiak 00-02, Fuel Star FS101-0052 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

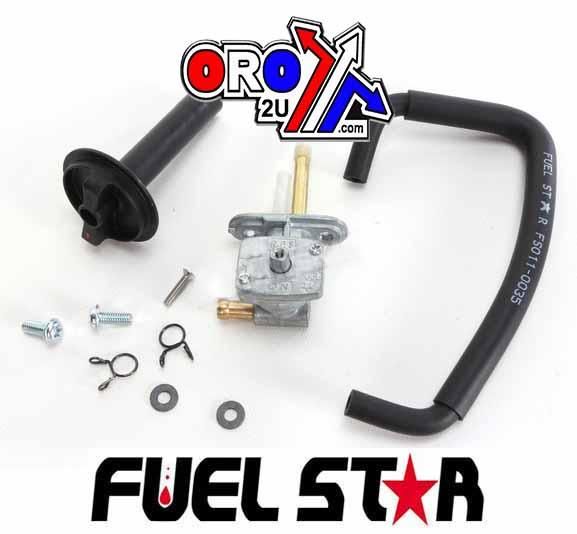

The FS101-0052 Fuel Star Fuel Valve Kit is a complete replacement petcock assembly designed for Yamaha YFM400FA Kodiak 4×4 ATVs and select Big Bear models from 2000 to 2002. This kit includes all necessary components for installation and is built to match original equipment specifications.

Features

• Complete replacement fuel petcock assembly

• Sold each

Specifications

• (1) Fuel valve assembly

• (1) Rubber fuel line

• (2) Fuel line clamps

• (2) 6mm-1.00 x 15mm Phillips washer head bolts

• (2) Mounting spacers

• (1) Plastic on/off fuel knob

• (1) 4mm-.70 x 15mm tapered Phillips head screw

Cross-Reference OEM Part Numbers

• 5GH-24500-00-00 (Fuel Cock Assy)

• 5GH-24500-10-00 (Fuel Cock Assy)

• 4X8-24512-00-00 (O-Ring)

• 98507-03014-00 (Screw, Pan Head)

• 3AJ-24534-00-00 (Seal, Cock)

• 3AJ-24534-01-00 (Seal, Cock)

• 3AJ-24523-00-00 (Valve Packing)

• 3AC-24523-00-00 (Valve Packing)

• 5GH-24524-00-00 (Lever, Cock)

• 1NS-F4524-00-00 (Lever, Cock)

• 98707-04018-00 (Screw, Flat Head)

• 90202-05193-00 (Washer, Plate)

• 90202-05187-00 (Washer, Plate)

• 90149-06011-00 (Screw)

• 5GH-24311-00-00 (Pipe, Fuel 1)

• 90467-10008-00 (Clip)

• 90467-100A1-00 (Clip)

Vehicle Fitments

• 2000 Yamaha YFM400F Big Bear 4×4

• 2000 Yamaha YFM400FA Kodiak 4×4 Ultramatic

• 2001 Yamaha YFM400FA Kodiak 4×4 Ultramatic

• 2002 Yamaha YFM400FA Kodiak 4×4 Ultramatic

• 2000 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Hunter Edition

• 2001 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Hunter Edition

• 2002 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Hunter Edition

• 2000 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Realtree X-Tra

• 2001 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Realtree X-Tra

• 2002 Yamaha YFM400FAH Kodiak 4×4 Ultramatic Realtree X-Tra
