FUEL VALVE KIT YFM350FG Grizzly 4×4, Fuel Star FS101-0039 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

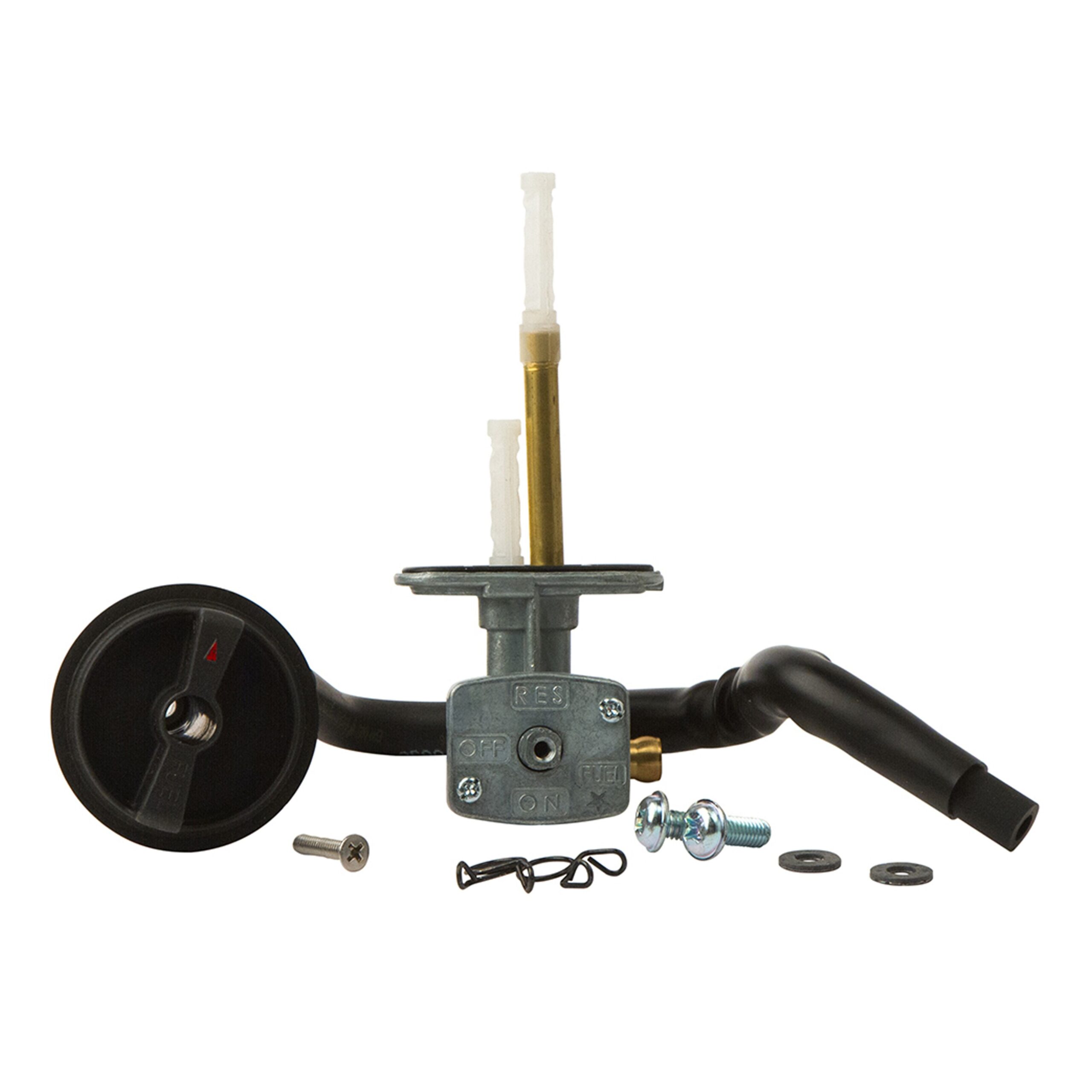

The Fuel Star FS101-0039 Fuel Valve Kit is a complete replacement petcock assembly designed for 2008–2014 Yamaha YFM350 Grizzly 4×4 models, including standard, IRS, and Hunter Edition versions. This kit includes all necessary components for installation and is built to OEM specifications.

Features

• Complete replacement fuel petcock assembly

• Includes fuel line, knob, clamps, bolts, and sealing washers

• Direct-fit design for specified Yamaha ATV models

• Sold individually

Specifications

• (1) Fuel petcock

• (1) Rubber hose

• (1) Black plastic knob

• (2) 6mm sealing washers

• (2) 6mm-1.00 x 15mm flange head bolts

• (1) 4mm-.7 x 16mm flat head bolt

• (2) Wire hose clamps

Cross-Reference OEM Part Numbers

• 5KM-24500-01-00 (Fuel Cock Assy)

• 5KM-24500-10-00 (Fuel Cock Assy)

• 3AC-24523-00-00 (Valve Packing)

• 3AJ-24534-01-00 (Seal, Cock)

• 98507-03014-00 (Screw, Pan Head)

• 4X8-24512-00-00 (O-Ring)

• 5GH-24524-00-00 (Lever, Cock)

• 1NS-F4524-00-00 (Lever, Cock)

• 98702-04018-00 (Screw, Flat Head)

• 90202-05193-00 (Washer, Plate)

• 90202-05187-00 (Washer, Plate)

• 90149-06108-00 (Screw)

• 5UH-24311-00-00 (Pipe, Fuel 1)

• 90467-100A1-00 (Clip)

Vehicle Fitments

• 2008 Yamaha YFM350FG Grizzly 4×4

• 2009 Yamaha YFM350FG Grizzly 4×4

• 2010 Yamaha YFM350FG Grizzly 4×4

• 2011 Yamaha YFM350FG Grizzly 4×4

• 2012 Yamaha YFM350FG Grizzly 4×4

• 2013 Yamaha YFM350FG Grizzly 4×4

• 2014 Yamaha YFM350FG Grizzly 4×4

• 2008 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2009 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2010 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2011 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2012 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2013 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2014 Yamaha YFM350FGH Grizzly 4×4 Hunter Edition

• 2008 Yamaha YFM350FGI Grizzly 4×4 IRS

• 2009 Yamaha YFM350FGI Grizzly 4×4 IRS

• 2010 Yamaha YFM350FGI Grizzly 4×4 IRS

• 2011 Yamaha YFM350FGI Grizzly 4×4 IRS

• 2008 Yamaha YFM350FGIH Grizzly 4×4 IRS Hunter Edition

• 2009 Yamaha YFM350FGIH Grizzly 4×4 IRS Hunter Edition

• 2010 Yamaha YFM350FGIH Grizzly 4×4 IRS Hunter Edition

• 2011 Yamaha YFM350FGIH Grizzly 4×4 IRS Hunter Edition

• 2014 Yamaha YFM350D Grizzly 350 4×4

• 2014 Yamaha YFM350DH Grizzly 350 4×4 Hunter Edition

• 2014 Yamaha YFM350T Grizzly 350 2×4
